Power, Ground, and Serial Data

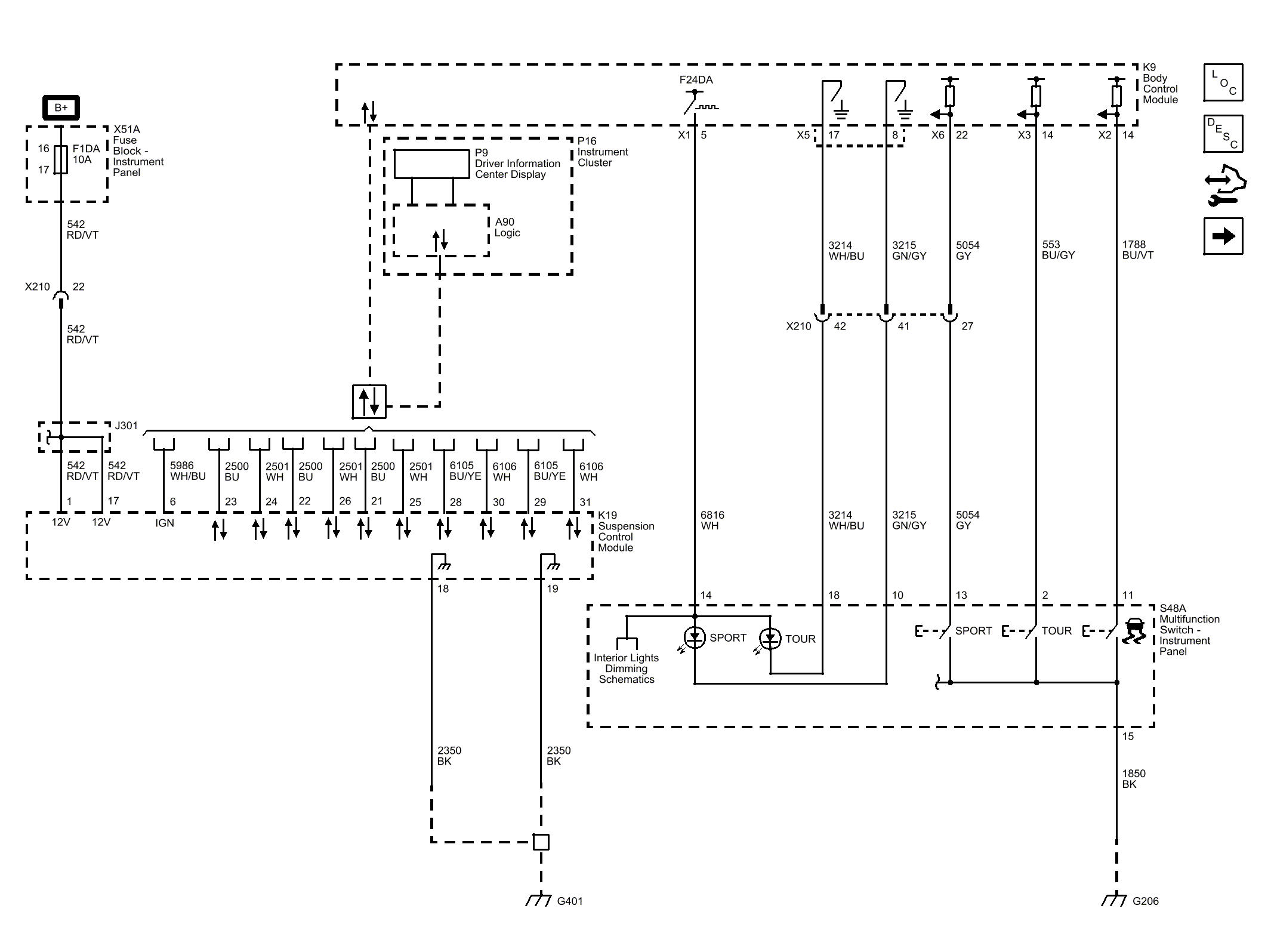

Fig 1: Power, Ground, and Serial Data

GM3770298

Courtesy of GENERAL MOTORS COMPANY
