Electronic Suspension Control Wiring Schematics: Actuators

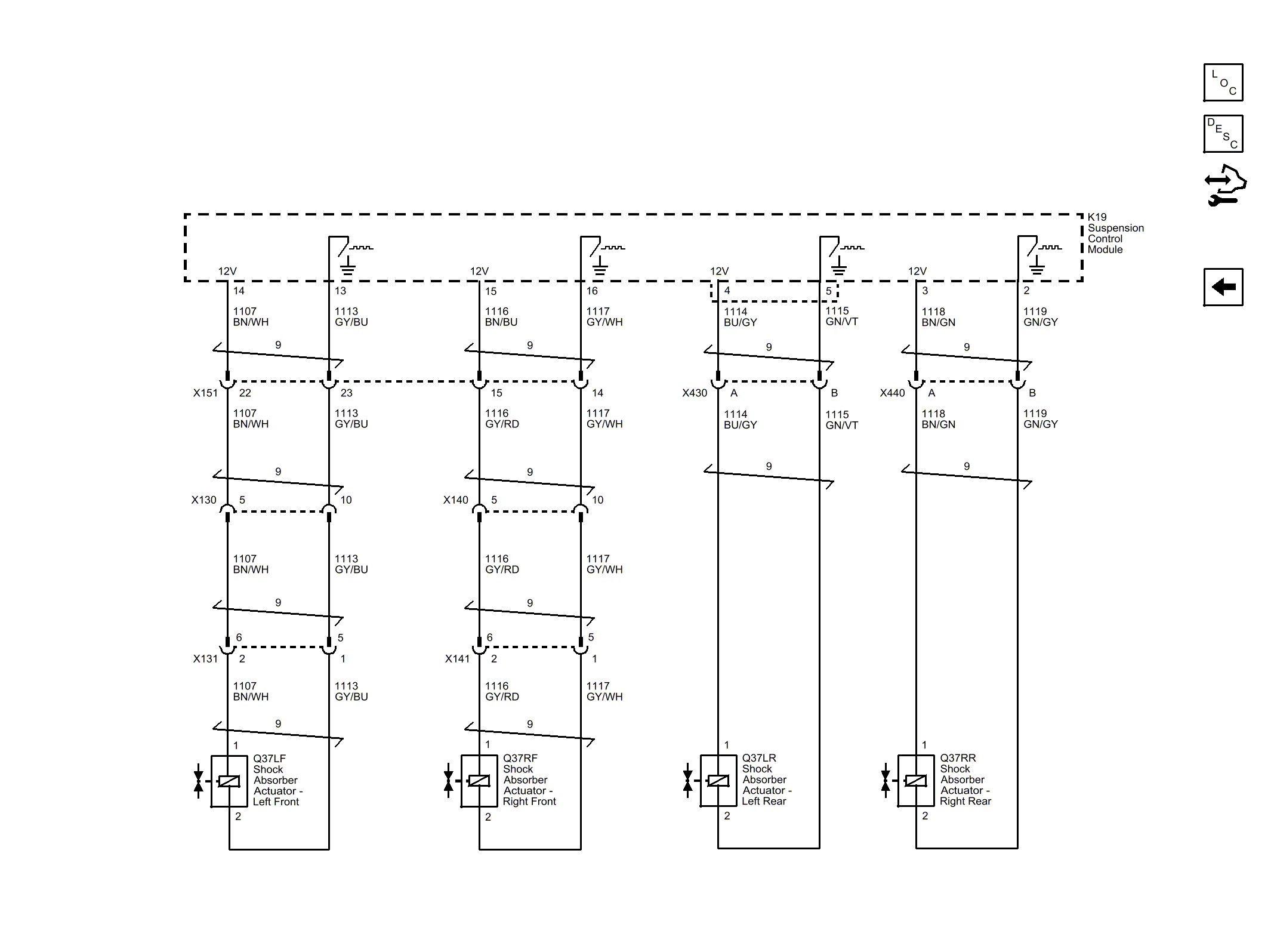

Fig 1: Actuators

GM3770302

Courtesy of GENERAL MOTORS COMPANY
