Electronic Suspension Wheel Front Vertical Accelerometer Replacement - Lower

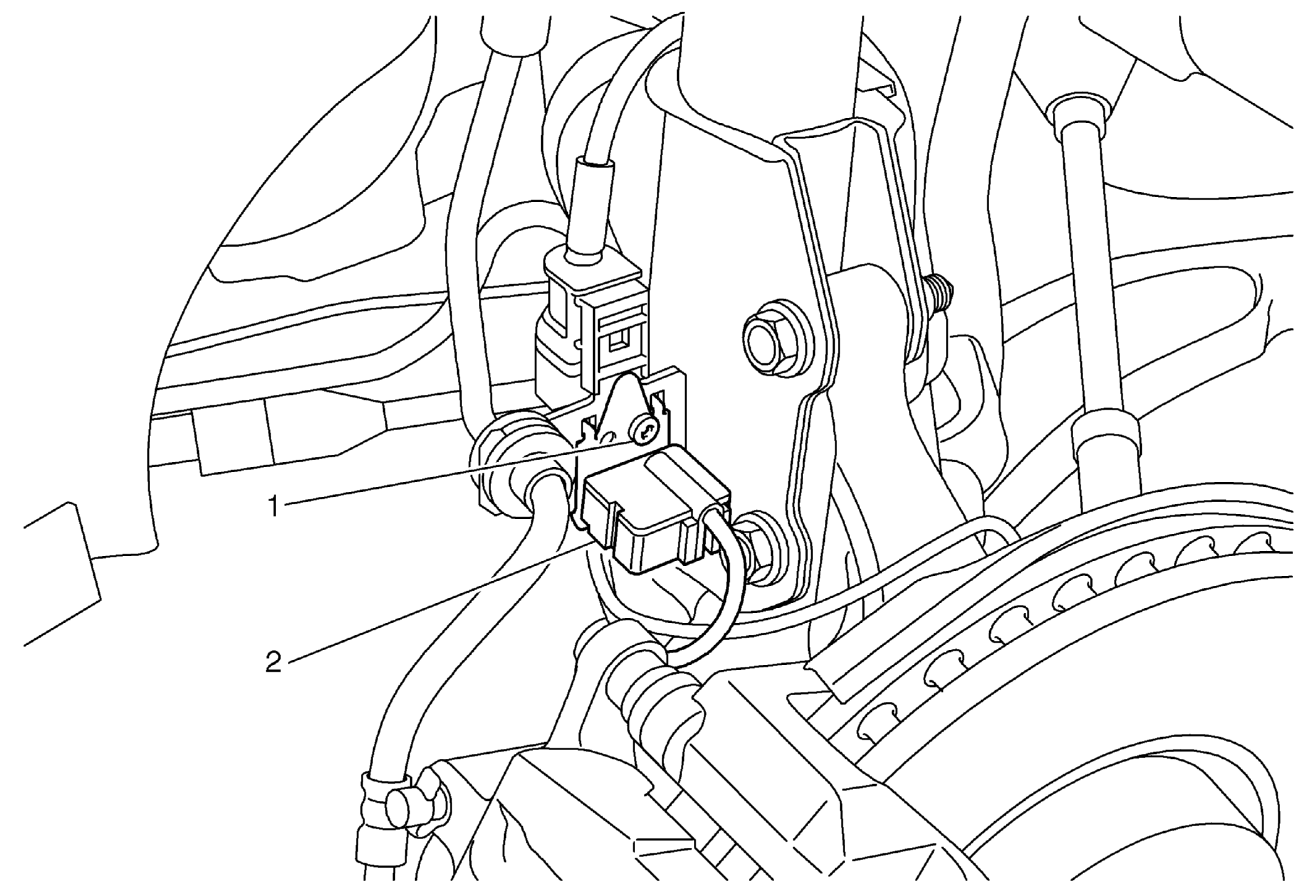

Fig 1: View Of Electronic Suspension Front Vertical Accelerometer - Lower

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front tire and wheel assemblies. Unlock and disconnect the wheel speed sensor harness electrical connector. Refer to Electronic Suspension Position Sensor Front Jumper Harness Disconnection .
1	Electronic Suspension Front Position Sensor Fastener CAUTION: Refer to Fastener Caution Tighten 9 N.m (80 lb in)
2	Electronic Suspension Front Vertical Accelerometer

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front tire and wheel assemblies.
Unlock and disconnect the wheel speed sensor harness electrical connector. Refer to Electronic Suspension Position Sensor Front Jumper Harness Disconnection .

Electronic Suspension Front Position Sensor Fastener

CAUTION:

Tighten
9 N.m (80 lb in)

Electronic Suspension Front Vertical Accelerometer
