Electronic Suspension Body Front Vertical Accelerometer Replacement - Upper

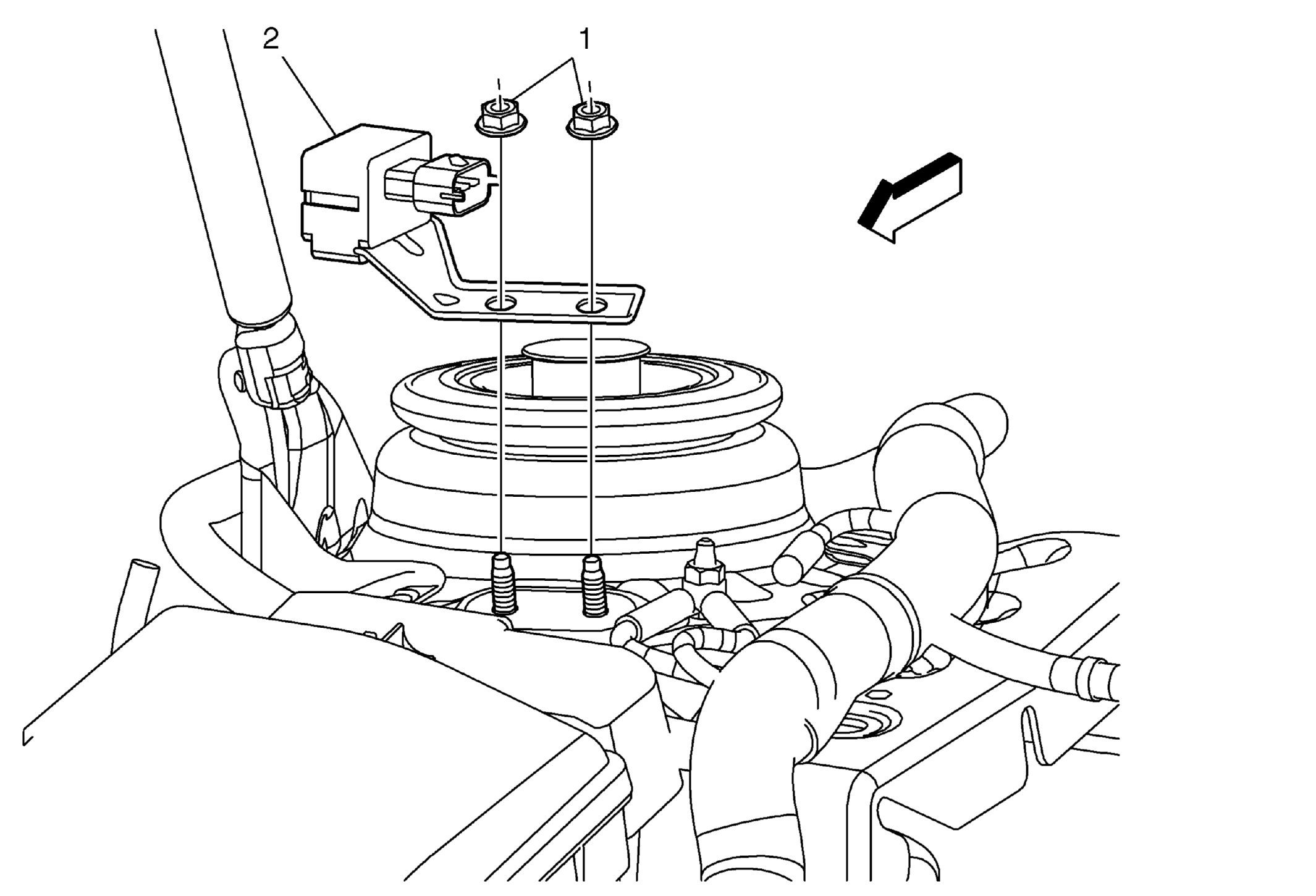

Fig 1: View Of Electronic Suspension Front Vertical Accelerometer - Upper

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Electronic Suspension Front Upper Position Sensor Fasteners (Qty:2) CAUTION: Refer to Fastener Caution Tighten  9 N.m (80 lb in)
2	Electronic Suspension Front Vertical Accelerometer Procedure  Disconnect the connector from the sensor.
