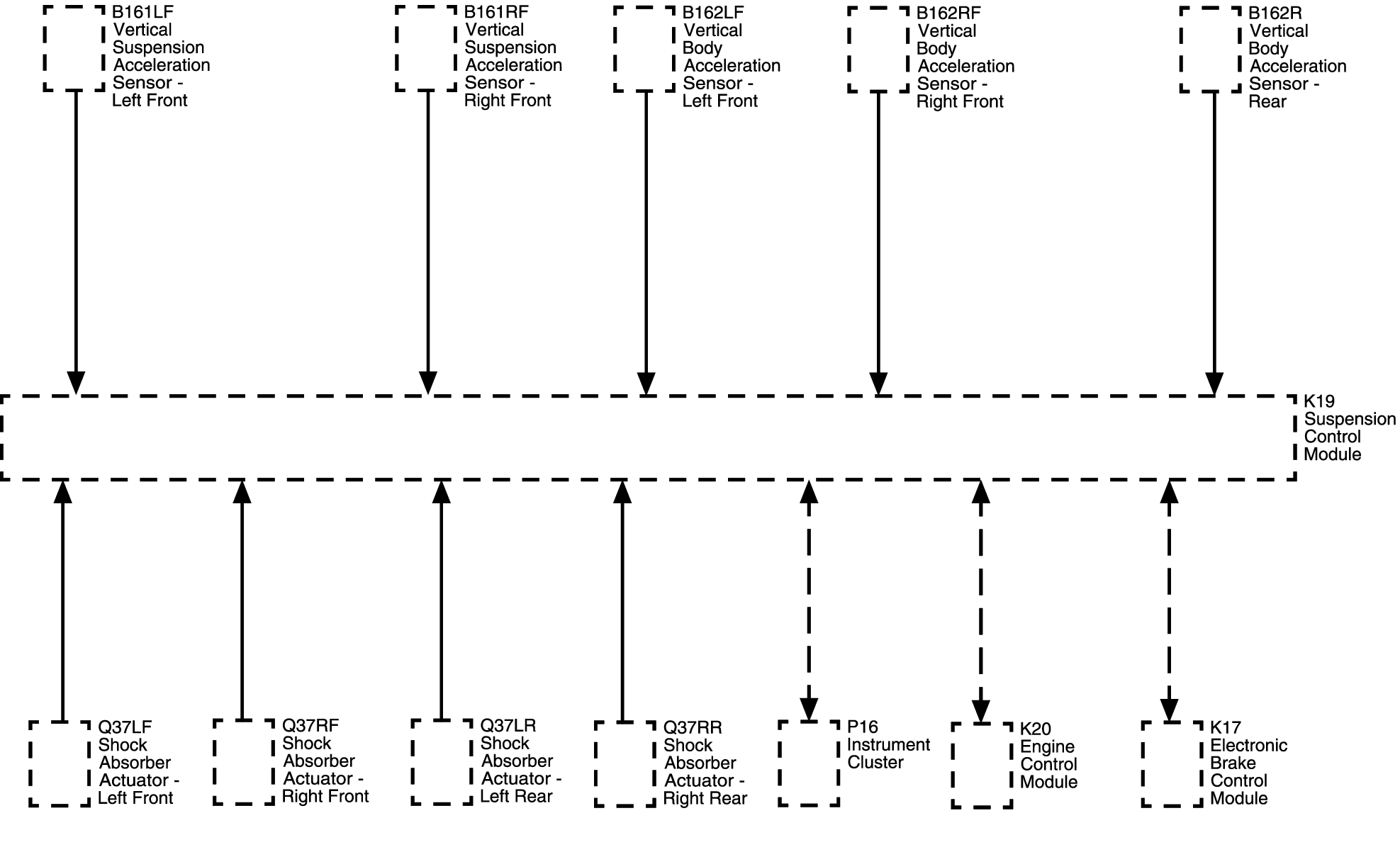

Electronic Suspension Control Description and Operation: Notes
| Callout | Component Name |
|---|---|
| K19 | K19 Suspension Control Module |
| B161LF | B161LF Vertical Suspension Acceleration Sensor - Left Front |
| B161RF | B161RF Vertical Suspension Acceleration Sensor - Right Front |
| B162RF | B162RF Vertical Body Acceleration Sensor - Right Front |
| B162R | B162R Vertical Body Acceleration Sensor - Rear |
| Q37LF | Q37LF Shock Absorber Actuator - Left Front |
| Q37RF | Q37RF Shock Absorber Actuator - Right Front |
| Q37LR | Q37LR Shock Absorber Actuator - Left Rear |
| Q37RR | Q37RR Shock Absorber Actuator - Right Rear |
| P16 | P16 Instrument Cluster |
| K20 | K20 Engine Control Module |
| K17 | K17 Electronic Brake Control Module |
| B162LF | B162LF Vertical Body Acceleration Sensor - Left Front |
The electronic suspension control system, individually controls the damping force of each of the 4 shock absorbers in order to keep the vehicle body as calm as possible. Changes of the damping forces can be accomplished within milliseconds. Suspension characteristics can be changed at any time by activating the sport mode or tour mode.
The electronic suspension control system consists of the following major components:
- The suspension control module
- Three body vertical acceleration sensors
- Two front wheel vertical acceleration sensors
- Four shock absorber actuators, which are integrated within the shock absorbers
The suspension control module controls the damping forces according to the following factors:
- Vehicle speed
- Steering wheel position
- Engine torque
- Brake pressure
- Body and front wheels vertical acceleration
The suspension control module evaluates these inputs in order to separately control the shock absorbers, providing an enhanced ride and comfort level over the widest possible range of operating conditions.
