Steering Wheel Spoke Lower Cover Replacement (Except Grand Sport)

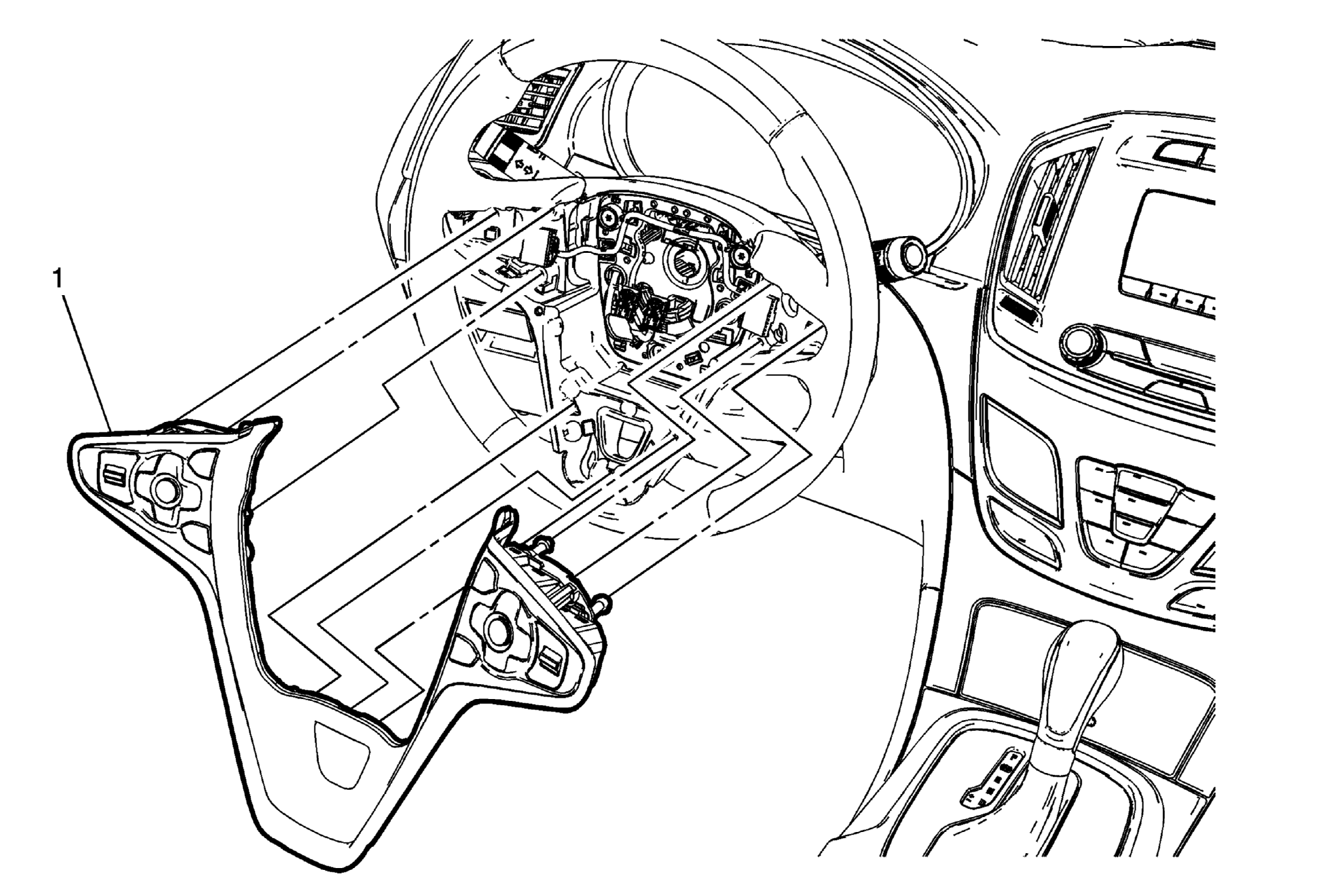

Fig 1: Steering Wheel Spoke Lower Cover (Except Grand Sport)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the airbag steering wheel module. Refer to Airbag Steering Wheel Module Replacement .
1	Steering Wheel Spoke Lower Cover Procedure Use the appropriate tool to gently release the retaining tabs on the cover. Disconnect the electrical connections. NOTE: Gently release tabs one by one, using care to avoid snapping the tab off.

Callout

Component Name

Preliminary Procedure
Remove the airbag steering wheel module. Refer to Airbag Steering Wheel Module Replacement .

Steering Wheel Spoke Lower Cover

Procedure

NOTE:

Gently release tabs one by one, using care to avoid snapping the tab off.
