Steering Column Dash Inner Seal Replacement

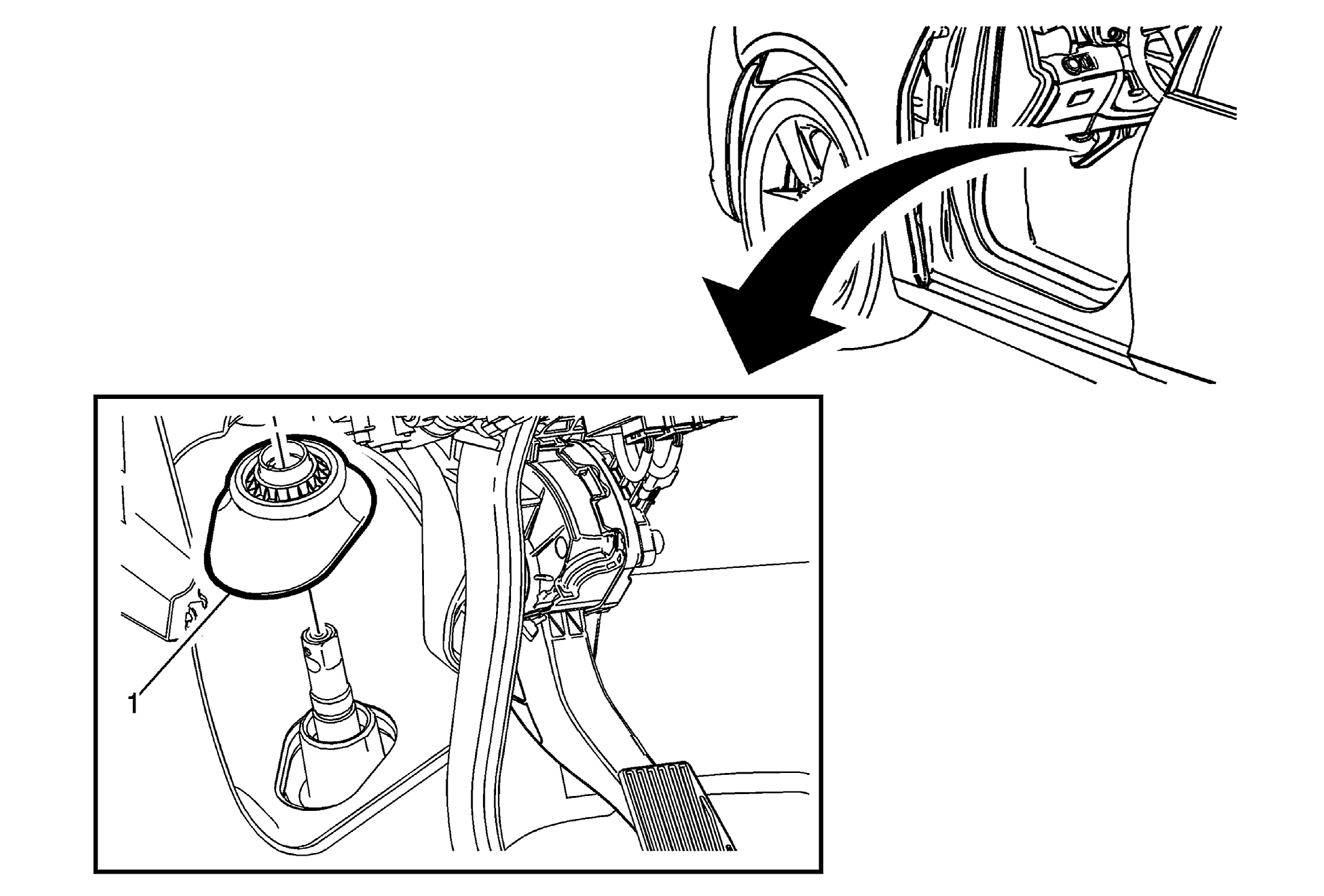

Fig 1: Steering Column Dash Inner Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Intermediate Steering Shaft and Steering Gear - Separate Intermediate Steering Shaft Replacement
1	Steering Column Dash Inner Seal Procedure  Position the steering column dash inner seal over the steering gear and on the dash panel. Ensure the lip on the seal is positioned correctly.
