Rear Seat Center Retractor Side Belt Replacement

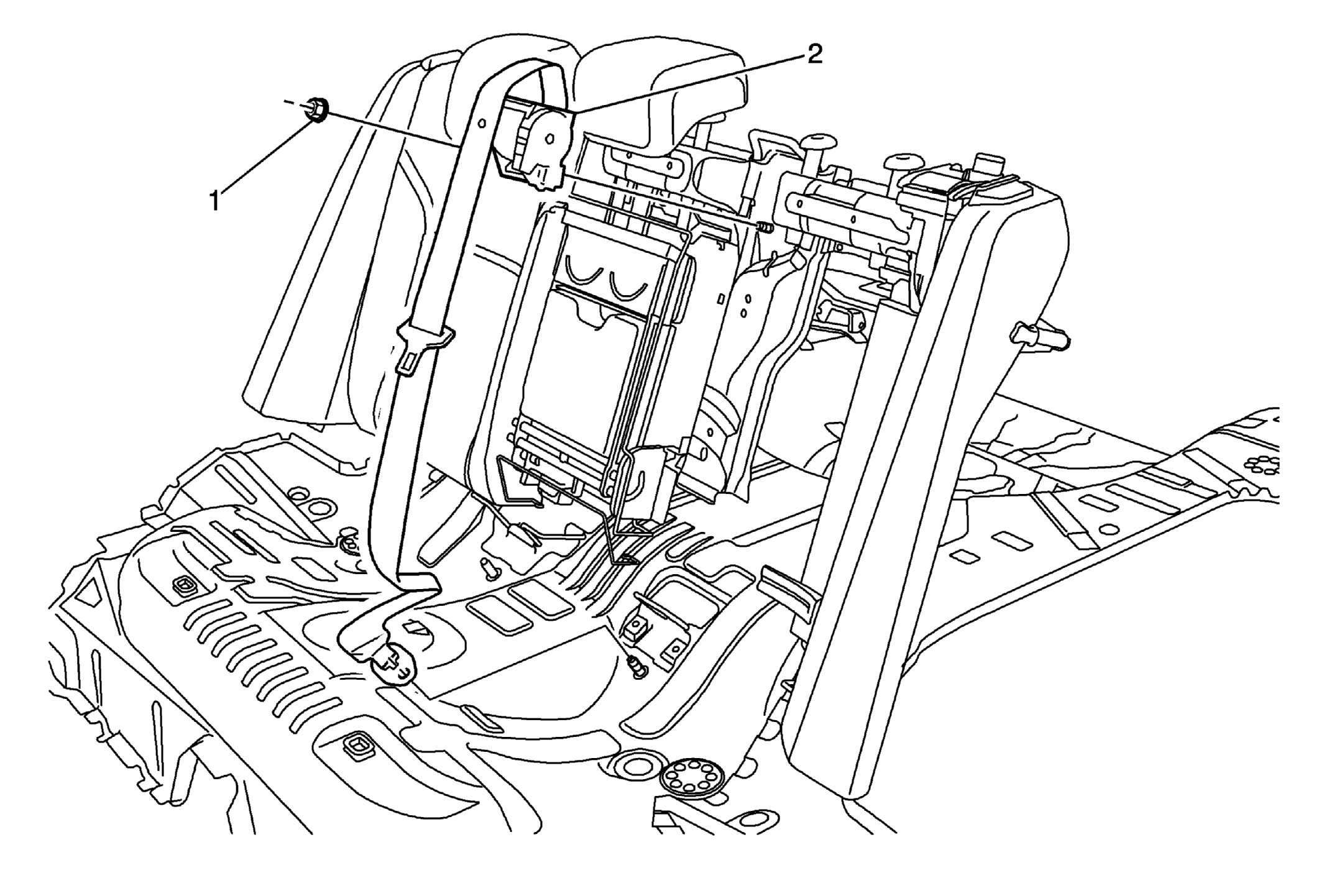

Fig 1: Rear Seat Center Retractor Side Belt & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat belt buckle. Refer to Rear Seat Buckle Side Belt Replacement . Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement . Release the rear seat center shoulder belt retractor bracket.
1	Rear Seat Center Retractor Side Belt Fastener (Qty:2) CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Center Retractor Side Belt

Callout

Component Name

Preliminary Procedures

Remove the rear seat belt buckle. Refer to Rear Seat Buckle Side Belt Replacement .
Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement .
Release the rear seat center shoulder belt retractor bracket.

Rear Seat Center Retractor Side Belt Fastener (Qty:2)

CAUTION:

Tighten
45 N.m (33 lb ft)

Rear Seat Center Retractor Side Belt
