Rear Seat Belt Retractor Replacement

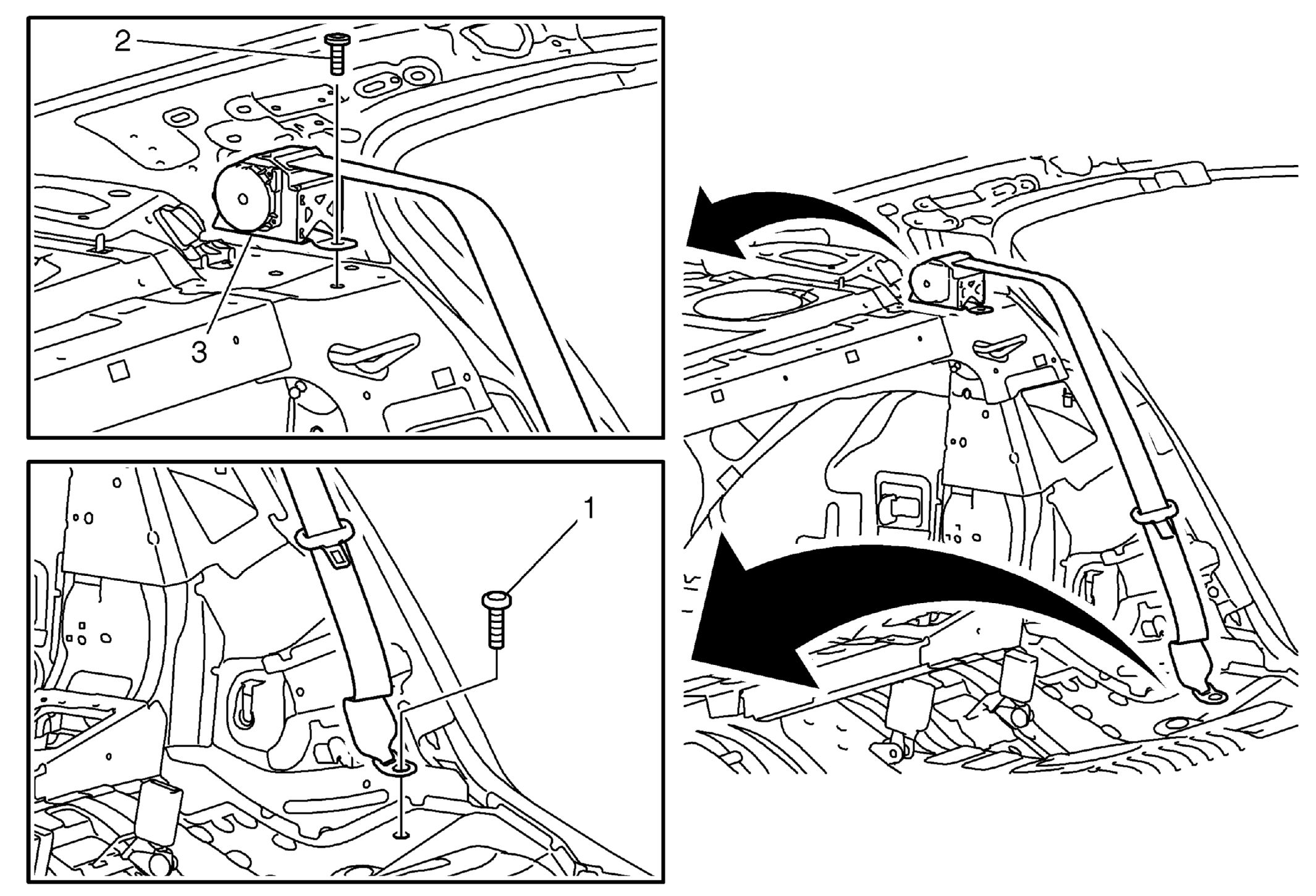

Fig 1: Rear Seat Retractor Side Belt & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the body lock pillar upper trim panel. Refer to Body Lock Pillar Upper Trim Panel Replacement . Remove the rear seat cushion. Refer to REAR SEAT CUSHION REMOVAL AND INSTALLATION .
1	Rear Seat Belt Retractor Bracket Fastener CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Belt Retractor Fastener NOTE: When replacing the retractor a new self cutting screw is mandatory. Tighten 45 N.m (33 lb ft)
3	Rear Seat Belt Retractor
