Side Impact Sensors, Seat and Roof Rail Air Bags

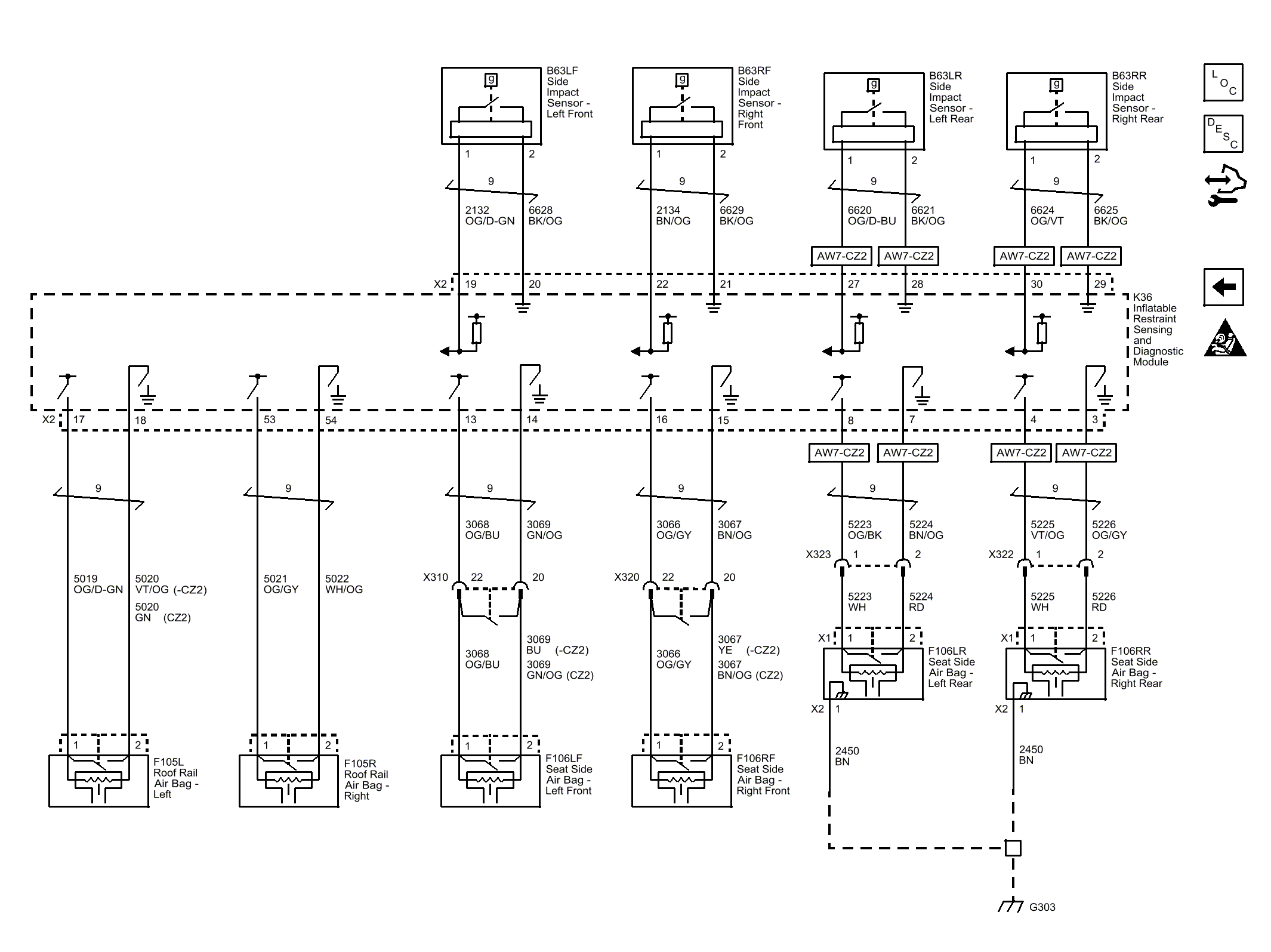

Fig 1: Side Impact Sensors, Seat and Roof Rail Air Bags

GM3770224

Courtesy of GENERAL MOTORS COMPANY
