Power, Ground, Serial Data, Indicators, Passenger Presence, and Subsystem References

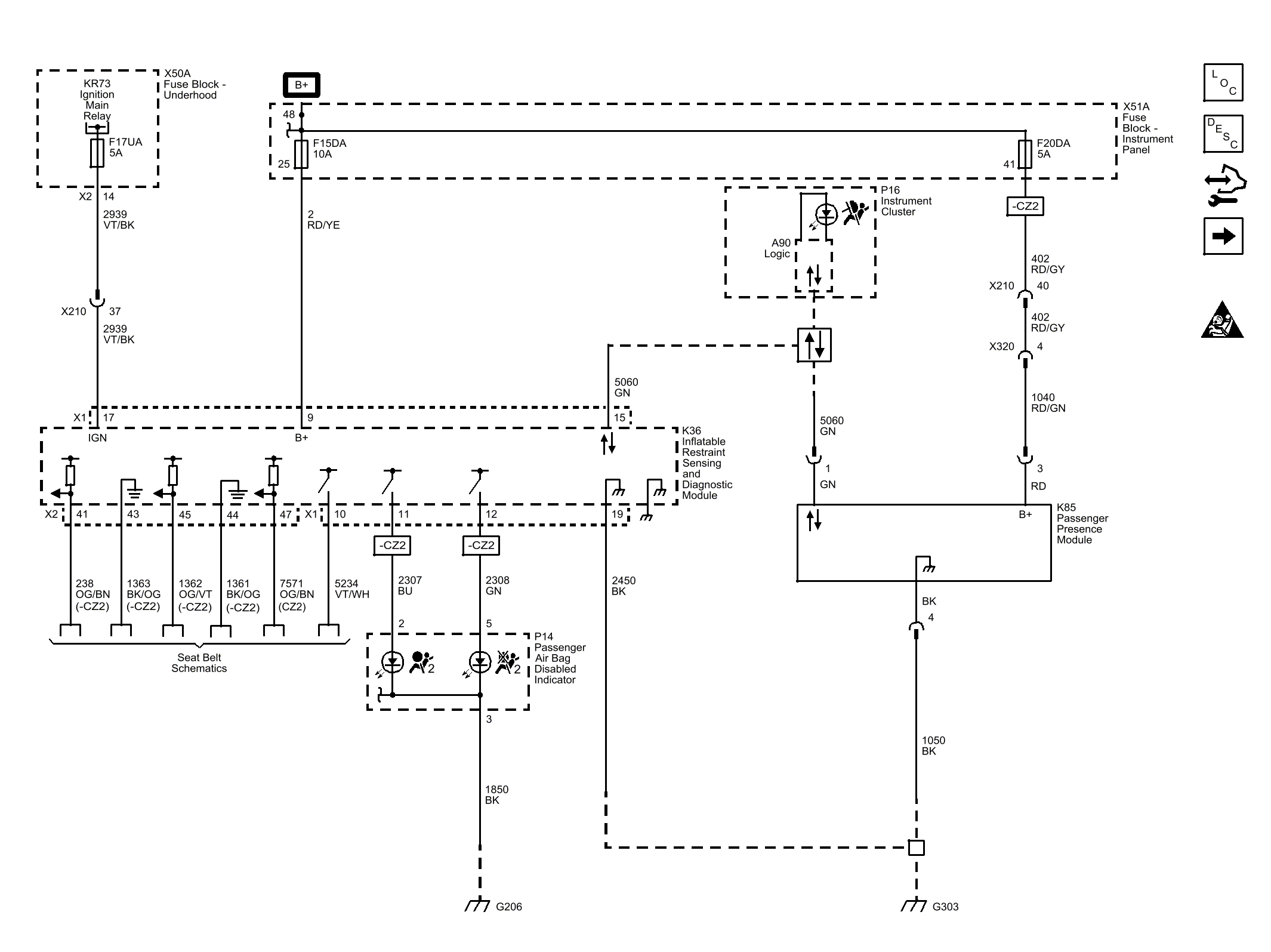

Fig 1: Power, Ground, Serial Data, Indicators, Passenger Presence, and Subsystem References
GM3770217Courtesy of GENERAL MOTORS COMPANY
