Front Impact Sensors, Air Bags, and Pretensioners

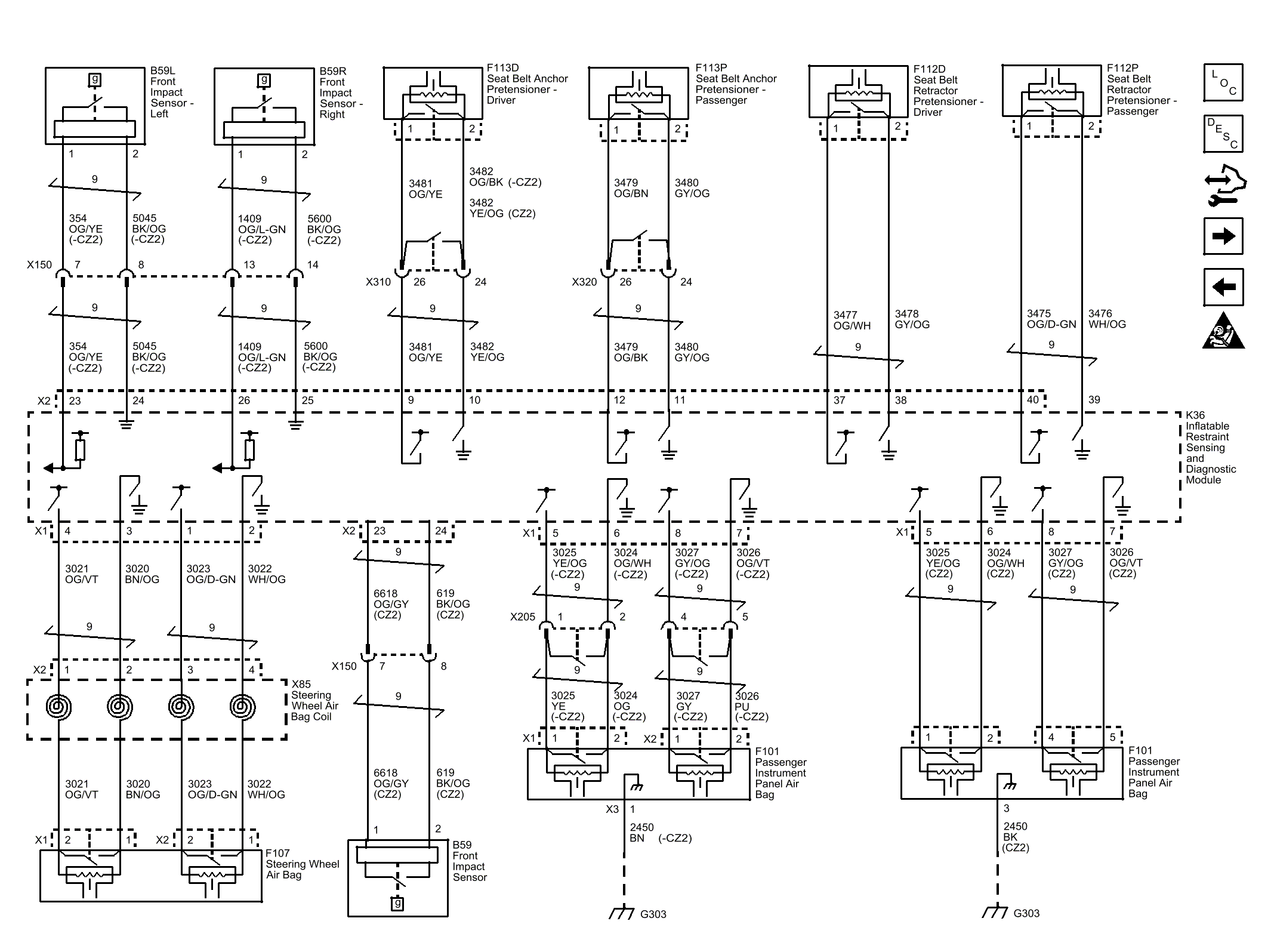

Fig 1: Front Impact Sensors, Air Bags, and Pretensioners

GM3770220

Courtesy of GENERAL MOTORS COMPANY
