Receiver and Dehydrator Replacement

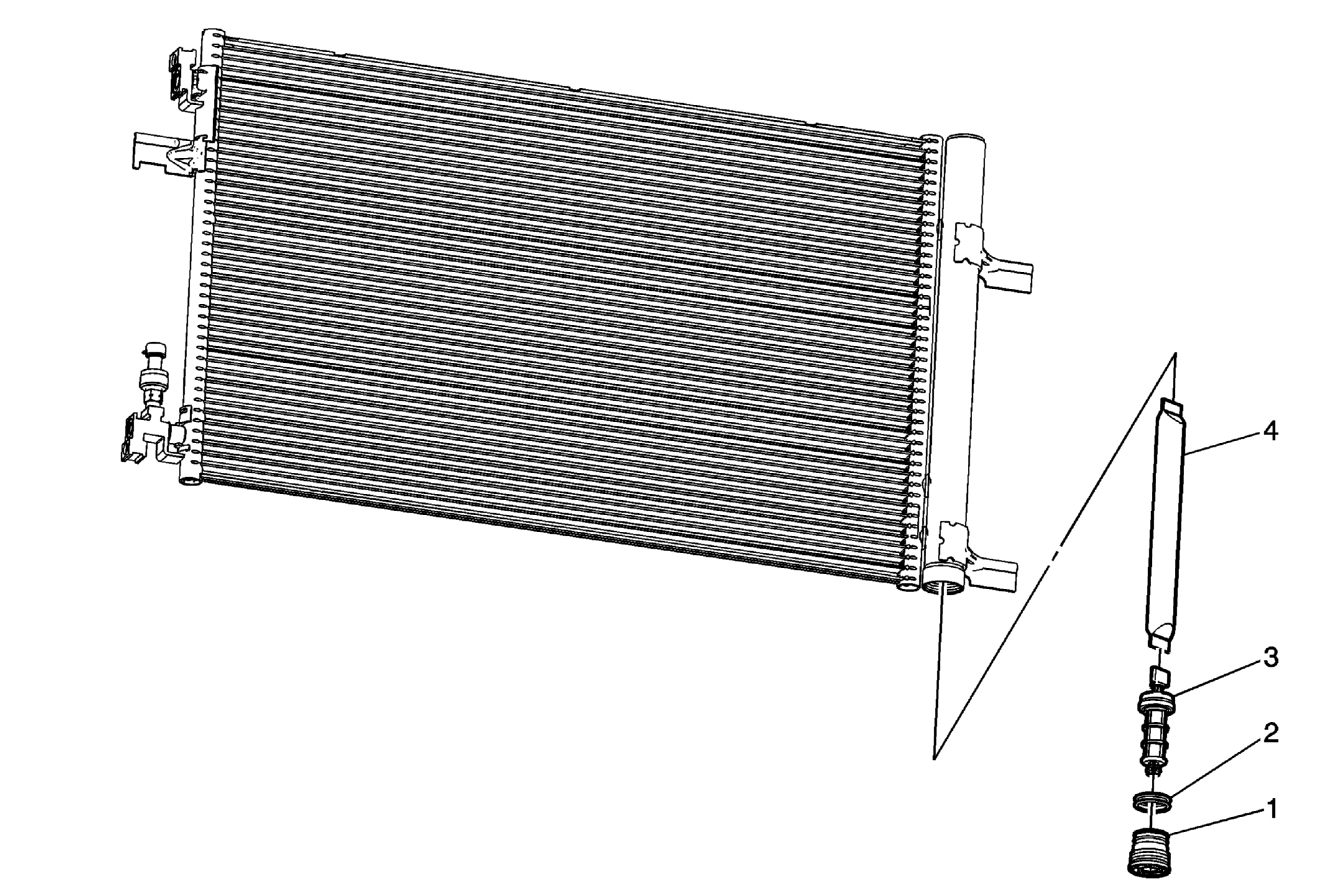

Fig 1: Receiver And Dehydrator
GM2211423Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Recover the refrigerant from the air conditioning system. Refer to Refrigerant Recovery and Recharging .
  2. Support the left side of the condenser and radiator assembly with mechanics wire or equivalent.
  3. Remove the left radiator support bracket. Refer to Radiator Support Bracket Replacement .
1 Receiver and Dehydrator Plug
CAUTION:

Refer to Fastener Caution .


Tighten
12 N.m (9 lb ft)
2 Receiver and Dehydrator O-Ring
3 A/C Refrigerant Filter
4 A/C Refrigerant Dryer
