Instrument Panel Outer Air Outlet Deflector Replacement - Left Side

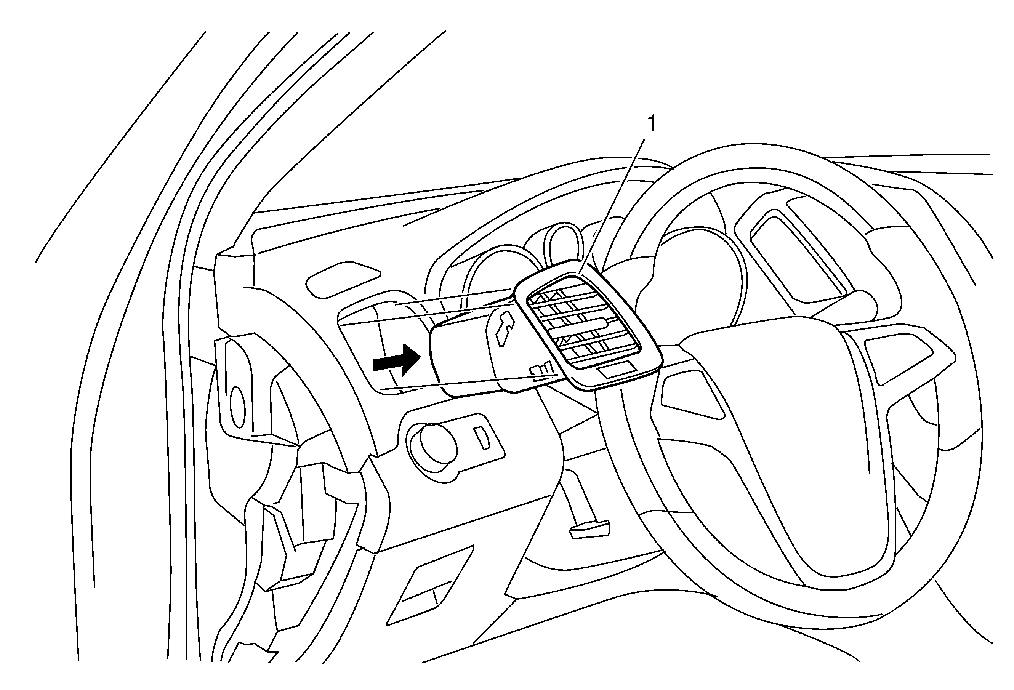

Fig 1: Instrument Panel Outer Air Outlet Deflector - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the instrument panel outer trim cover. Lower center trim panel. Refer to Instrument Panel Outer Trim Cover Replacement - Left Side .
1	Instrument Panel Outer Air Outlet Deflector Procedure  Push out the air outlet deflector housing from behind.
