Heater Core Outlet Tube Replacement

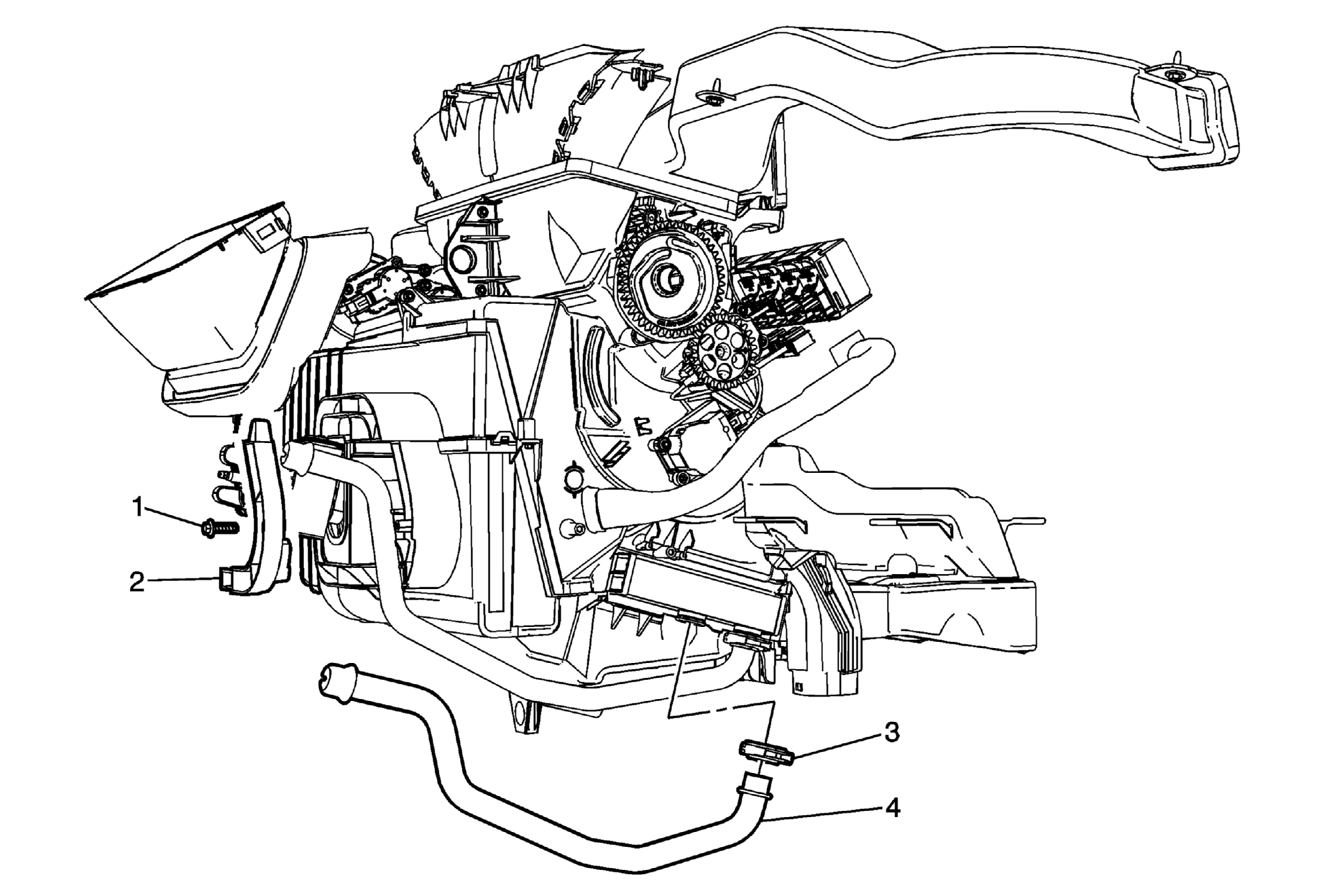

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the heater and air conditioning evaporator case. Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation . |
|
| 1 | Bracket Heater Core Outlet Tube Bolt
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (23 lb in) |
| 2 | Heater Core Outlet Tube Brace |
| 3 | Heater Core Outlet Tube Clamp |
| 4 | Heater Core Outlet Tube |
