Auxiliary Heater Outlet Hose Replacement (LUK)

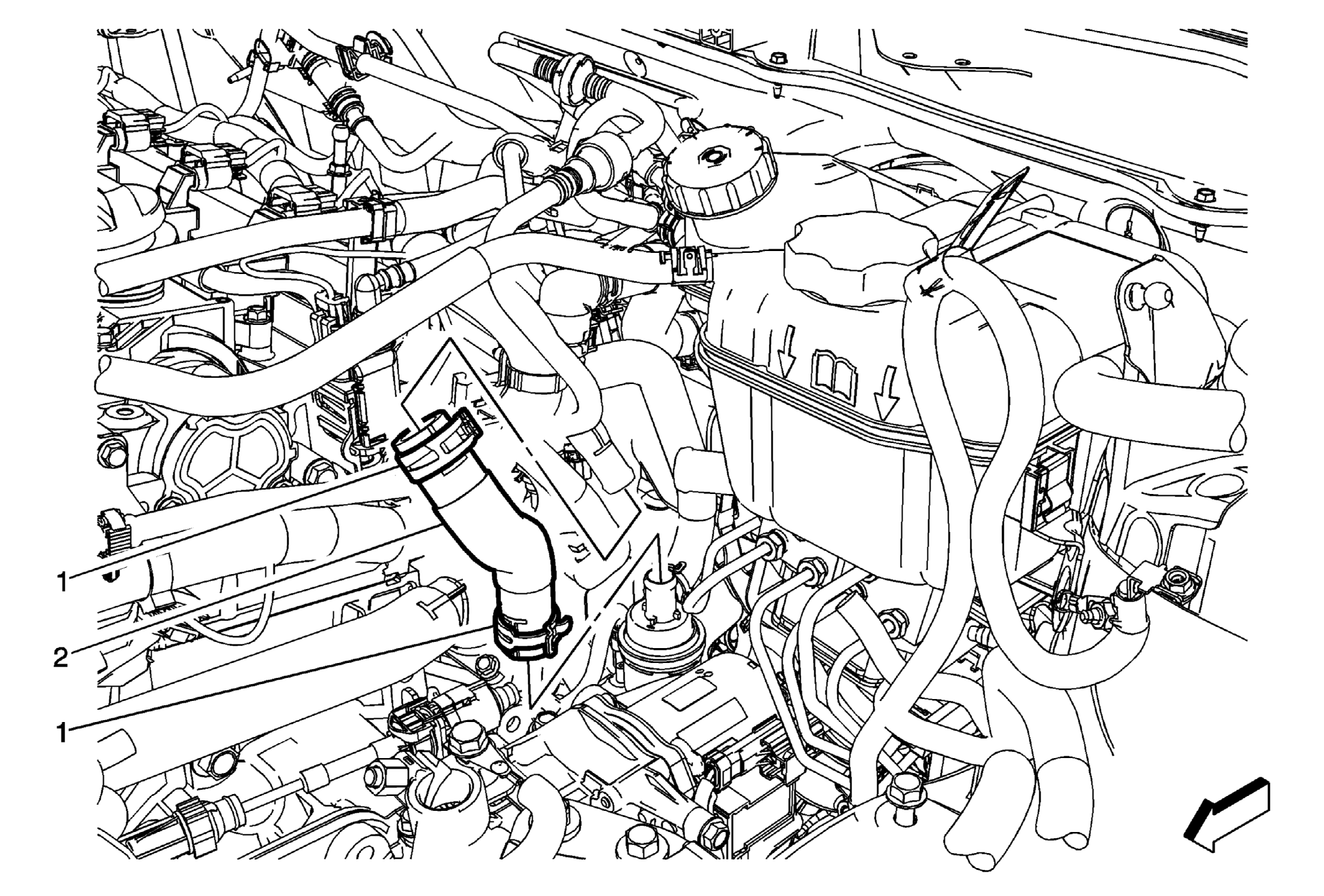

Fig 1: Auxiliary Heater Outlet Hose (LUK)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
1	Auxiliary Heater Outlet Hose Clamps Procedure  Reposition the heater outlet hose clamp using BO-38185  Hose Clamp Pliers. Special Tools  BO-38185  Hose Clamp Pliers For equivalent regional tools, refer to Special Tools .
2	Auxiliary Heater Outlet Hose
