Air Conditioning Refrigerant Desiccant Replacement (LTG)

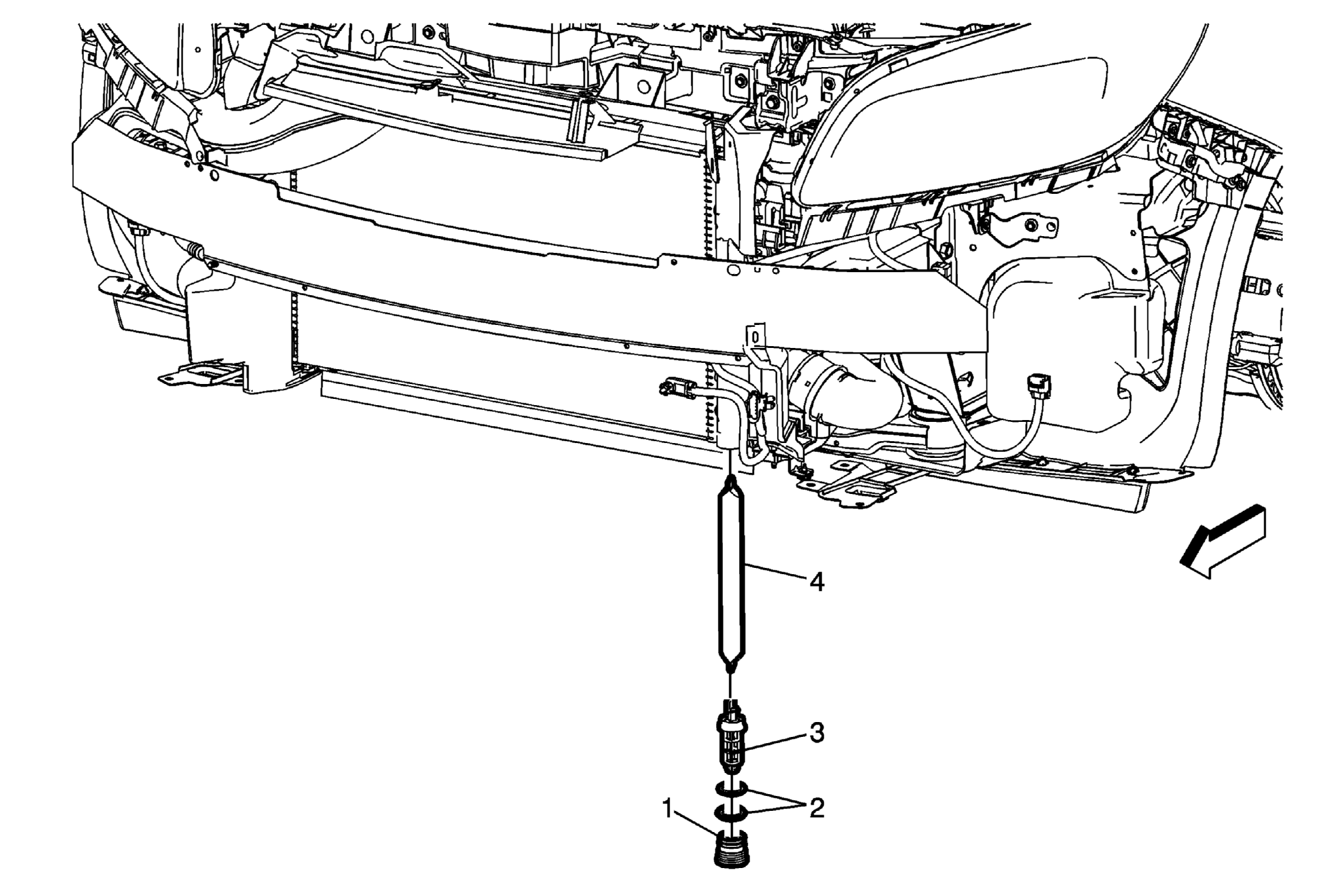

Fig 1: Air Conditioning Refrigerant Desiccant (LTG)
GM2870598Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Receiver and Dehydrator Plug
CAUTION:

Refer to Fastener Caution .


Tighten
12 N.m (9 lb ft)
2 Receiver and Dehydrator O-ring (Qty:2)
3 Air Conditioning Refrigerant Filter
4 Air Conditioning Refrigerant Desiccant
