Removal Procedure

  1. Disassemble the A/C refrigerant components. Refer to the appropriate repair procedure
    2. NOTE:

    Cap or tape the open A/C refrigerant components immediately to prevent system contamination.

  2. Cap or tape the A/C refrigerant components.

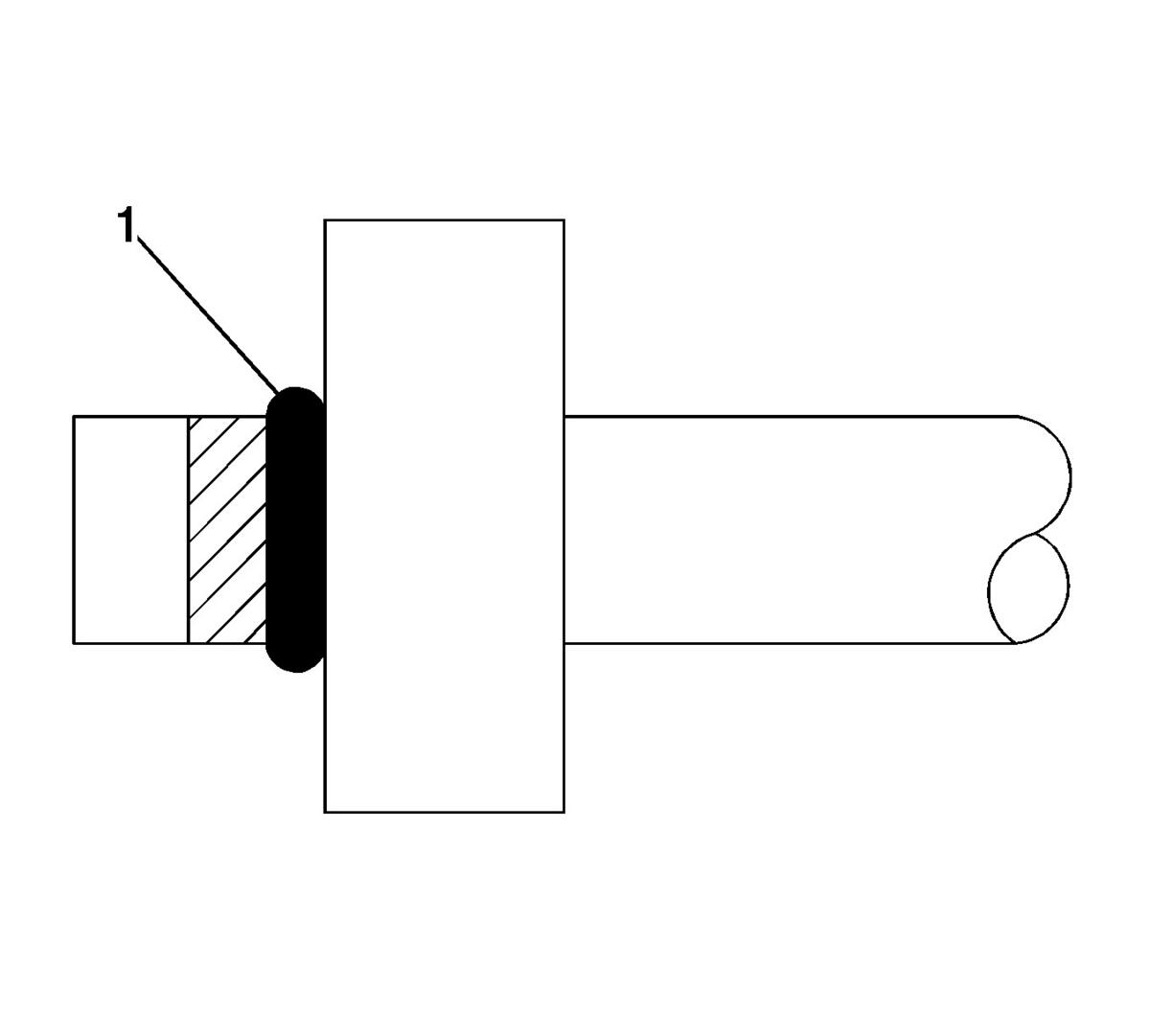

    3. Fig 1: O-ring seal
    GM2611417Courtesy of GENERAL MOTORS COMPANY
  3. Remove the O-ring seal (1) from the A/C refrigerant component.
  4. Inspect the O-ring seal for signs of damage to help determine the root cause of the failure.
  5. Inspect the A/C refrigerant components for damage or burrs. Repair if necessary.
  6. DISCARD the O-ring seal.
