Air Conditioning Compressor Heat Shield Replacement (LTG)

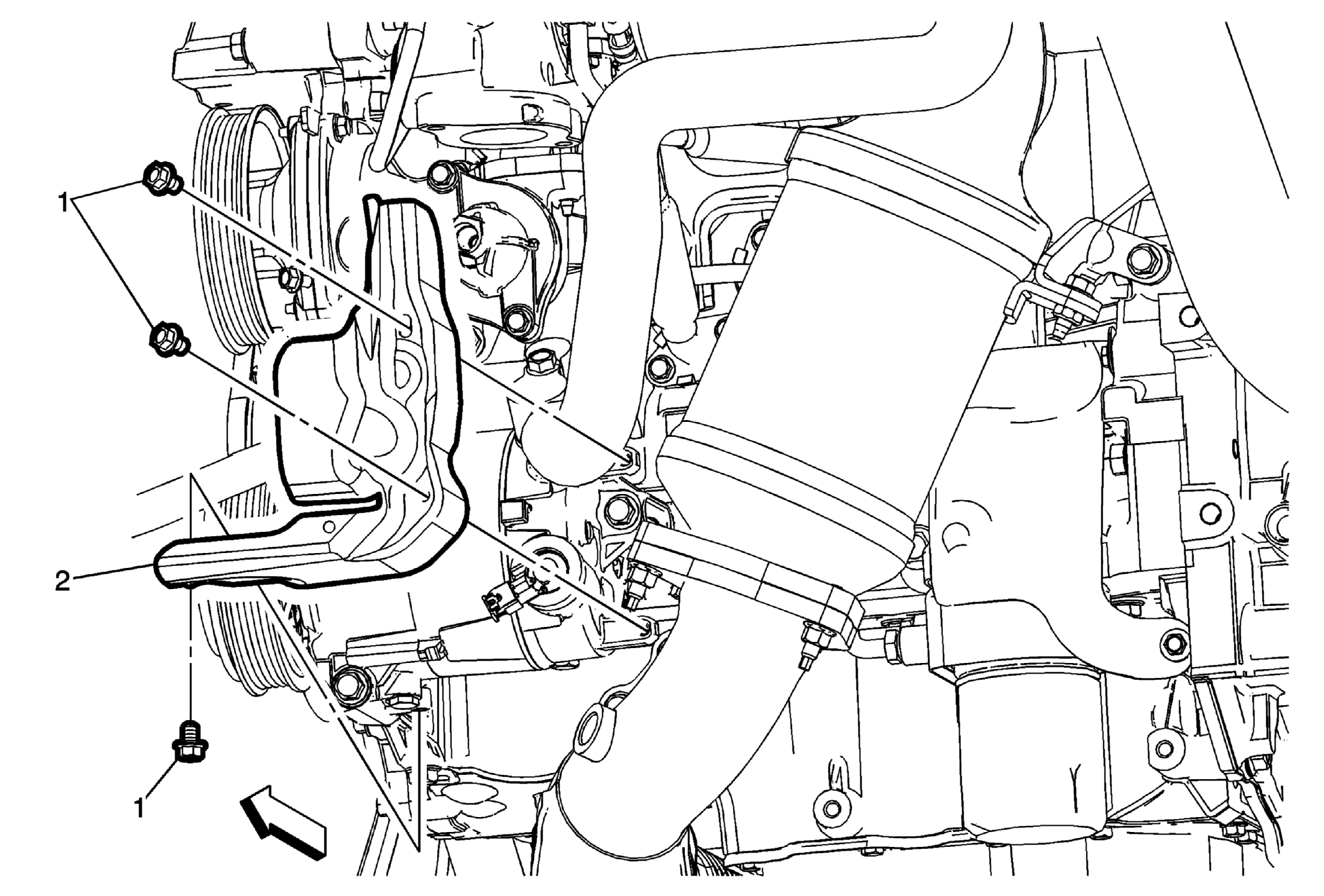

Fig 1: Air Conditioning Compressor Heat Shield (LTG)
GM2871041Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 A/C Compressor Heat Shield Bolt (Qty:3)
CAUTION:

Refer to Fastener Caution .


Tighten
7.5 N.m (66 lb in)
2 A/C Compressor Heat Shield
