Temperature Sensors and Compressor Controls

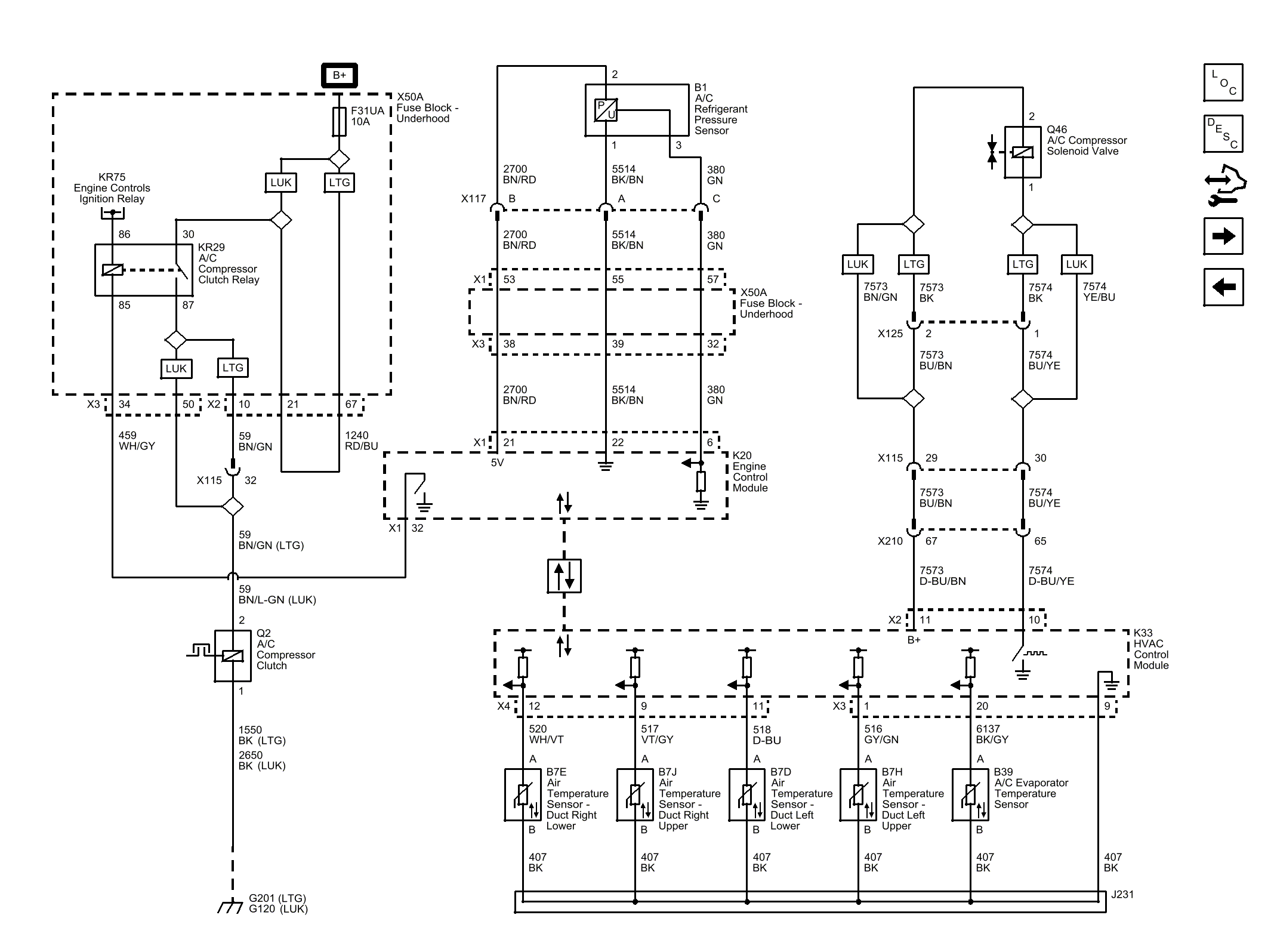

Fig 1: Temperature Sensors and Compressor Controls

GM3769673

Courtesy of GENERAL MOTORS COMPANY
