Power, Ground, Serial Data, HVAC and Blower Controls

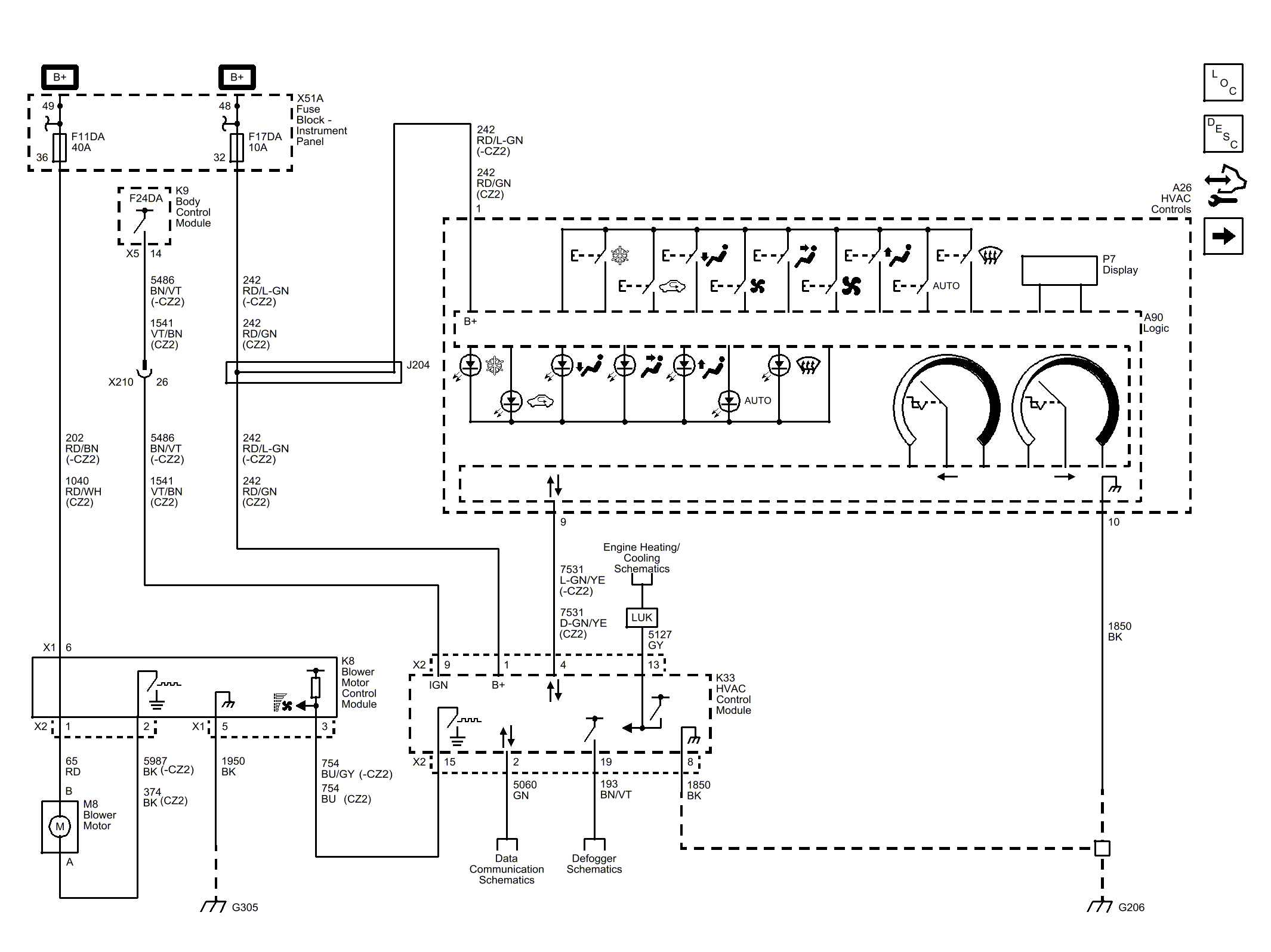

Fig 1: Power, Ground, Serial Data, HVAC and Blower Controls

GM3769670

Courtesy of GENERAL MOTORS COMPANY
