Ambient Light/Sunload and Windshield Sensors

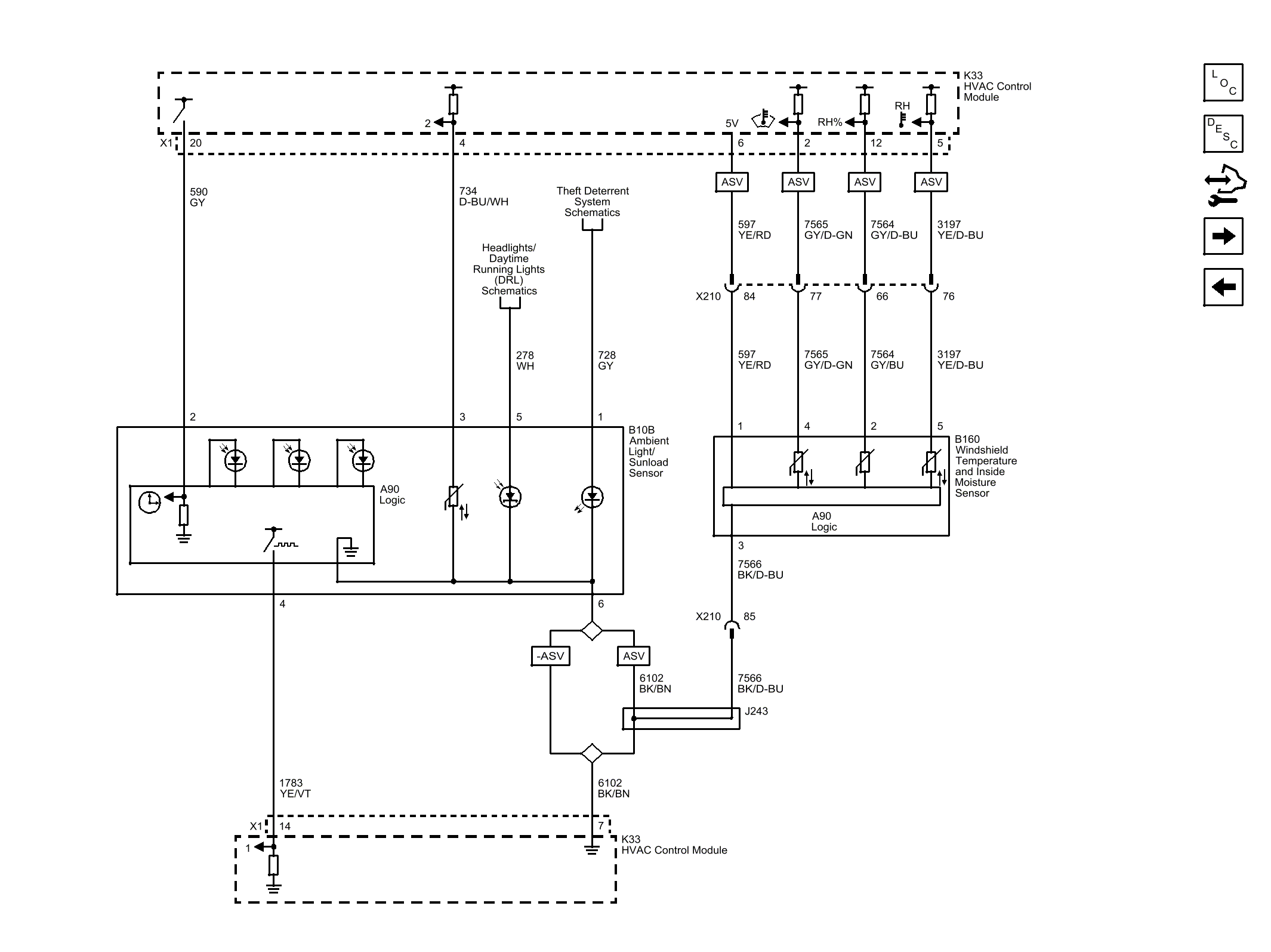

Fig 1: Ambient Light/Sunload and Windshield Sensors

GM3769677

Courtesy of GENERAL MOTORS COMPANY
