Air Delivery and Temperature Controls (CZ2)

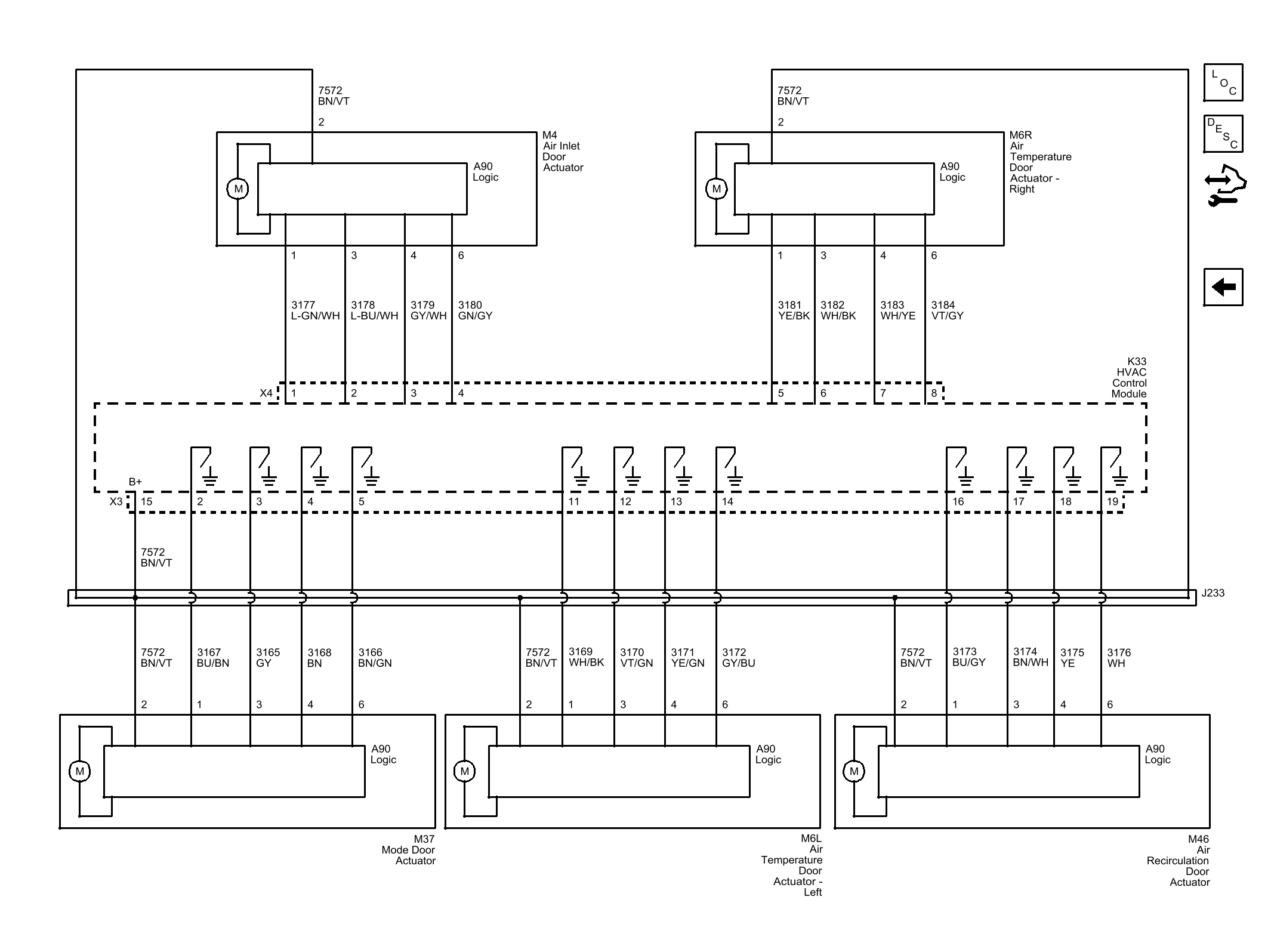

Fig 1: Air Delivery and Temperature Controls (CZ2)

GM3769701

Courtesy of GENERAL MOTORS COMPANY
