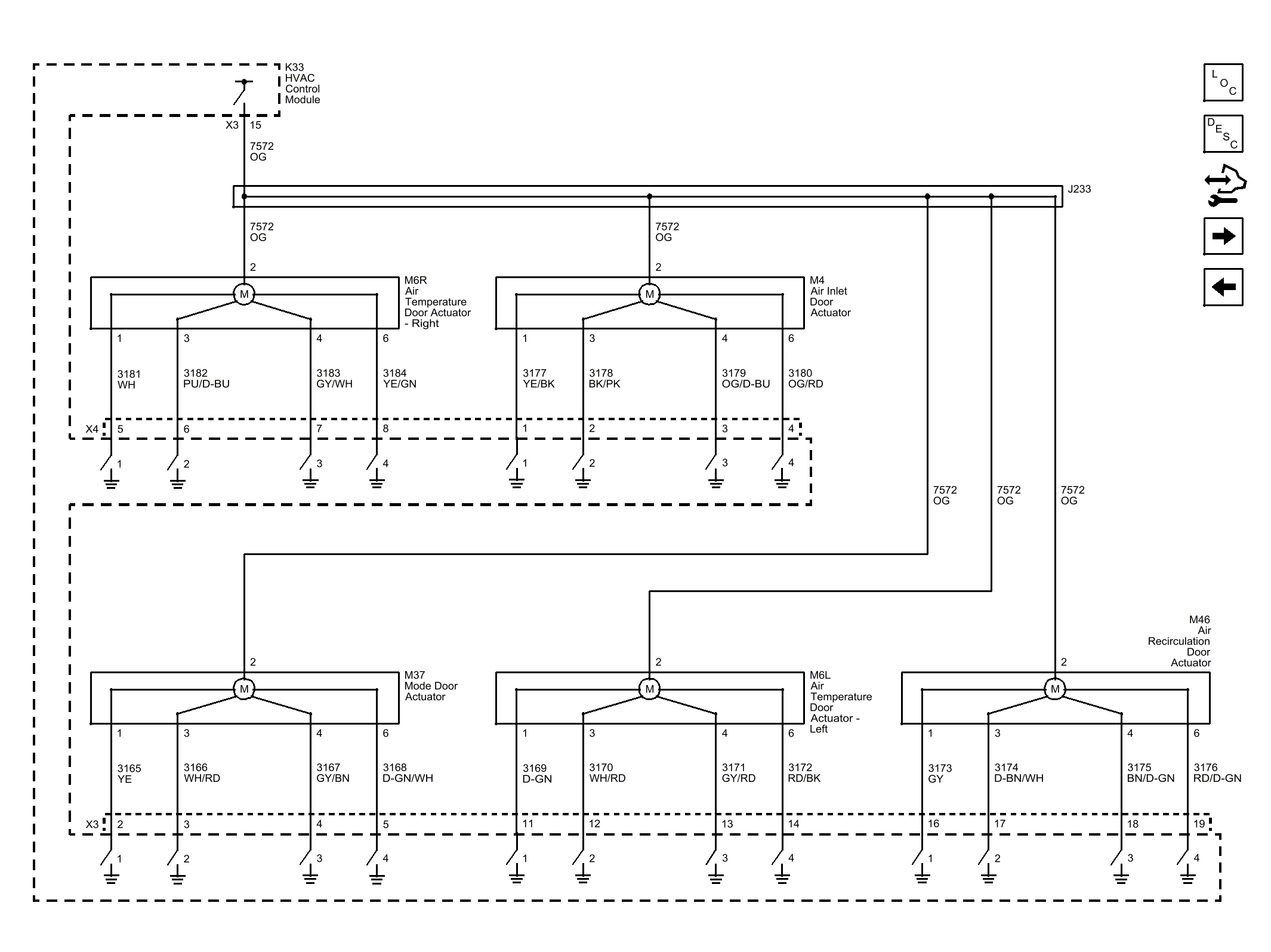

Home >> Buick >> 2015 >> Regal GS, AWD >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> HVAC System - Automatic >> Schematic Wiring Diagrams >> HVAC Wiring Schematics >> Air Delivery and Temperature Control
