Inside Air Moisture and Windshield Temperature Sensor Replacement (ASV)

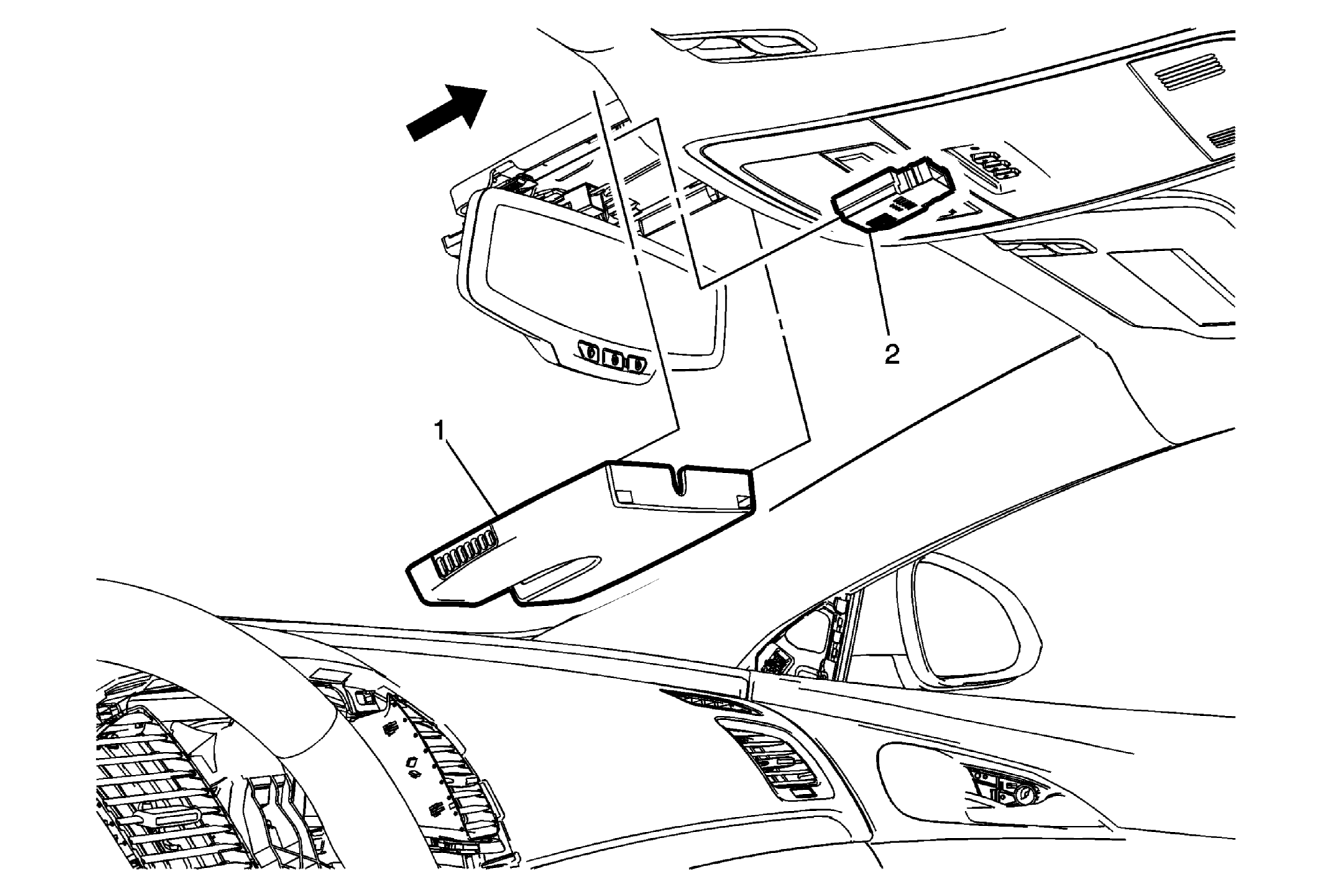

Fig 1: Inside Air Moisture and Windshield Temperature Sensor (ASV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Inside Rear view Mirror Mount Plate Cover Procedure Unsnap the inside rear view mirror mount plate cover from the windshield inside rear view mirror cover bracket.
2	Inside Air Moisture and Windshield Temperature Sensor Procedure Disconnect the electrical connector. Pull down the inside air moisture and windshield temperature sensor out slightly, and slide out from the inside rear view mirror cover bracket.

Callout

Component Name

Inside Rear view Mirror Mount Plate Cover
Procedure
Unsnap the inside rear view mirror mount plate cover from the windshield inside rear view mirror cover bracket.

Inside Air Moisture and Windshield Temperature Sensor

Procedure

Disconnect the electrical connector.
Pull down the inside air moisture and windshield temperature sensor out slightly, and slide out from the inside rear view mirror cover bracket.
