Ignition Controls - Camshaft, Crankshaft, and Knock Sensors, Camshaft Actuators

WARNING: This page is about a different variant/trim than selected.

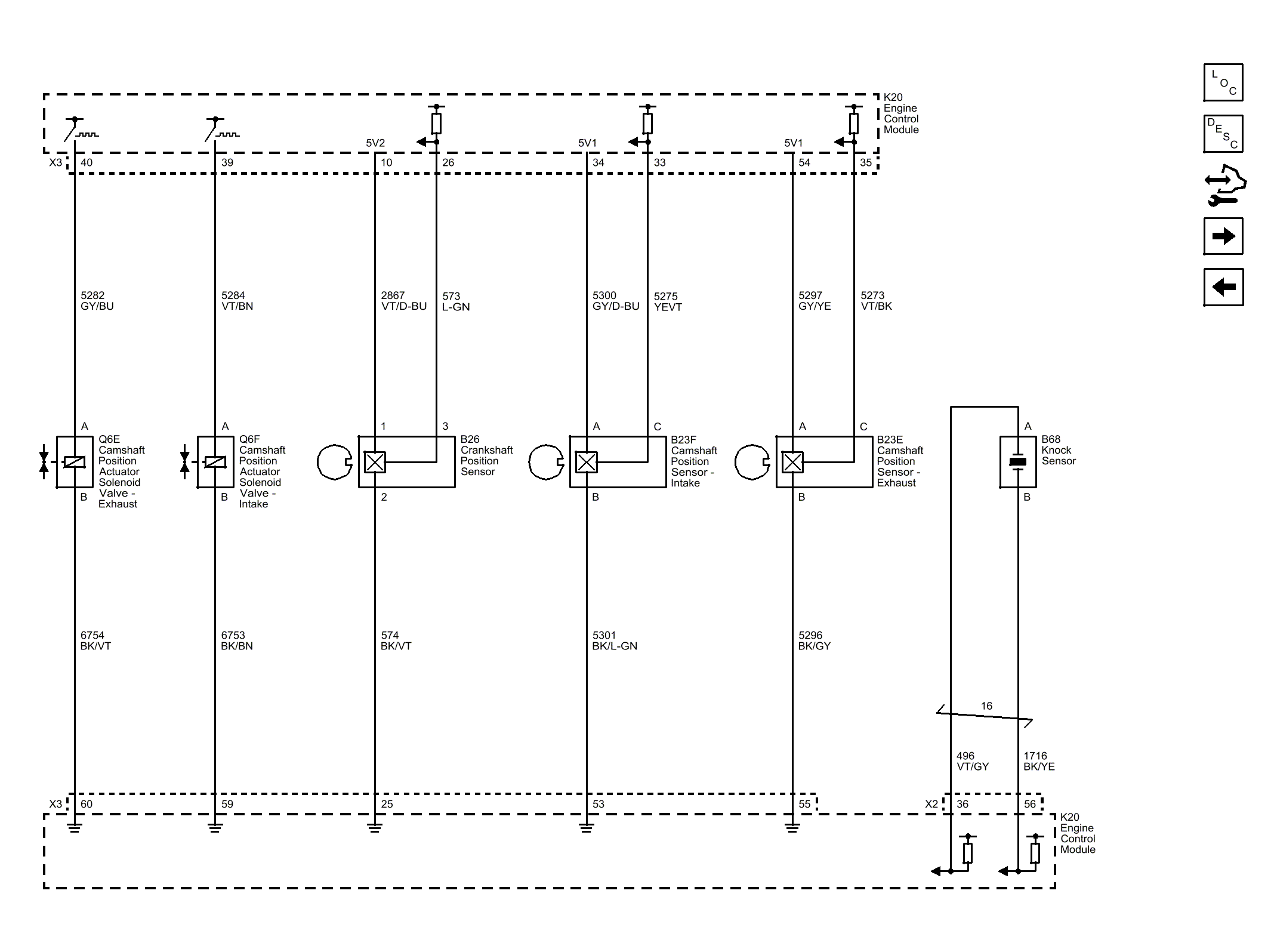

Fig 1: Ignition Controls - Camshaft, Crankshaft, and Knock Sensors, Camshaft Actuators
GM3769593Courtesy of GENERAL MOTORS COMPANY
