Fuel Controls - Evaporative Emissions Controls

WARNING: This page is about a different variant/trim than selected.

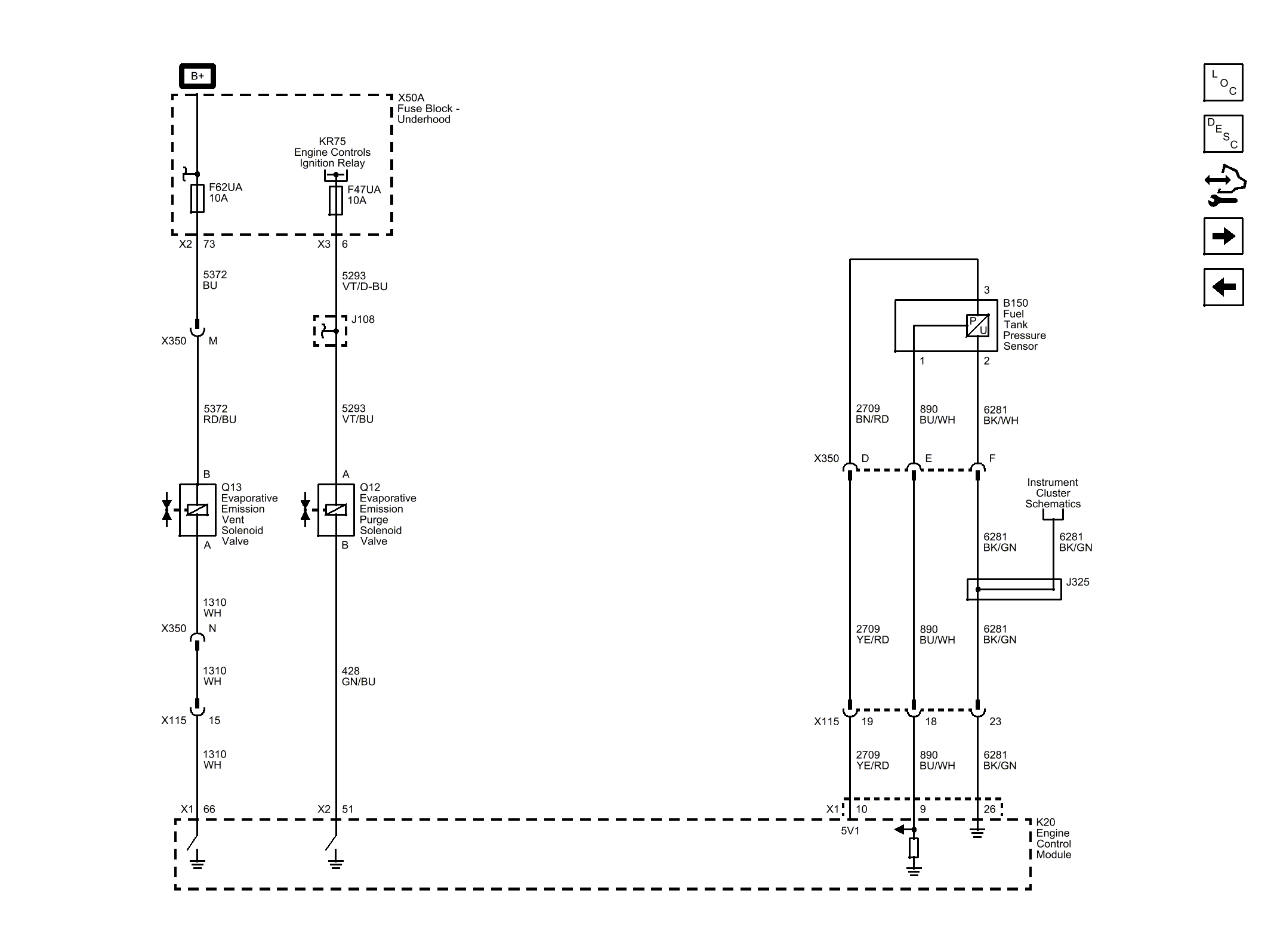

Fig 1: Fuel Controls - Evaporative Emissions Controls
GM3769596Courtesy of GENERAL MOTORS COMPANY
