Section 8 (Engine Controls And Fuel - 2.4L - Wiring Schematic Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Device Controls - Secondary Air Injection (NU6)
Device Controls - Secondary Air Injection (NU6)
WARNING:
This page is about a different variant/trim than selected.

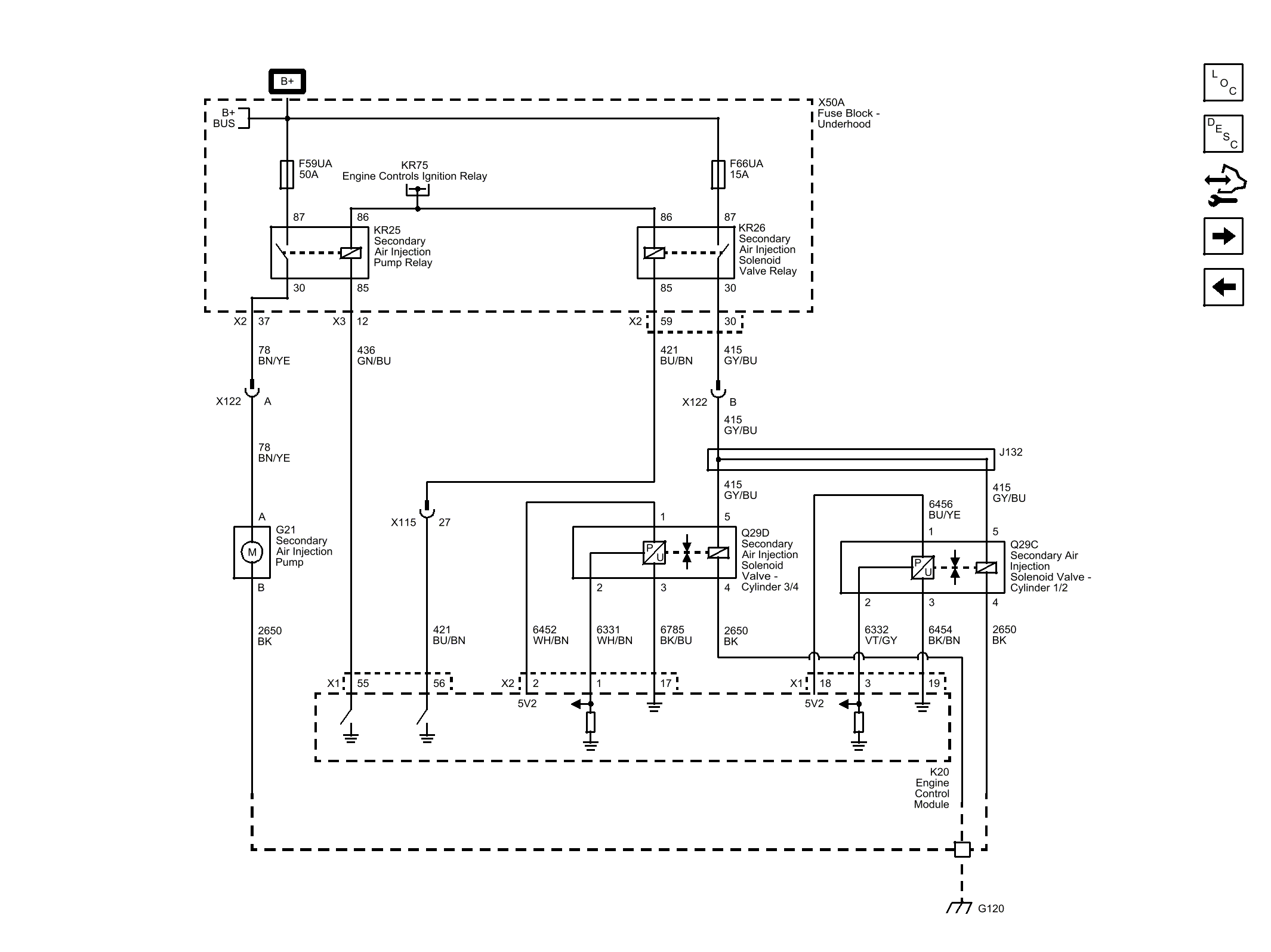

Fig 1: Device Controls - Secondary Air Injection (NU6)
Courtesy of GENERAL MOTORS COMPANY
