Section 8 (Engine Controls And Fuel - 2.4L - Wiring Schematic Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
5V1, and Low Reference Bus (1 of 2)
5V1, and Low Reference Bus (1 of 2)
WARNING:
This page is about a different variant/trim than selected.

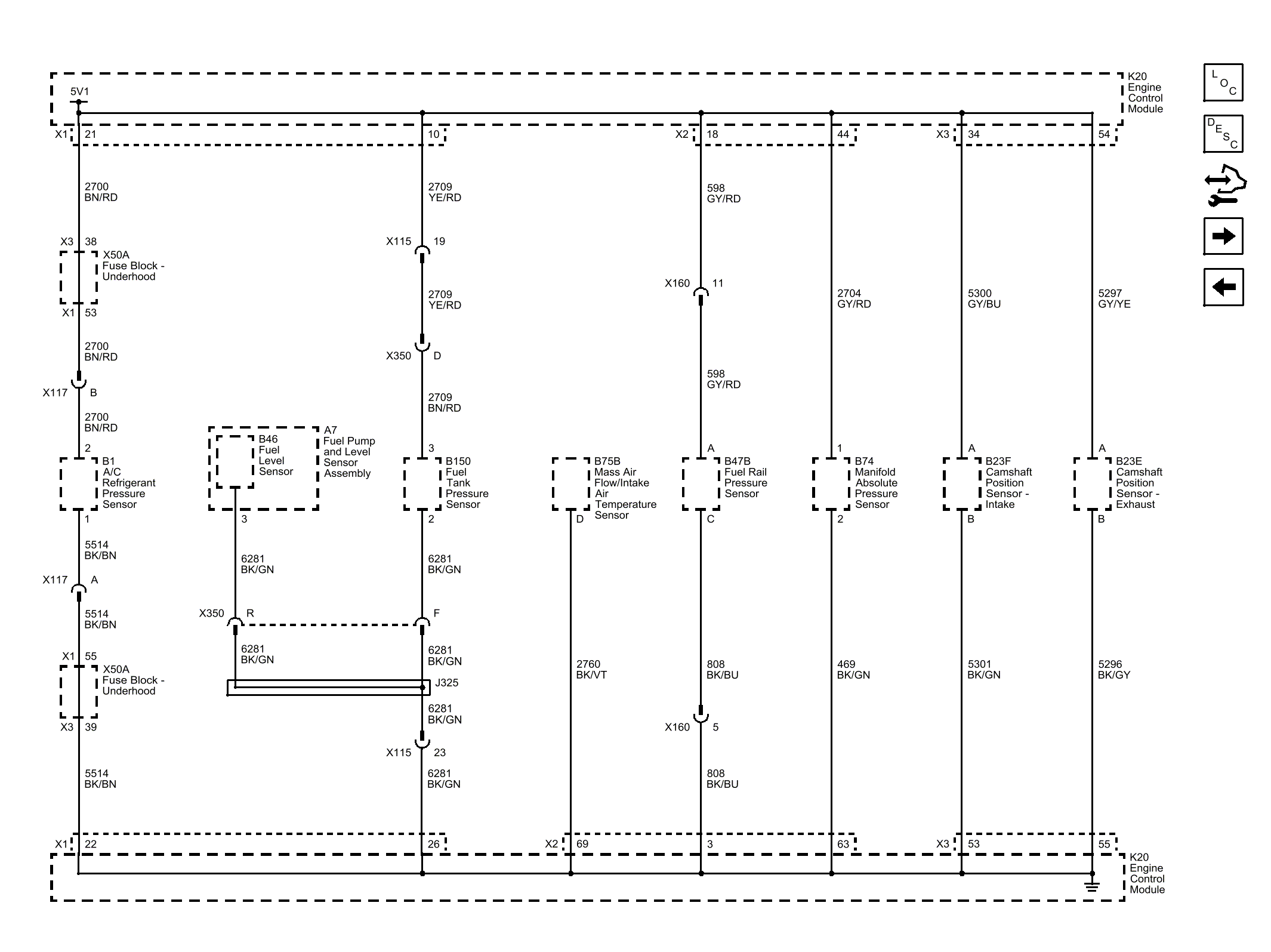

Fig 1: 5V1, and Low Reference Bus (1 of 2)
Courtesy of GENERAL MOTORS COMPANY
