Section 7 (Hybrid/EV Energy Storage System)
>>
Schematic Wiring Diagrams
>>
Hybrid/EV Energy Storage Wiring Schematics
>>
Power, Ground, and Serial Data
Power, Ground, and Serial Data
WARNING:
This page is about a different variant/trim than selected.

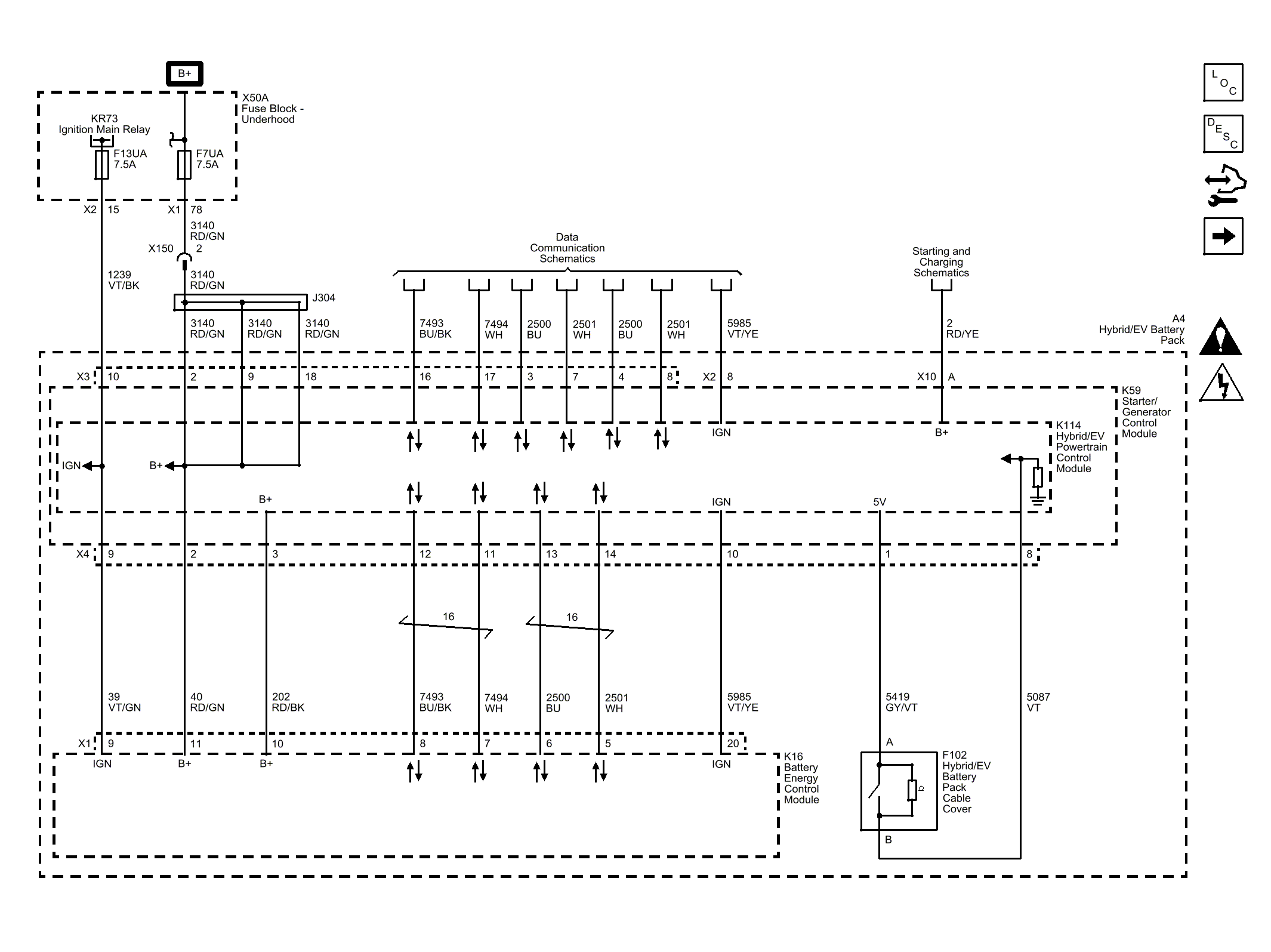

Fig 1: Power, Ground, and Serial Data
Courtesy of GENERAL MOTORS COMPANY
