Installation Procedure

WARNING: This page is about a different variant/trim than selected.

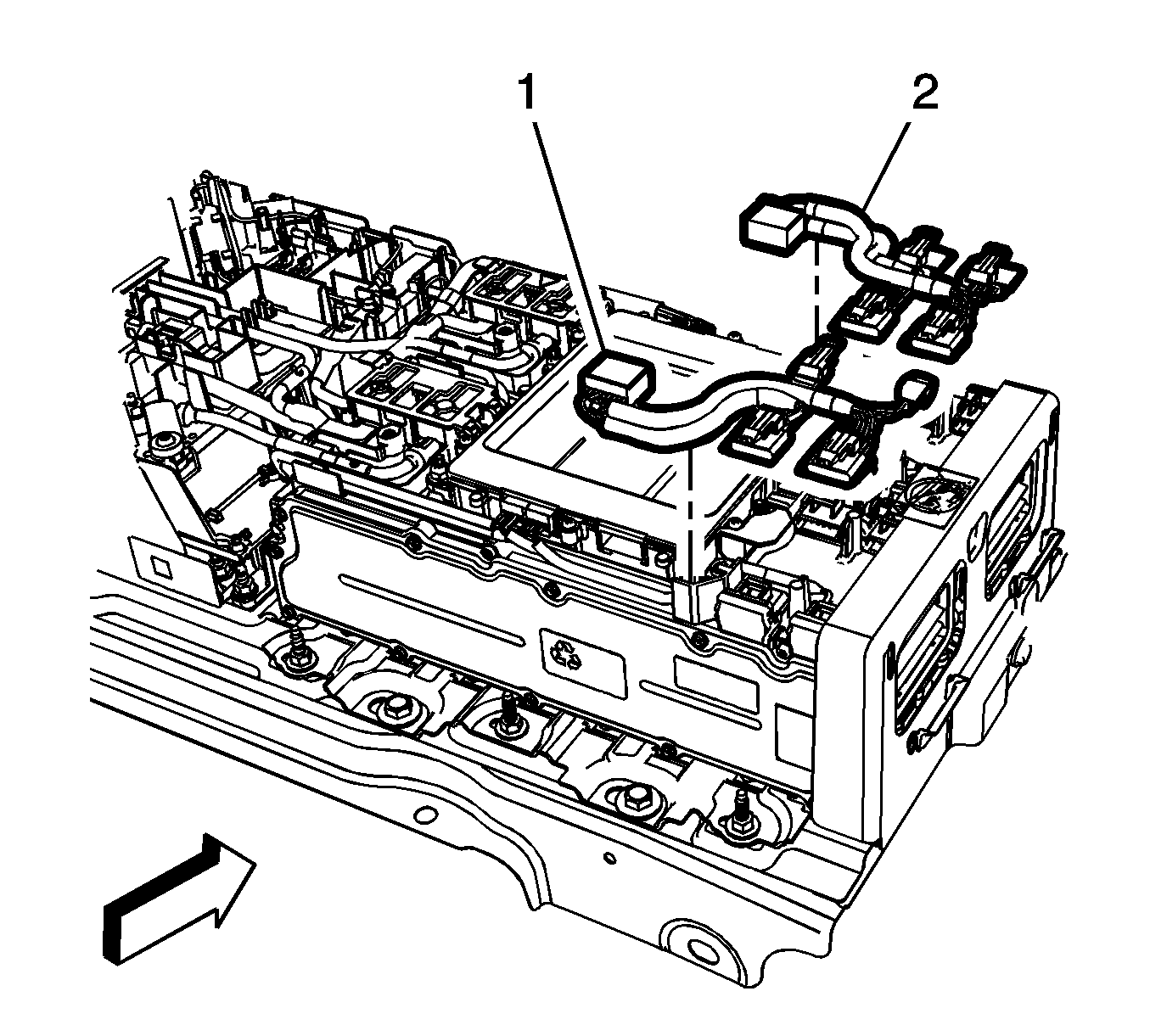

    Fig 1: Battery Energy Control Module Right Side Harness
    GM2601900Courtesy of GENERAL MOTORS COMPANY
  1. Install the right side battery energy control module harness (1) and the left side harness (2), into the harness conduit.

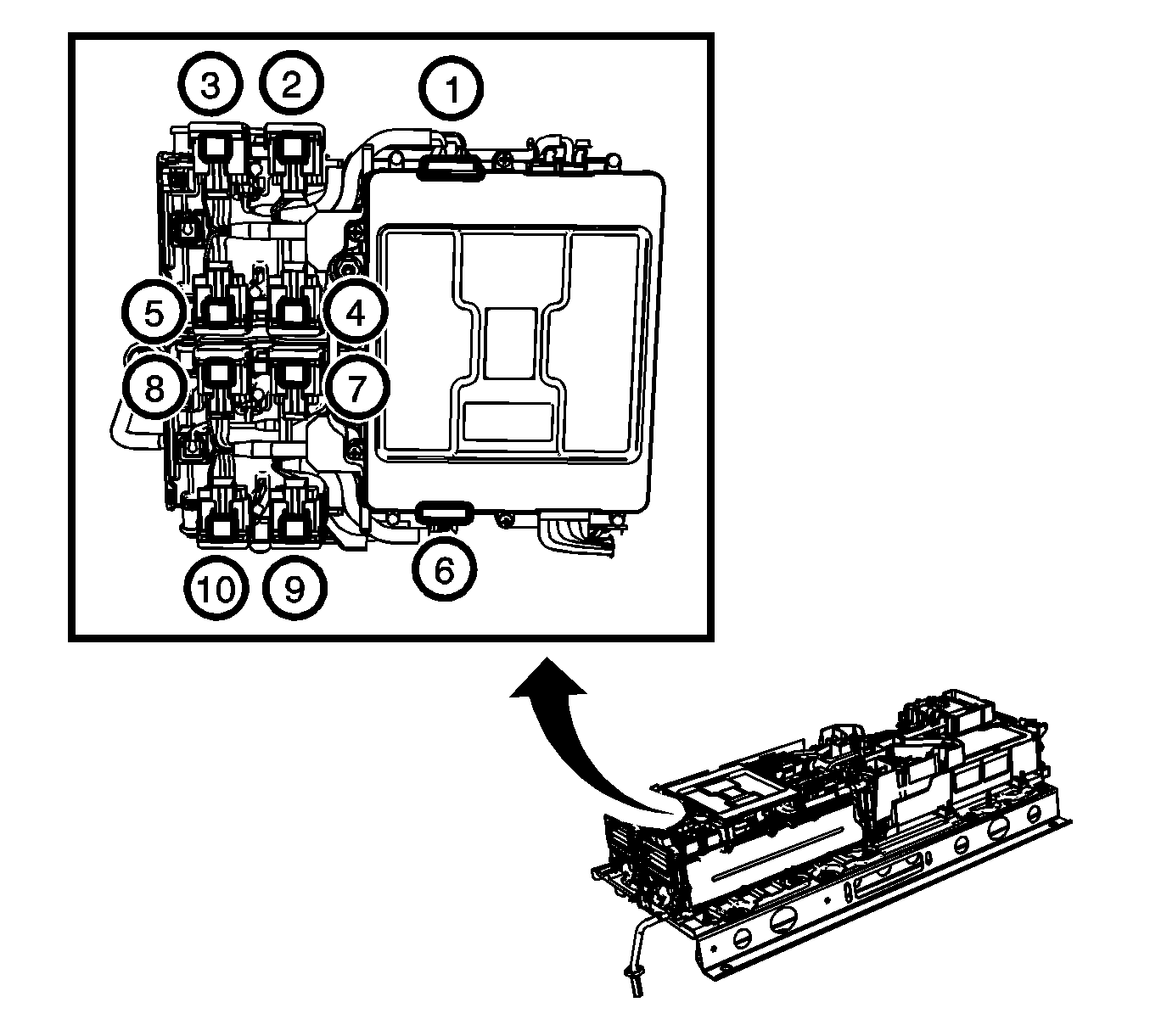

    2. Fig 2: Battery Energy Control Module Connector Sequence
    GM3229340Courtesy of GENERAL MOTORS COMPANY
  2. Connect the battery energy control module connectors in the above graphic sequence.
  3. Enable the hybrid battery. Refer to High Voltage Enabling .
