Section 6 (Manual Transaxle - F40)
>>
Schematic Wiring Diagrams
>>
Manual Transmission Wiring Schematics
>>
MR6
Manual Transmission Wiring Schematics: MR6
WARNING:
This page is about a different variant/trim than selected.

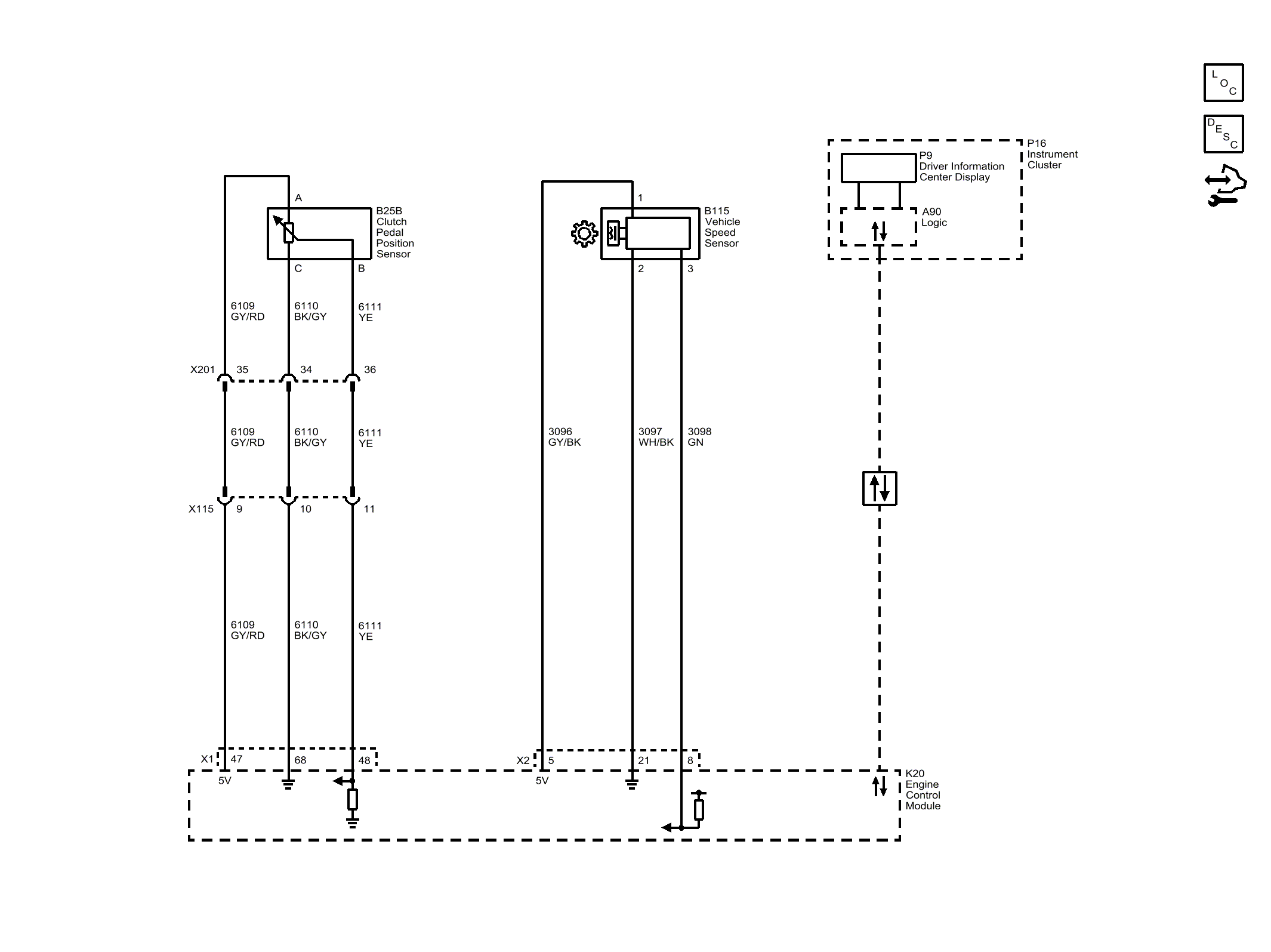

Fig 1: MR6 F40
Courtesy of GENERAL MOTORS COMPANY
