Vehicle Speed Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

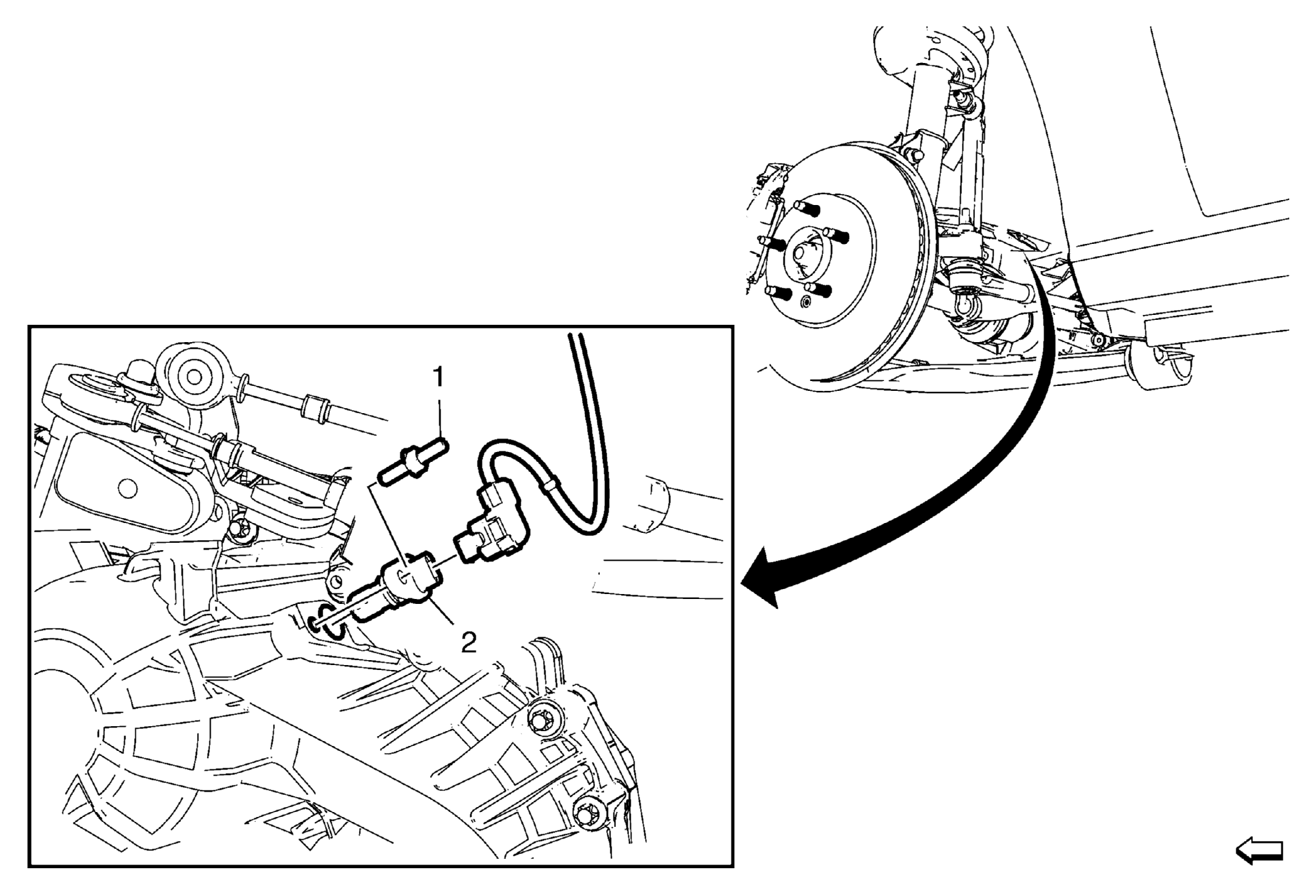

Fig 1: Vehicle Speed Sensor & Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the left front wheel. Refer to Tire and Wheel Removal and Installation . Disconnect the vehicle speed sensor electrical connector.
1	Vehicle Speed Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Vehicle Speed Sensor

Callout

Component Name

Preliminary Procedures

Vehicle Speed Sensor Bolt

CAUTION:

Tighten
8 N.m (71 lb in)

Vehicle Speed Sensor
