Transmission Mount Bracket Replacement - Rear
WARNING: This page is about a different variant/trim than selected.

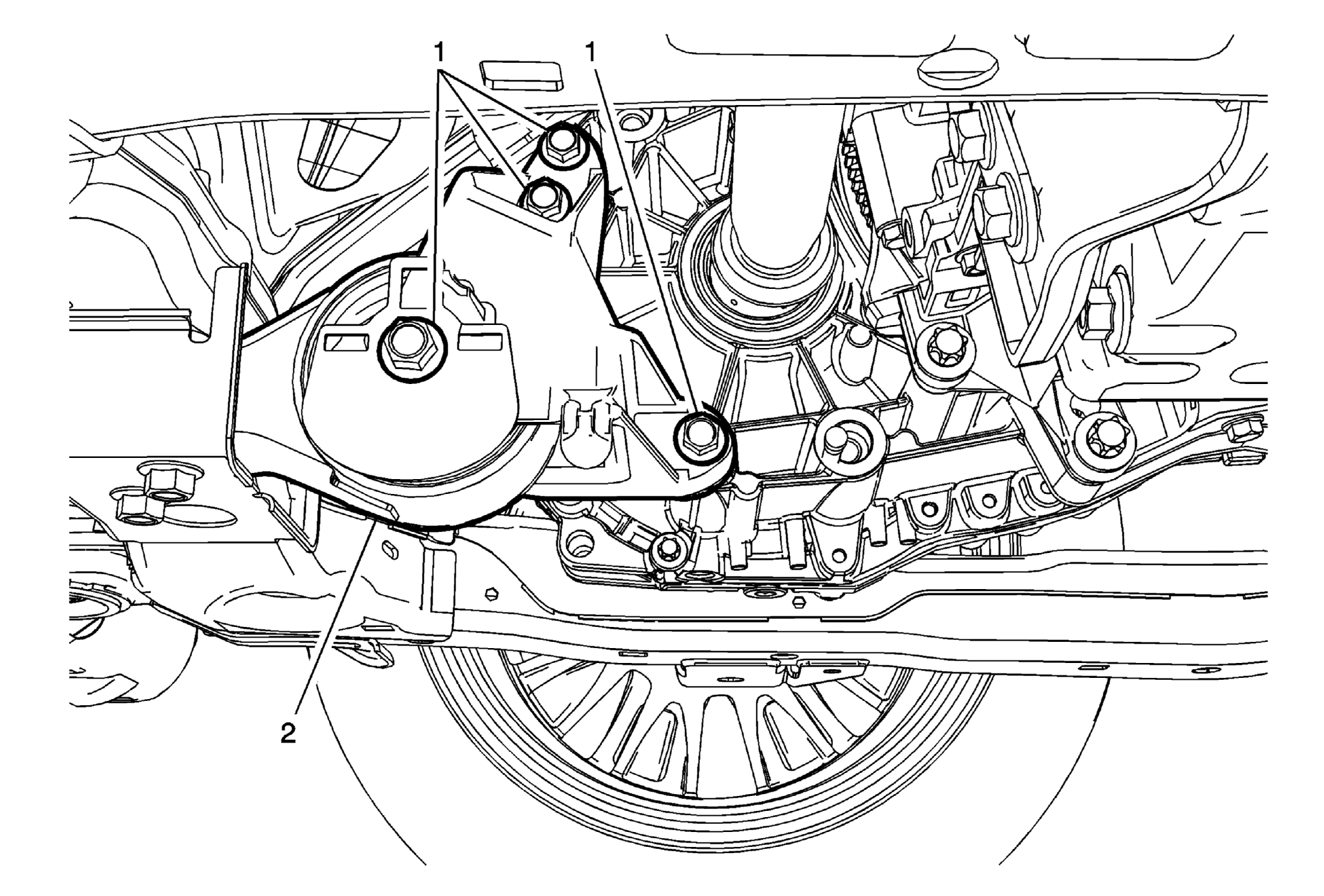

| Callout | Component Name |
|---|---|
|
WARNING:
To avoid any vehicle damage, serious personal injury or death when major components are removed from the vehicle and the vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed and strap the vehicle to the hoist.
WARNING:
Preliminary Procedure Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle
.Refer to Safety Glasses Warning . |
|
| 1 | Transmission Rear Mount Bracket Fastener (Qty:4)
CAUTION:
Refer to Fastener Caution . Procedure Support the transmission. Tighten 100 N.m (74 lb ft) |
| 2 | Transmission Rear Mount Bracket |
