Transmission Front Mount Replacement
WARNING: This page is about a different variant/trim than selected.

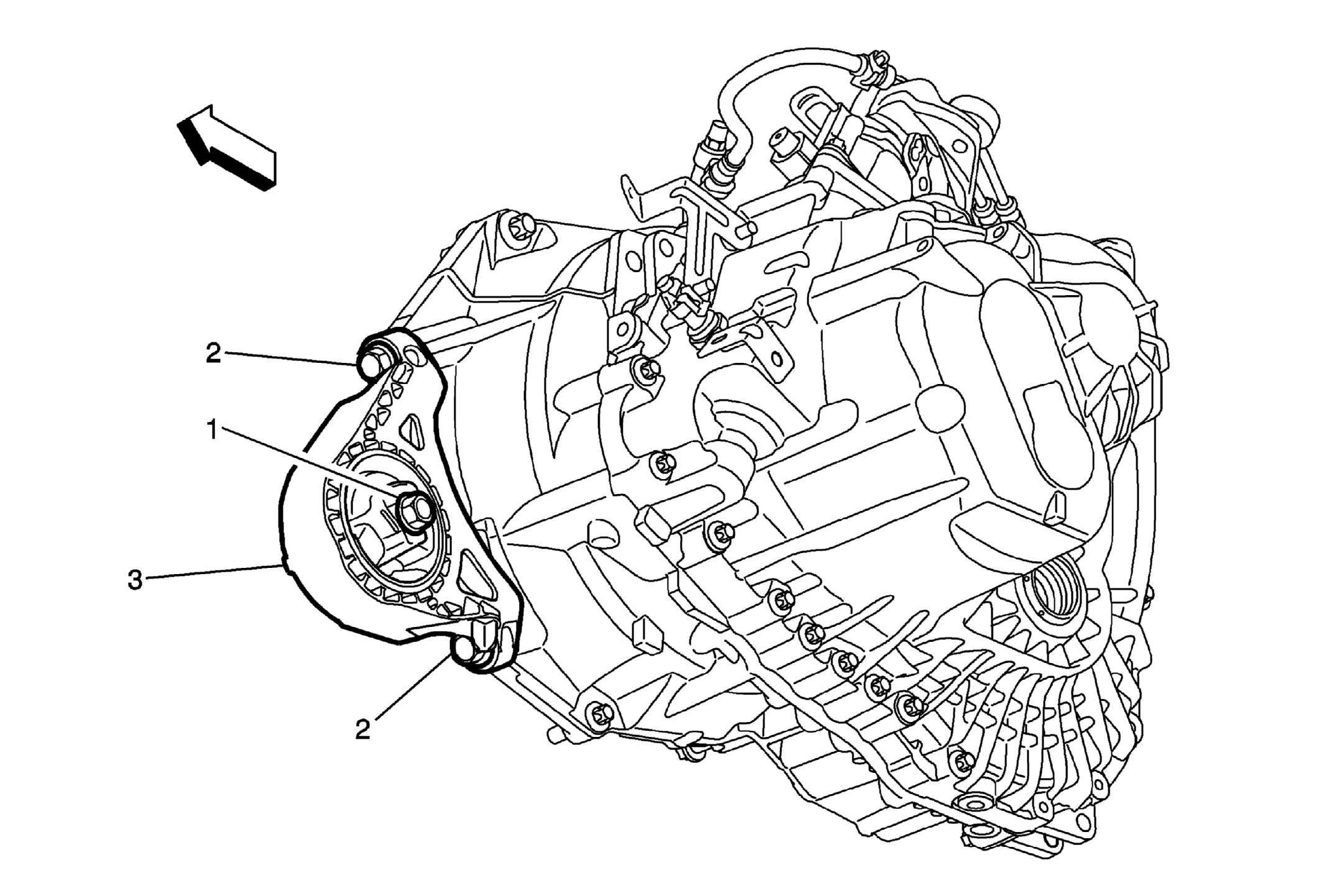

| Callout | Component Name |
|---|---|
|
WARNING:
To avoid any vehicle damage, serious personal injury or death when major components are removed from the vehicle and the vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed and strap the vehicle to the hoist.
WARNING:
Refer to Safety Glasses Warning .
CAUTION:
In order to avoid oil pan damage and possible engine failure, insert a block of wood that spans the width of the oil pan bottom between the oil pan and the jack support. Preliminary Procedure
|
|
| 1 | Transmission Mount to Frame Through Bolt
CAUTION:
Refer to Fastener Caution . Tighten 100 N.m (74 lb ft) |
| 2 | Transmission Front Mount Fastener (Qty:2) Tighten 100 N.m (74 lb ft) |
| 3 | Transmission Front Mount Procedure Support the transmission. |
