Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    NOTE:

    The control lever knob and boot are replaced as an assembly.

  1. Remove transmission control lever boot from front floor console, gently pulling boot frame on front side upwards.

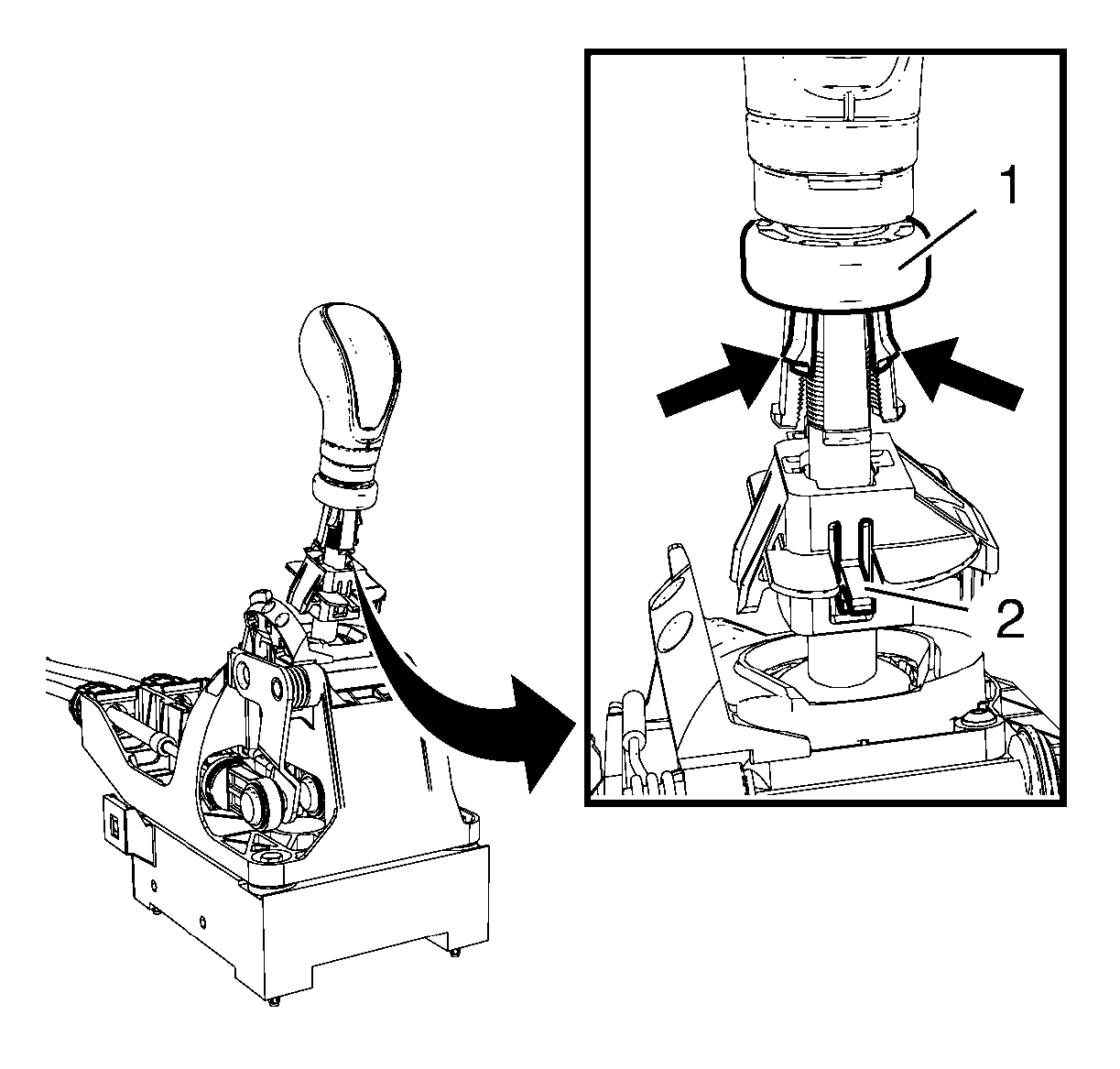

    2. Fig 1: Transmission Control Lever Retainer Ring
    GM2191956Courtesy of GENERAL MOTORS COMPANY
  2. Slide transmission control lever boot upwards.
  3. Press in on the 2 tabs shown by the arrows.
  4. Slide the blue lock ring (1) upward to release the retainers on the knurled shaft.
  5. Remove the knob from the shifter by pulling up to release the knob from the knurled shaft.
  6. Pull trigger (2) upward.
  7. Remove the reverse block out boot assembly from the shifter.

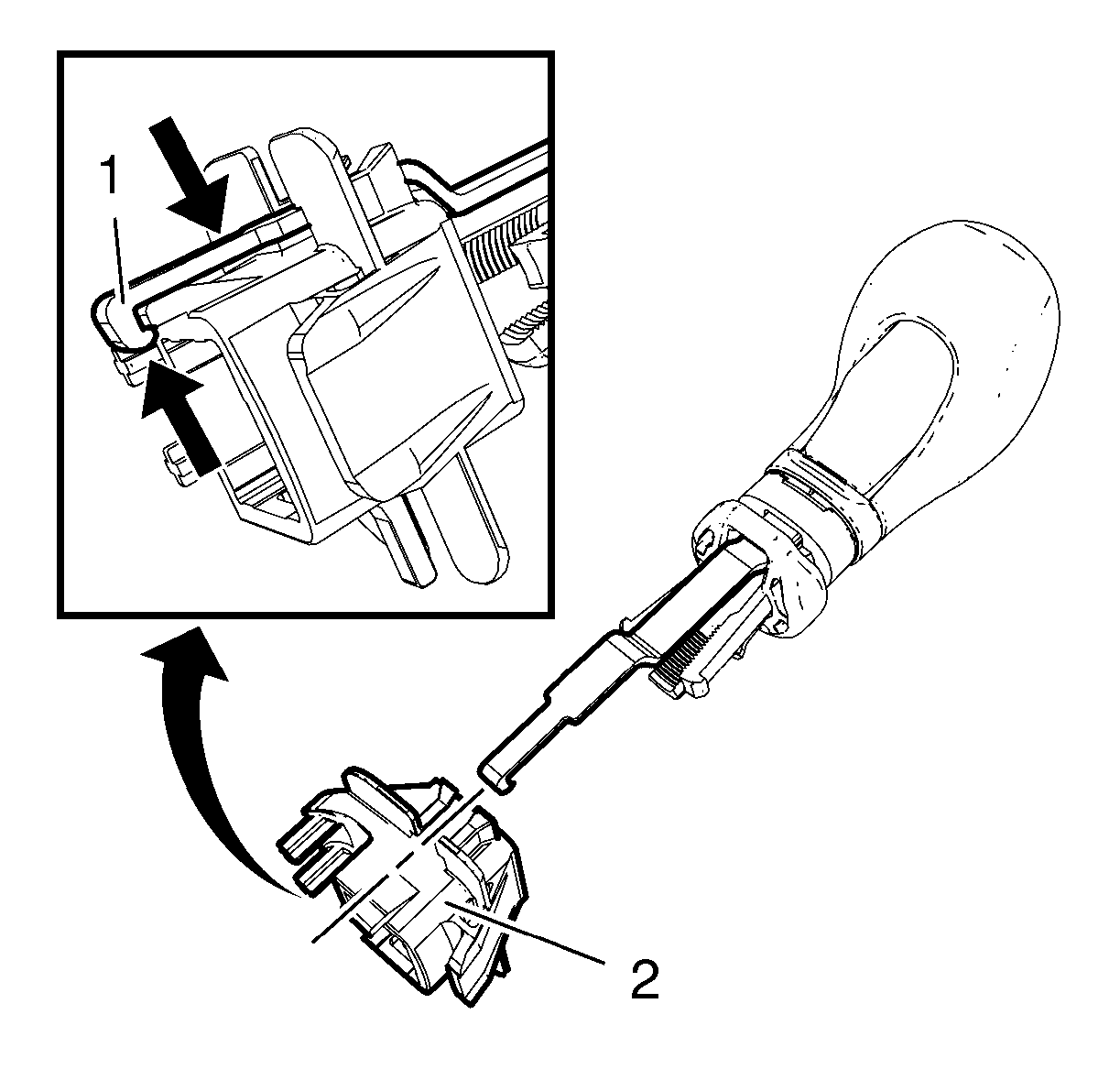

    8. Fig 2: Pull Latch
    GM2191959Courtesy of GENERAL MOTORS COMPANY
  8. Press pull latch (1) in direction of arrows.
  9. Remove reverse gear block (2) from transmission shifter boot assembly.
