Installation Procedure

WARNING: This page is about a different variant/trim than selected.

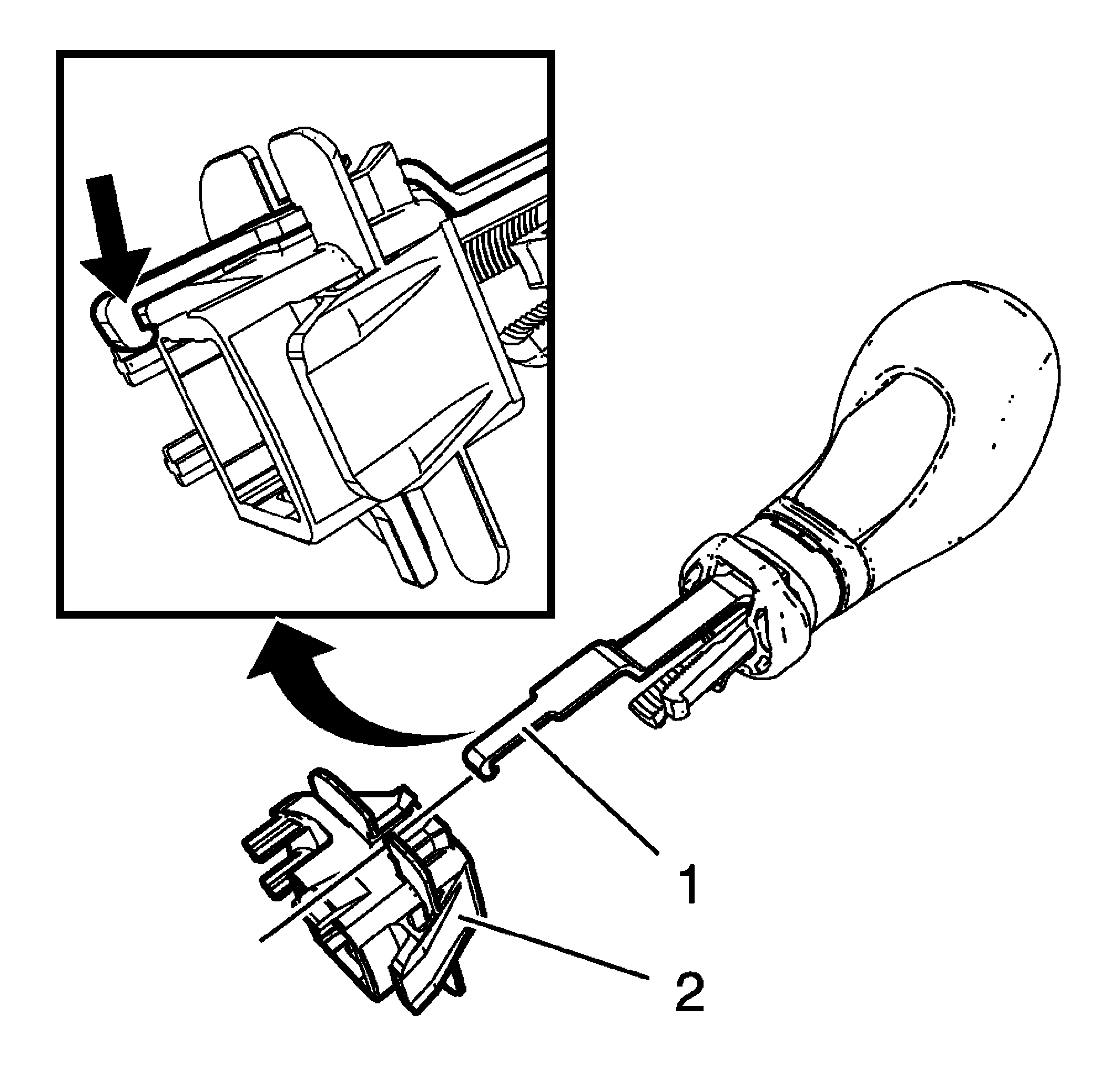

    Fig 1: Reverse Gear Block & Hook
    GM2191977Courtesy of GENERAL MOTORS COMPANY
  1. Install reverse gear block (2) to transmission control lever knob.
  2. Let the hook (1) engage hearable (arrow).

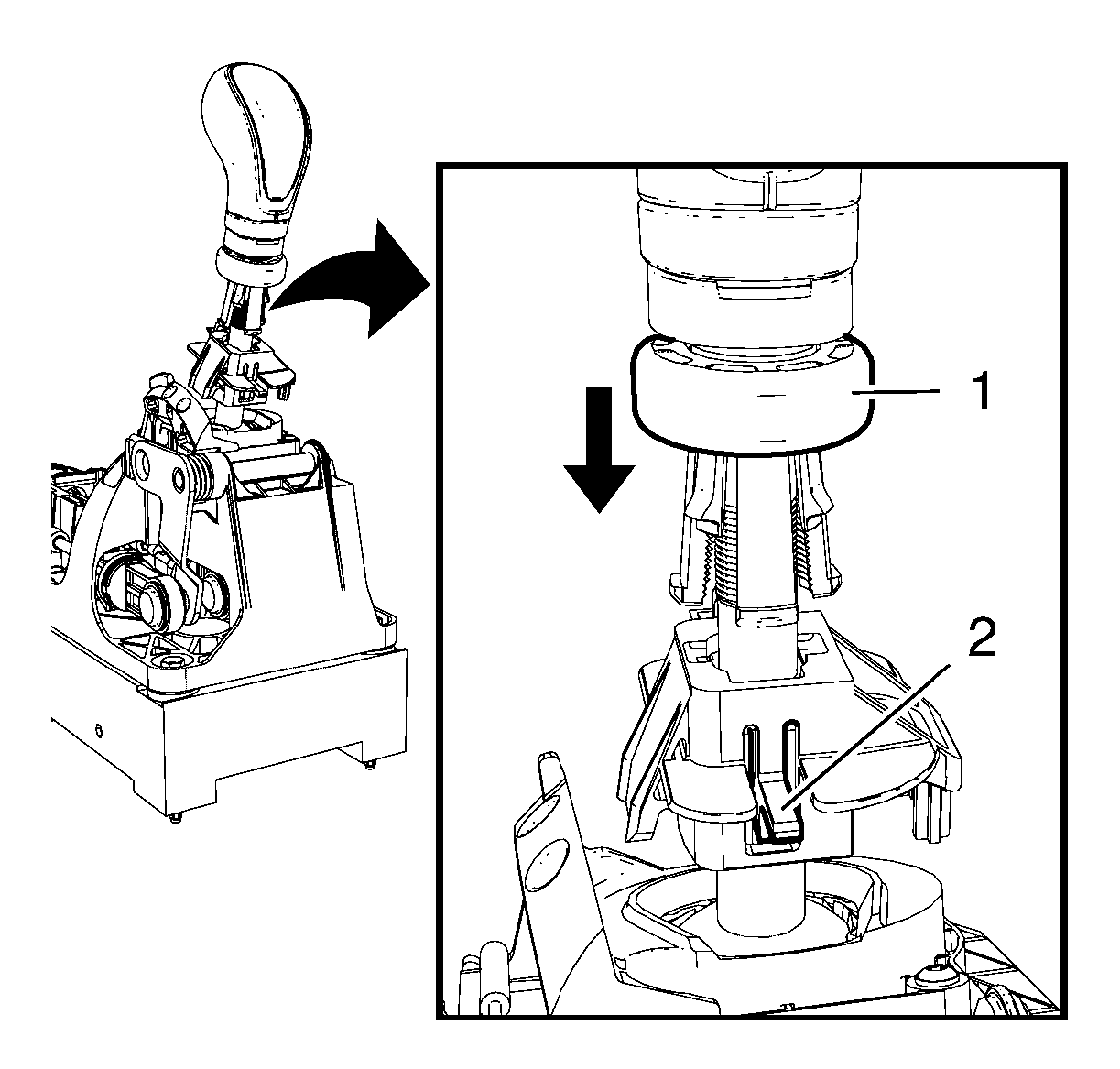

    3. Fig 2: Transmission Control Lever Retainer Ring & Trigger
    GM2191982Courtesy of GENERAL MOTORS COMPANY
  3. Install transmission control lever knob.
  4. Push trigger (2) upward.
  5. Press the transmission control lever knob during installation completely down.
  6. Clip transmission control lever boot into front floor console.
