Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Shift transmission into NEUTRAL.
  2. Remove the front floor console. Refer to Front Floor Console Replacement .

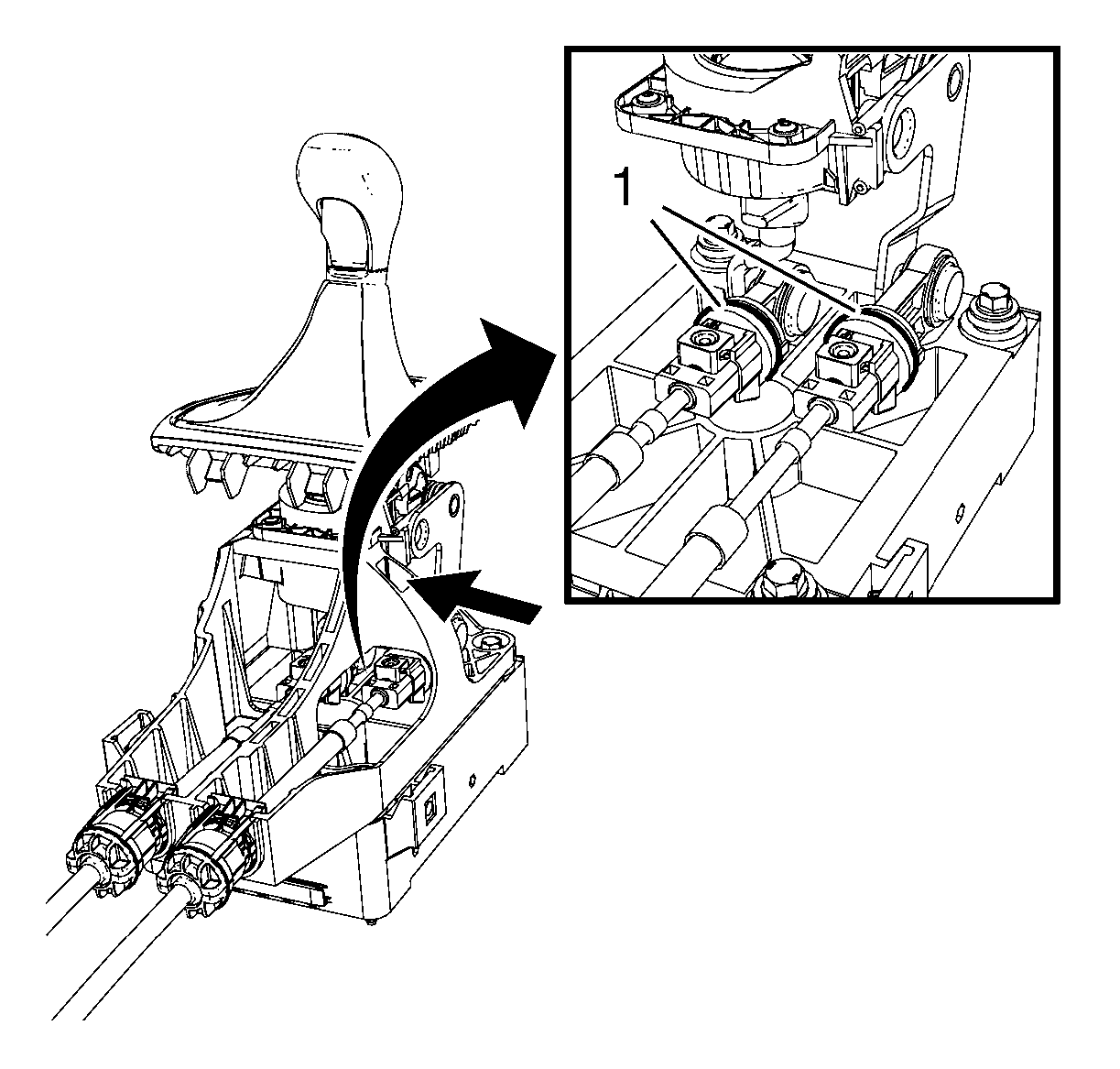

    3. Fig 1: Shift Lever And Selector Lever Cable Adjust Locks
    GM2191450Courtesy of GENERAL MOTORS COMPANY
  3. Unlock shift lever and selector lever cable adjust locks (1), by pushing back the spring force loaded black sliding ring until self-locking.
  4. Unlock the left cable trough the opening at the housing (arrow) using a suitable tool.
  5. Remove transmission control lever boot. Refer to Transmission Control Lever Boot Replacement .

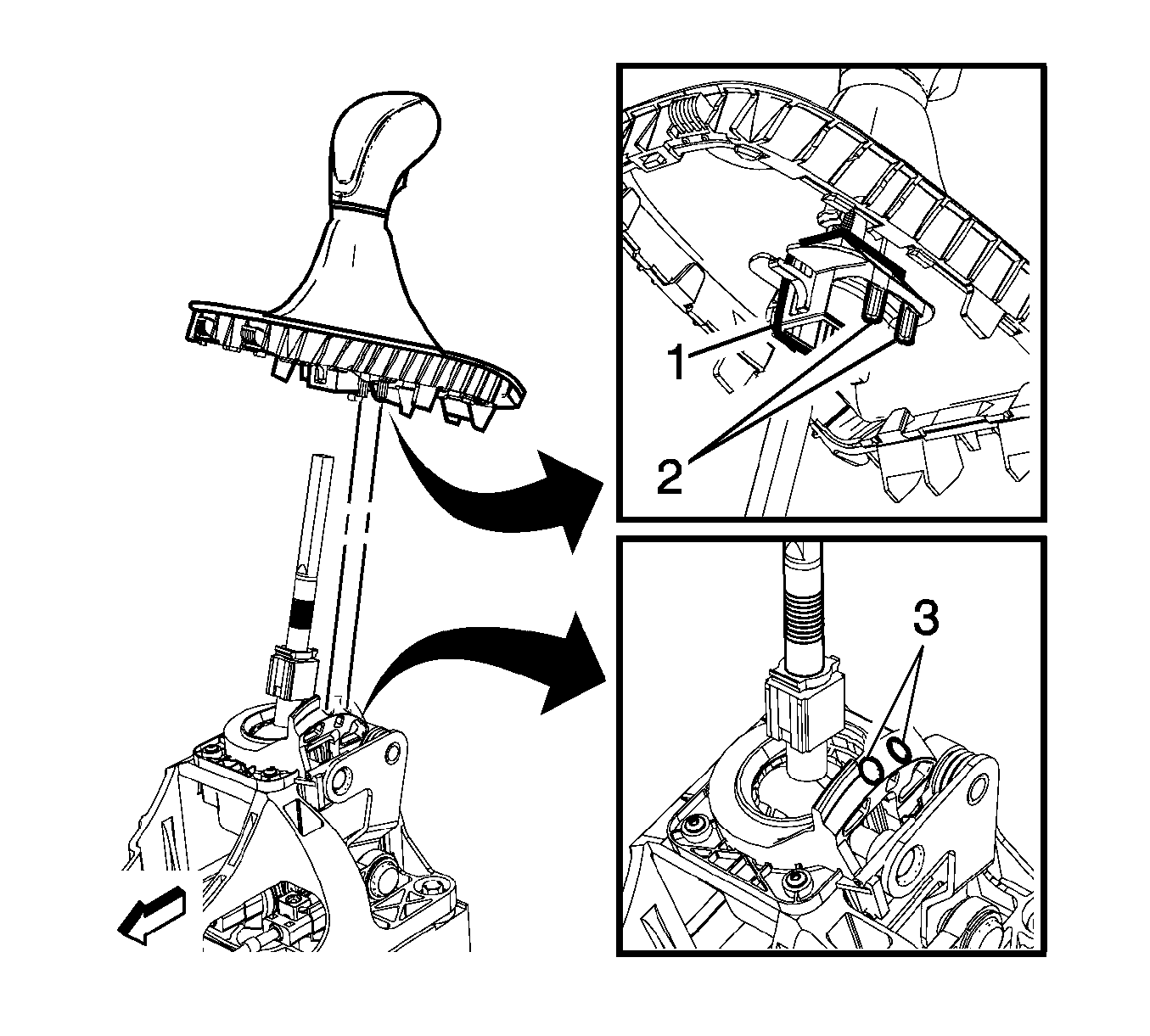

    6. Fig 2: Reverse Blocker Assembly, Pins & Holes
    GM2733810Courtesy of GENERAL MOTORS COMPANY
  6. Turn transmission reverse blocker assembly (1) 180 degrees and install to transmission control lever.
  7. Push the 2 pins (2) into the 2 holes (3).
  8. Remove engine control module from battery tray and lay aside.

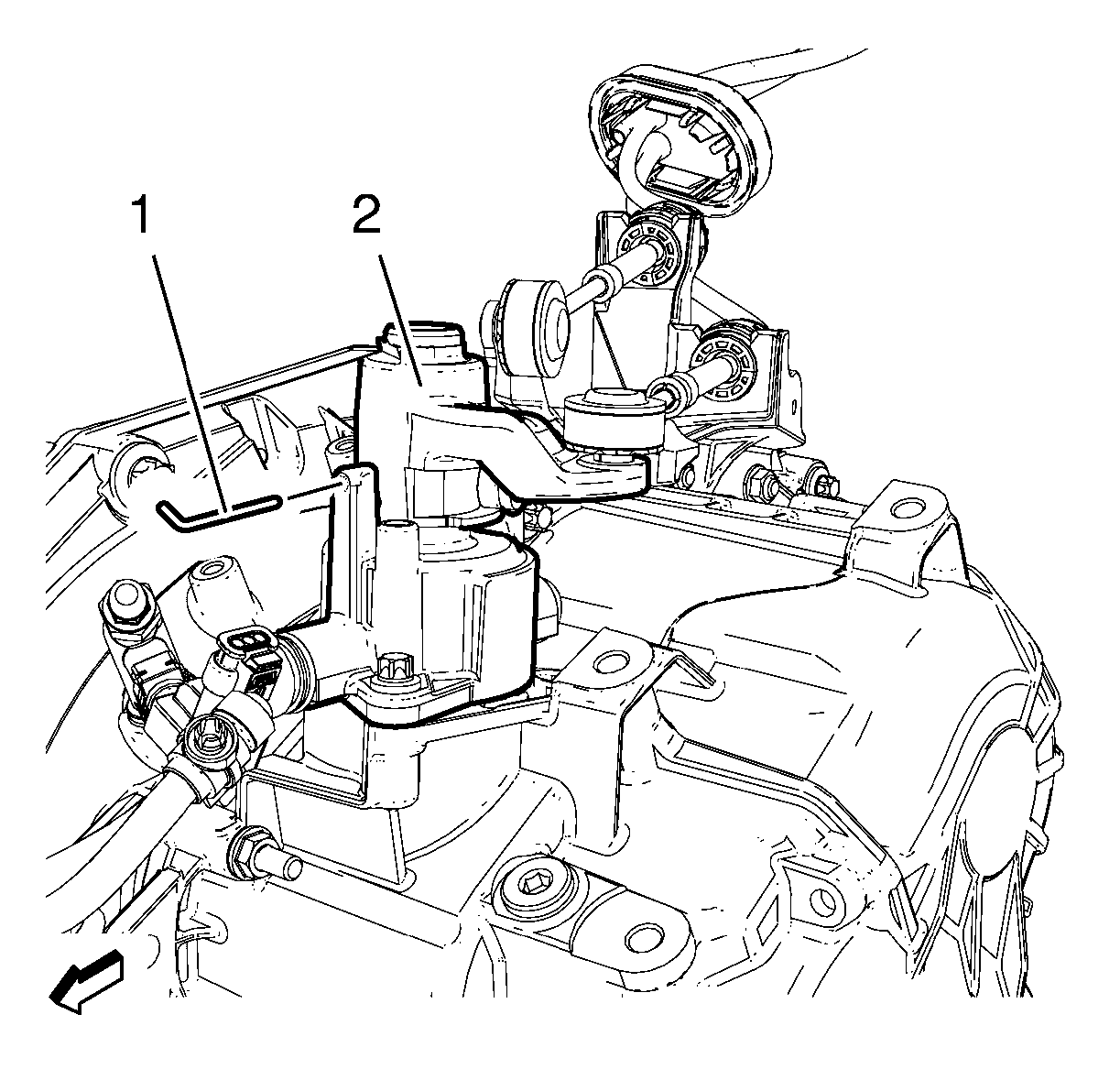

    9. Fig 3: Transmission Control Housing
    GM2191433Courtesy of GENERAL MOTORS COMPANY
  9. Block transmission control housing (2) using DT-527-A  adjuster (1) or equivalent.
