Backup Lamp Switch Replacement
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY

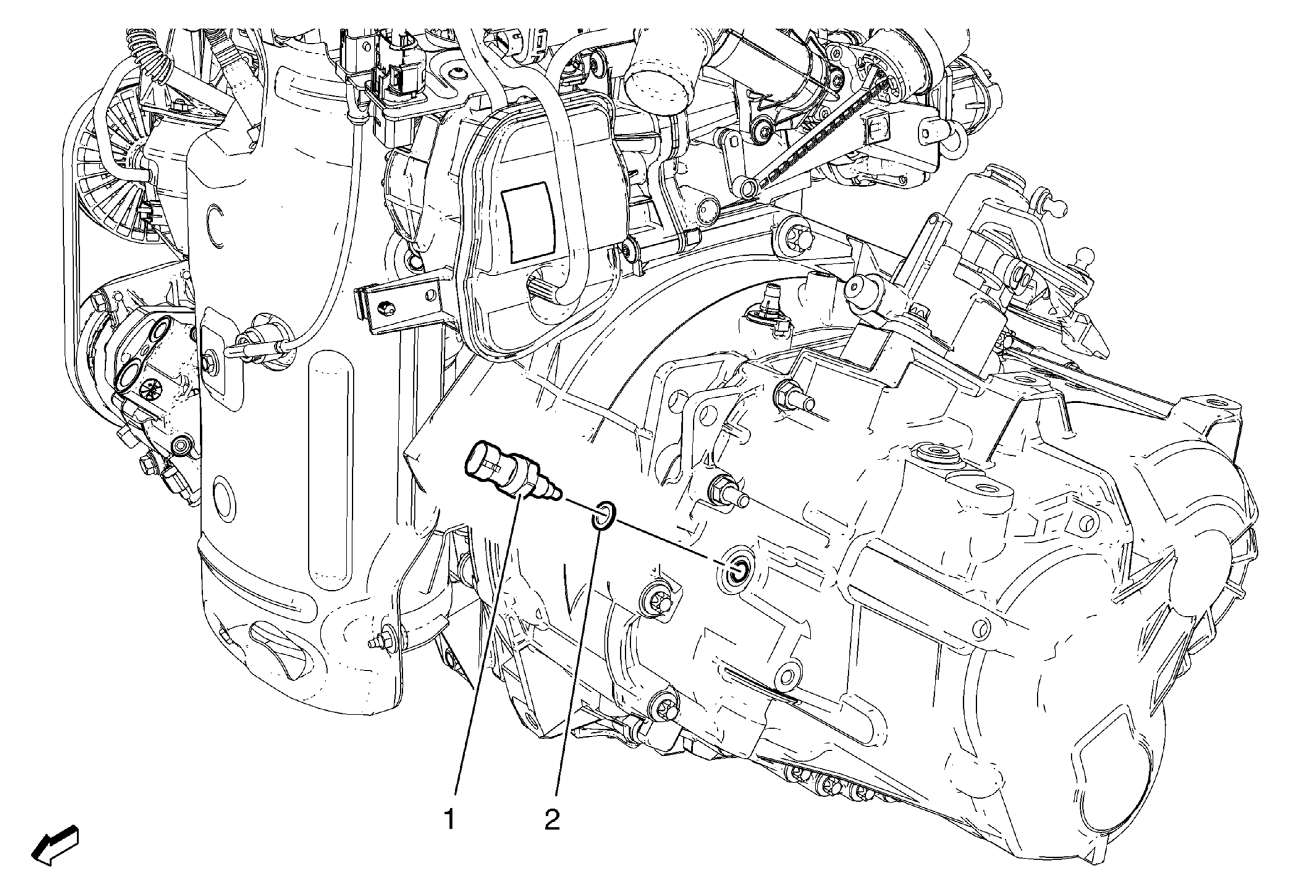

| Callout |
Component Name |
| 1 |
Backup Lamp Switch Procedure
- Remove the electrical connector.
- Install NEW seal ring.
Tighten
25 N.m (18 lb ft) |
| 2 |
Seal Ring |
