Transmission System Description and Operation: Notes

The F40-6 is a 6-speed manual transmission. This manual transmission is an all-synchromesh 3-shaft transmission.

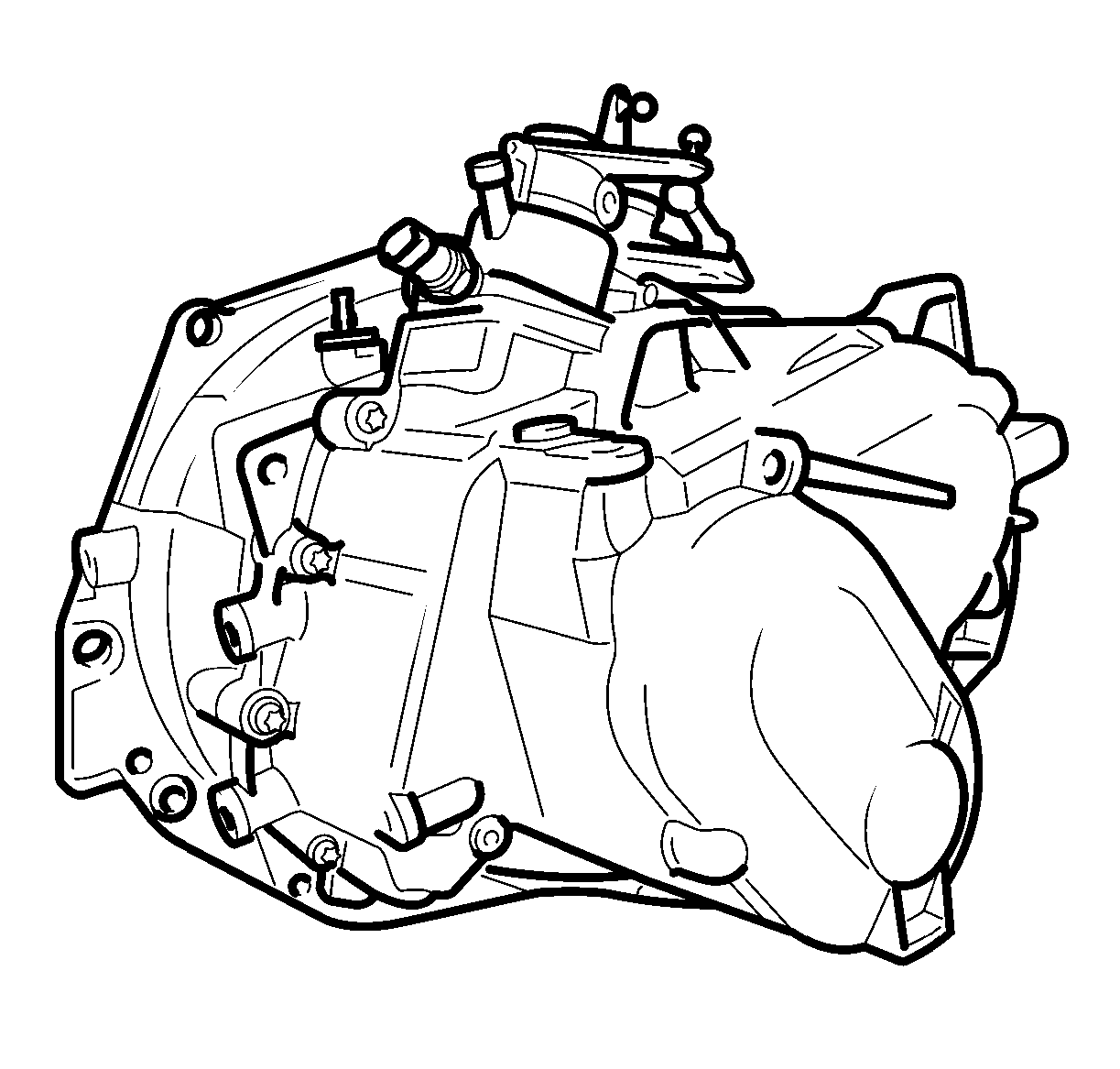

Fig 1: Manual Transmission

Courtesy of GENERAL MOTORS COMPANY

This 3-shaft transmission has the following advantages:

• Compact construction
• Improved smooth-running performance
• Better shift quality
• High torque transmission
