Shafts & Differential

WARNING: This page is about a different variant/trim than selected.

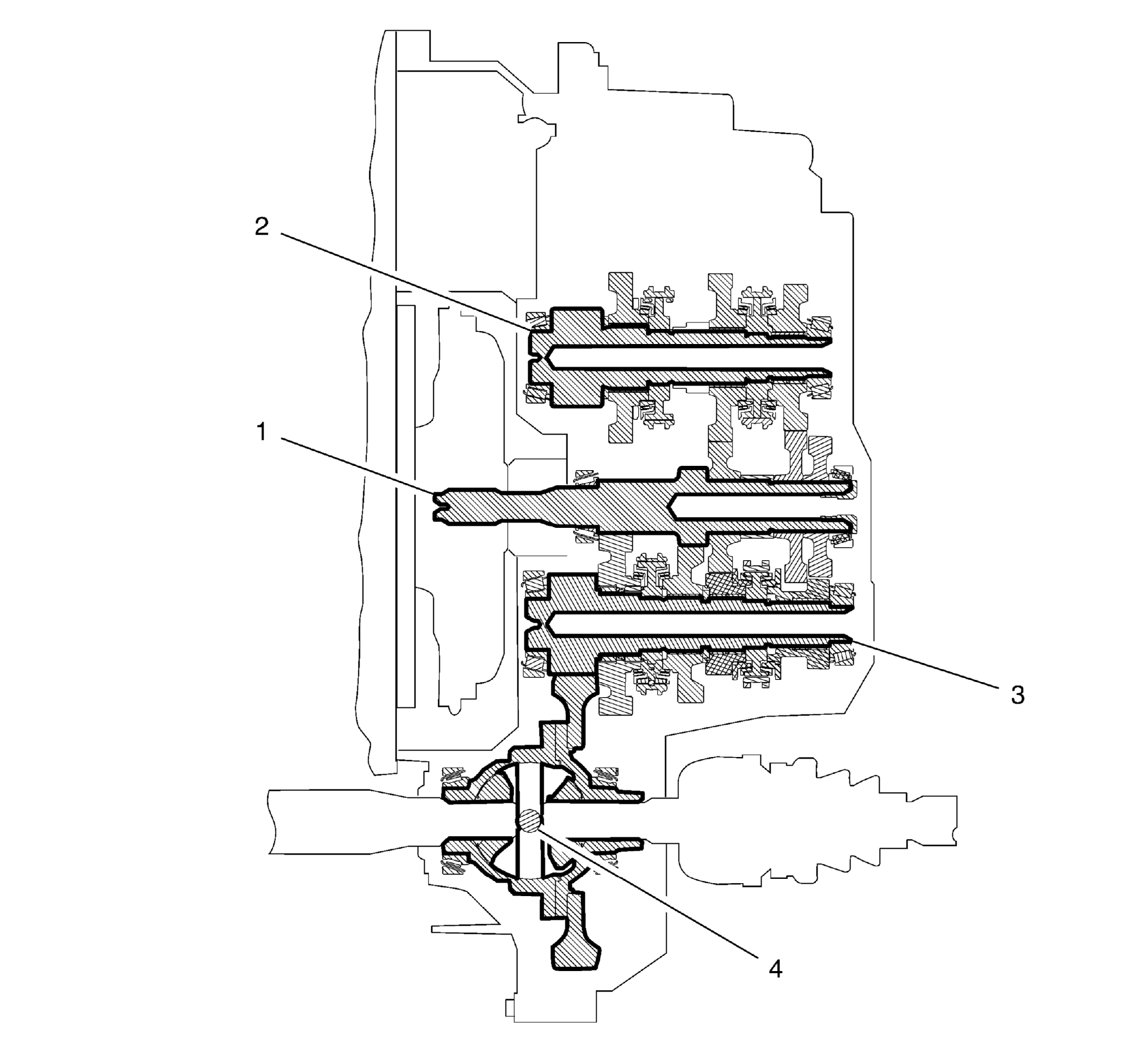

Fig 1: Location Of Shafts & Differential
GM2900119Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Input shaft
2 Upper main shaft
3 Lower main shaft
4 Differential gear
