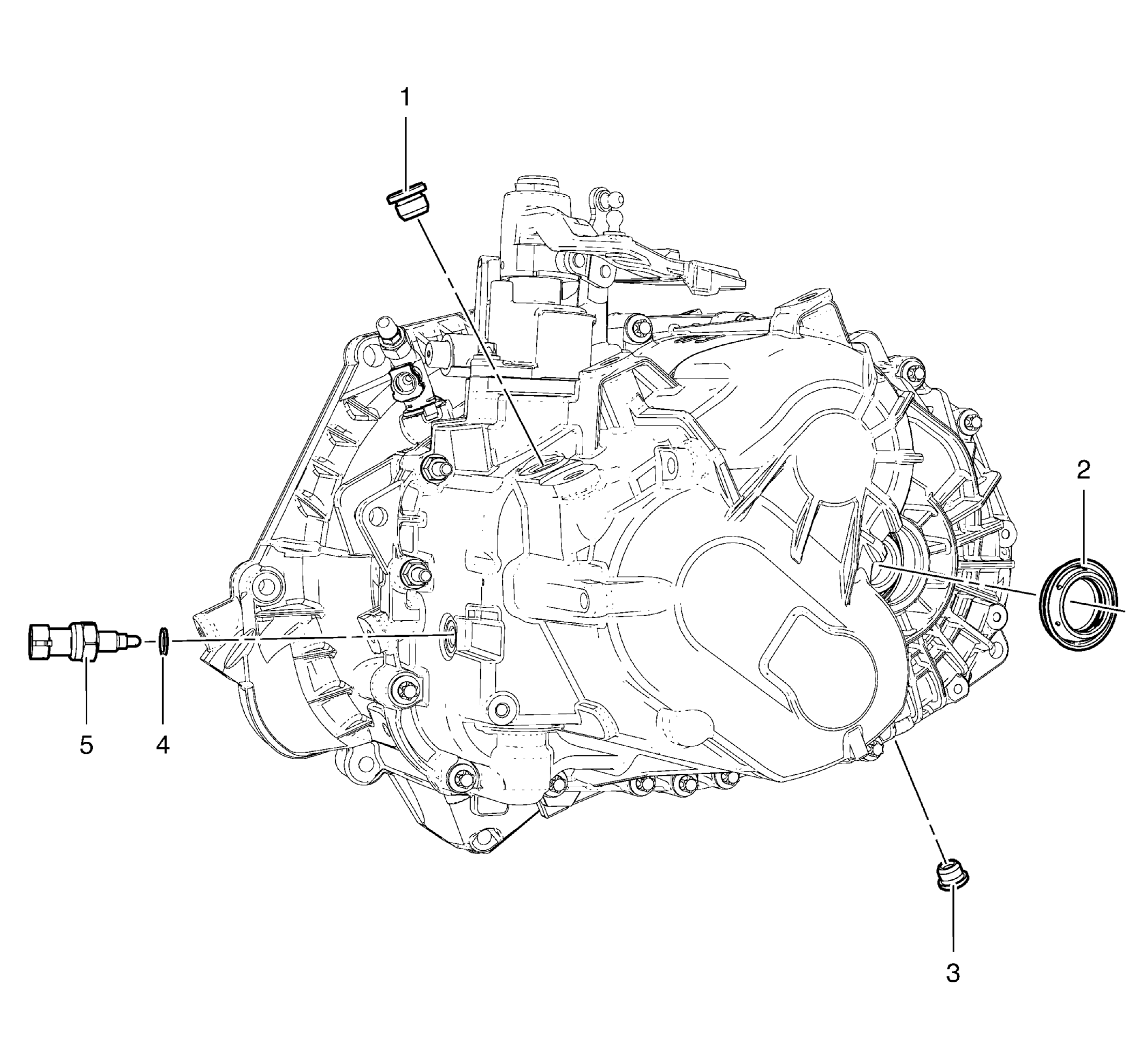

Transmission Housing Components
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
Transmission Oil Filler Plug |
| 2 |
Front Wheel Drive Shaft Oil Seal |
| 3 |
Transmission Oil Drain Plug |
| 4 |
Backup Lamp Switch Washer |
| 5 |
Backup Lamp Switch |
