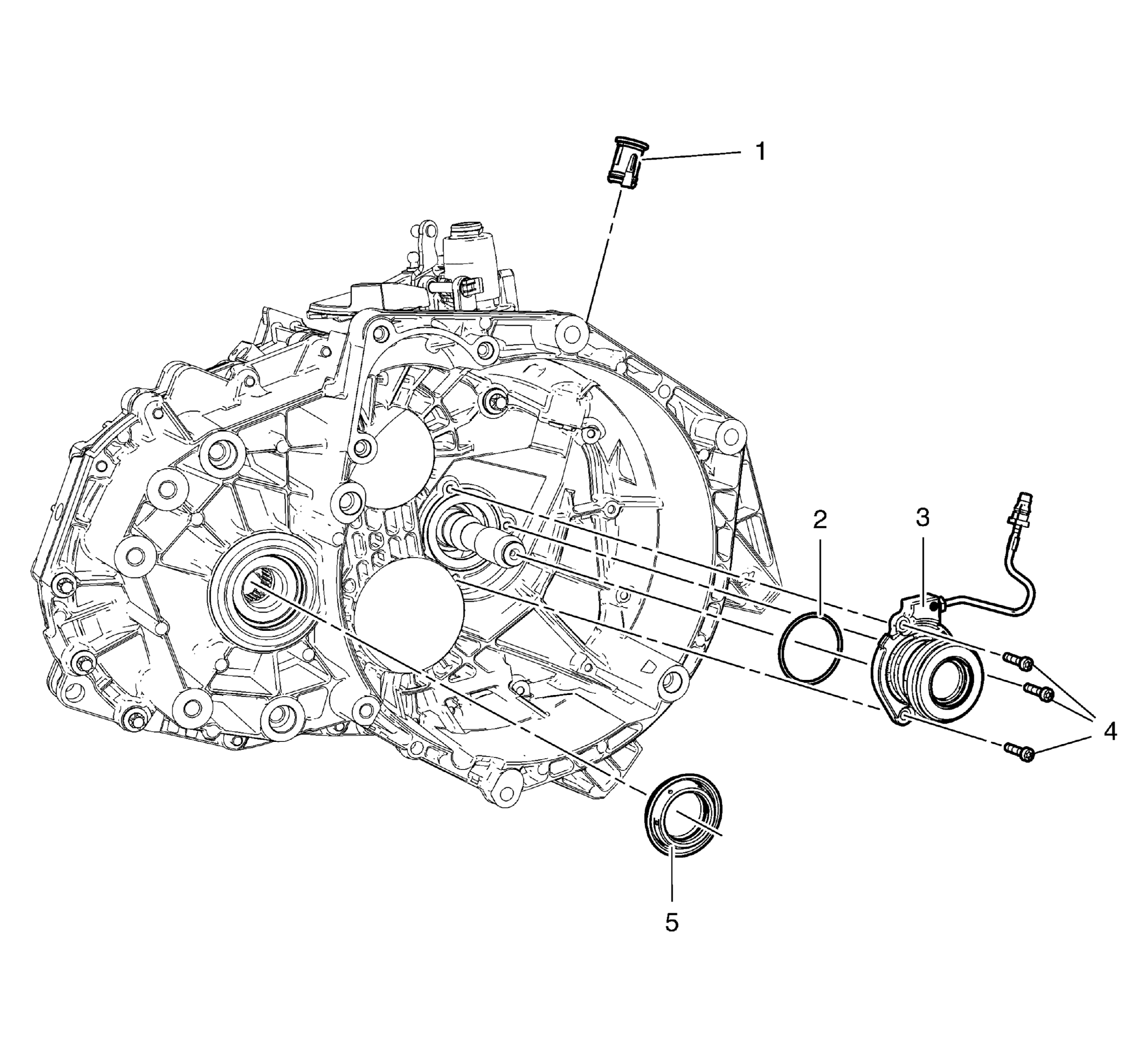

Clutch Housing Components
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
Clutch Actuator Cylinder Pipe Sleeve |
| 2 |
Clutch Actuator Cylinder O-Ring |
| 3 |
Clutch Actuator Cylinder |
| 4 |
Clutch Actuator Cylinder Bolts (Qty:3) |
| 5 |
Front Wheel Drive Shaft Oil Seal |
