Installation Procedure

WARNING: This page is about a different variant/trim than selected.

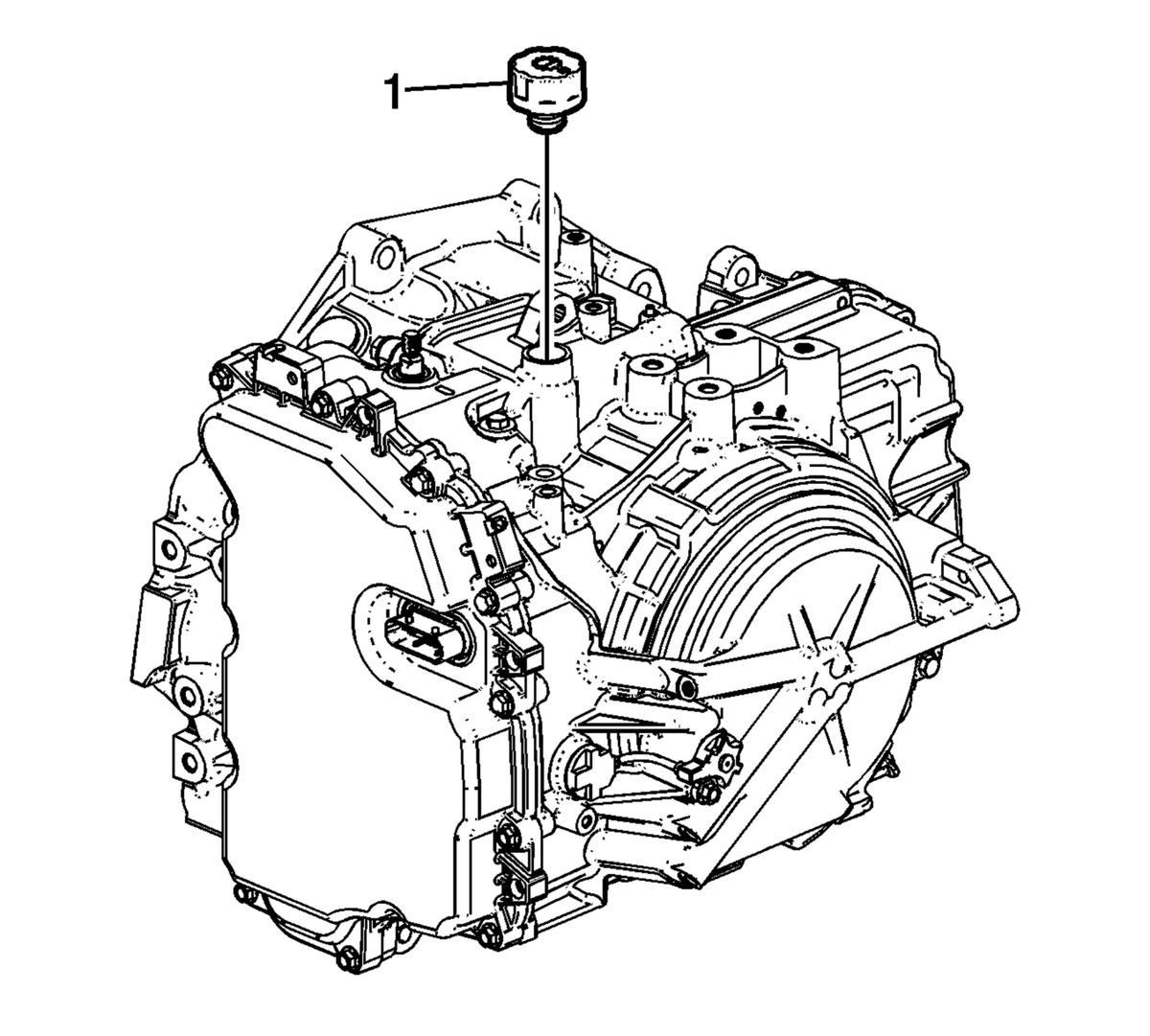

    Fig 1: Identifying Fluid Fill Cap
    GM1998835Courtesy of GENERAL MOTORS COMPANY
  1. Lower the vehicle.
  2. Remove the fluid fill cap (1).
  3. Fill the transmission to the proper level with the correct fluid. Refer to Transmission Fluid Level and Condition Check , and Approximate Fluid Capacities (6T40/45/50) .
  4. Install the fluid fill cap (1).
