Transmission Brace Replacement

WARNING: This page is about a different variant/trim than selected.

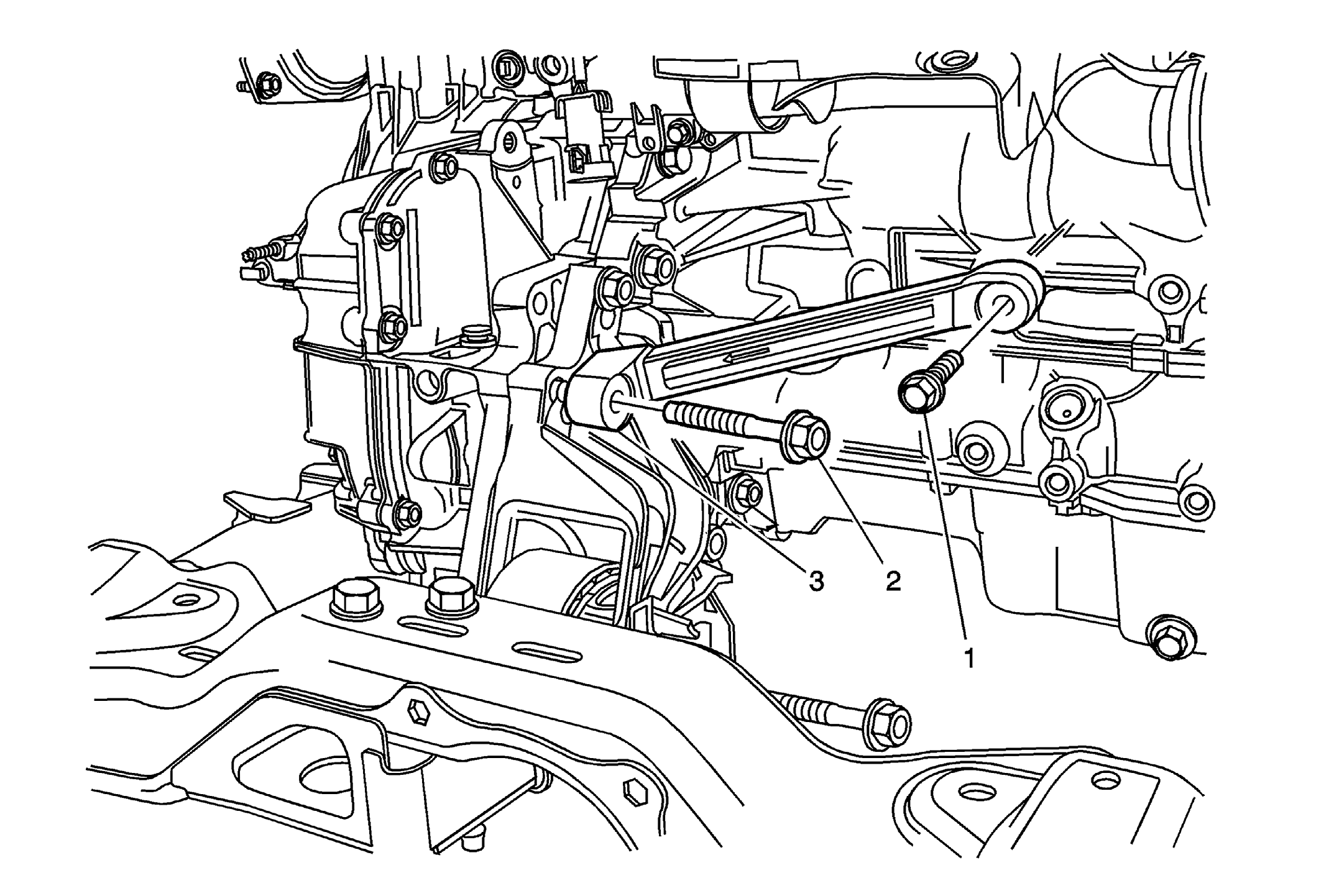

Fig 1: Transmission Brace & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Support the transaxle with a transaxle jack.
1	Rear Transaxle Brace Bolt CAUTION: Refer to Fastener Caution . Tighten 50 N.m (37 lb ft)
2	Rear Transaxle Brace Bolt Tighten 100 N.m (74 lb ft)
3	Rear Transaxle Brace
