Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the manual shaft and position switch assembly. Refer to Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal .

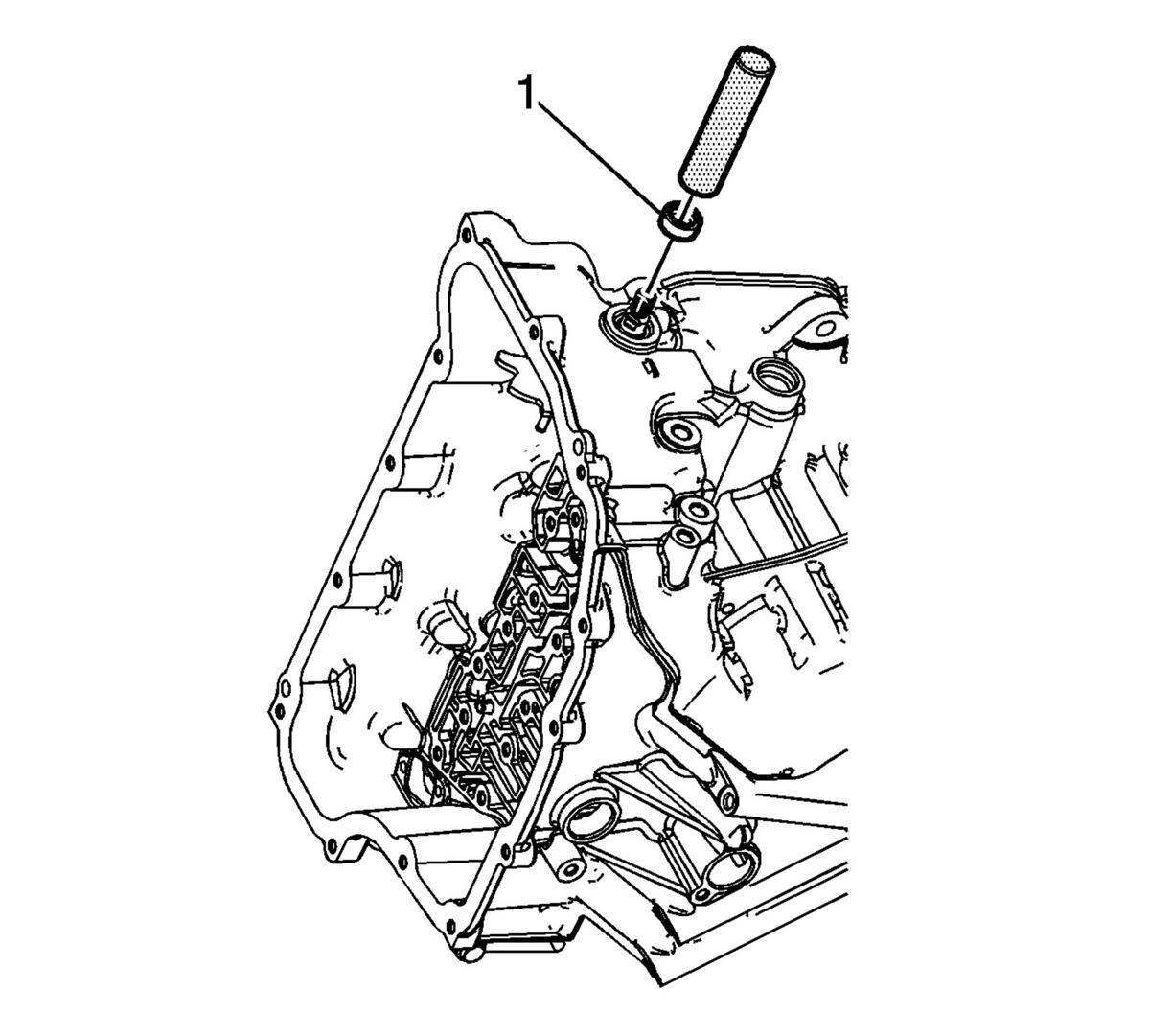

    2. Fig 1: Manual Shaft Seal Installation Tool
    GM2079287Courtesy of GENERAL MOTORS COMPANY
  2. Install the manual shaft seal (1) using DT-46626  installer.
