Secondary Air Injection Check Valve Replacement - Left Side (LUK)

WARNING: This page is about a different variant/trim than selected.

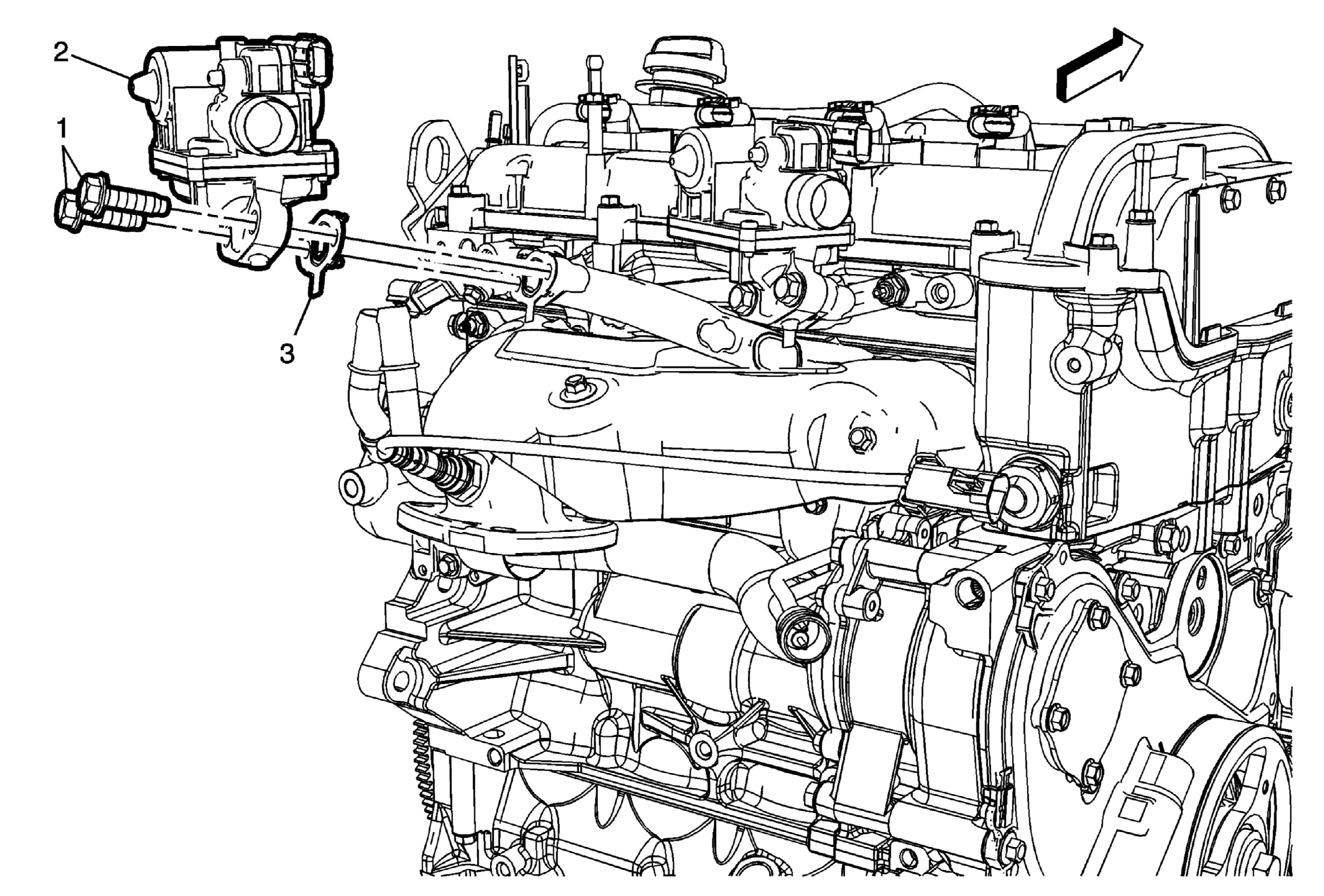

Fig 1: Secondary Air Injection Check Valve - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Disconnect the secondary air injection pipe hose from the secondary air injection check valve.
1	Secondary Air Injection Check Valve Bolt (Qty:2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Secondary Air Injection Check Valve Procedure Disconnect the electrical connector.
3	Secondary Air Injection Check Valve Gasket
