Removal Procedure

WARNING: This page is about a different variant/trim than selected.

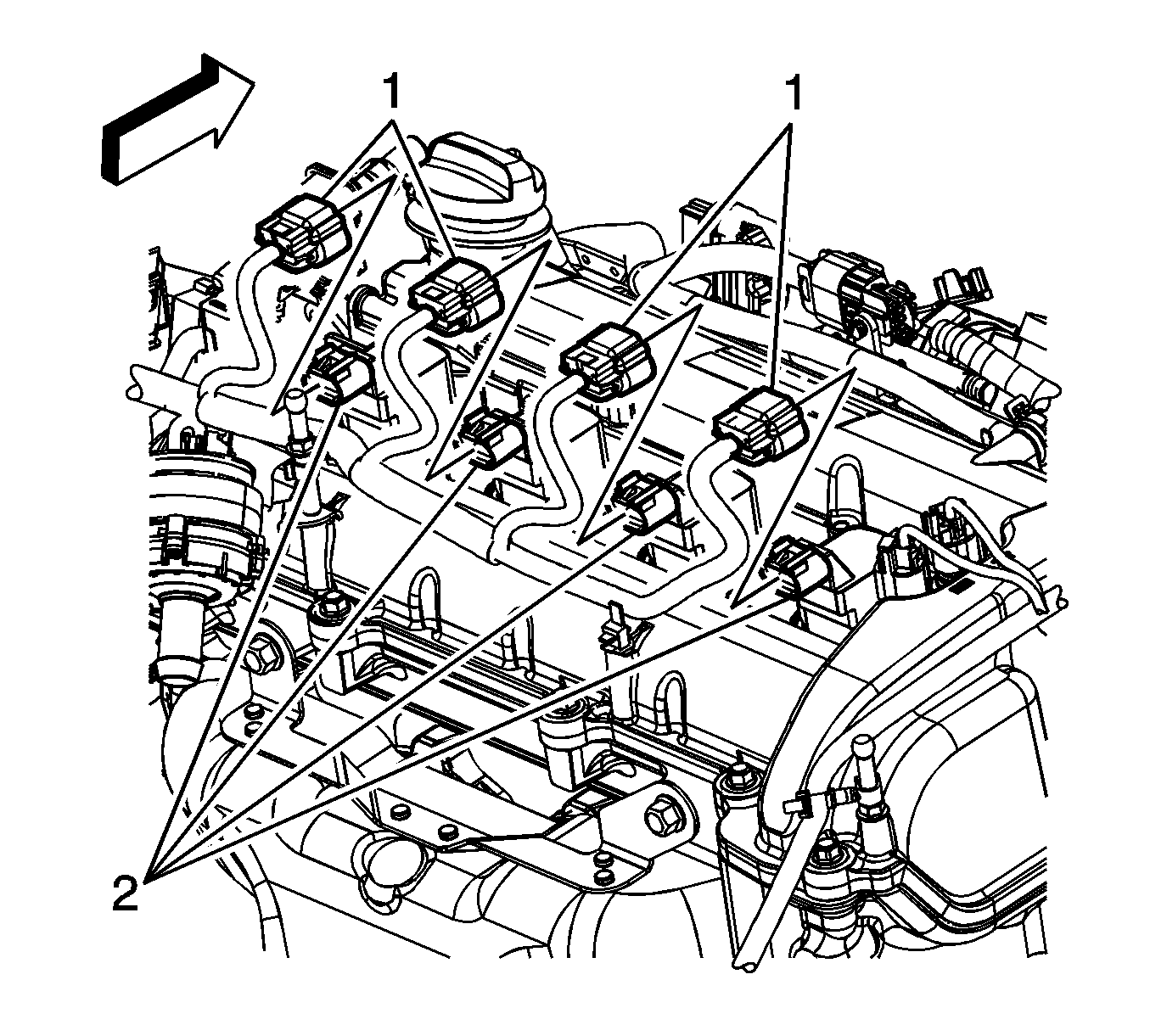

    Fig 1: View Of Ignition Coils & Connectors
    GM1890099Courtesy of GENERAL MOTORS COMPANY
  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
  2. Disconnect the engine wiring harness electrical connectors (1) from the ignition coil(s) (2).

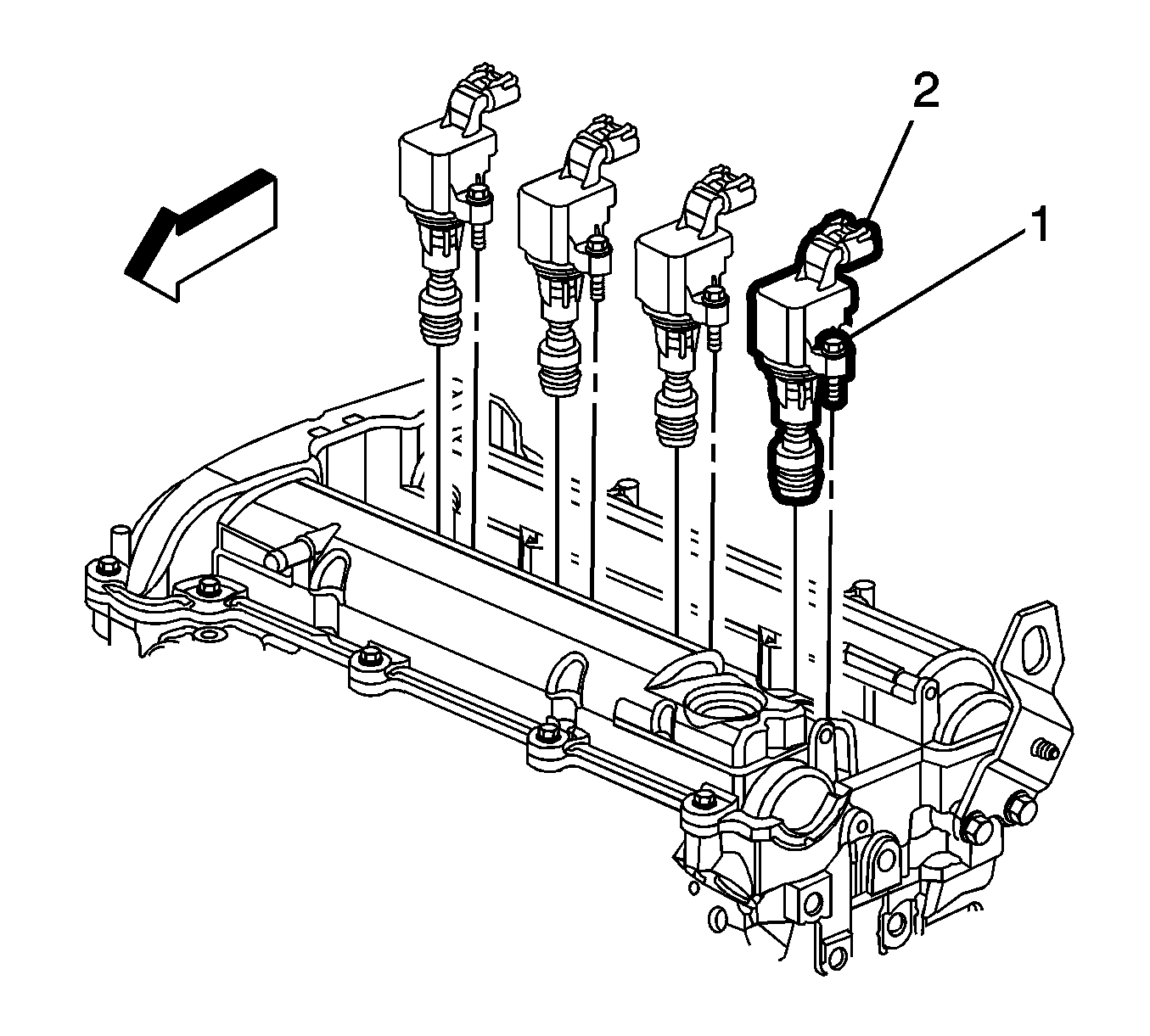

    3. Fig 2: Ignition Coil Bolts
    GM2579088Courtesy of GENERAL MOTORS COMPANY
  3. Remove the ignition coil bolt(s) (1).
  4. Remove the ignition coil(s) (2).
