Fuel Feed Pipe Replacement (Engine)

WARNING: This page is about a different variant/trim than selected.

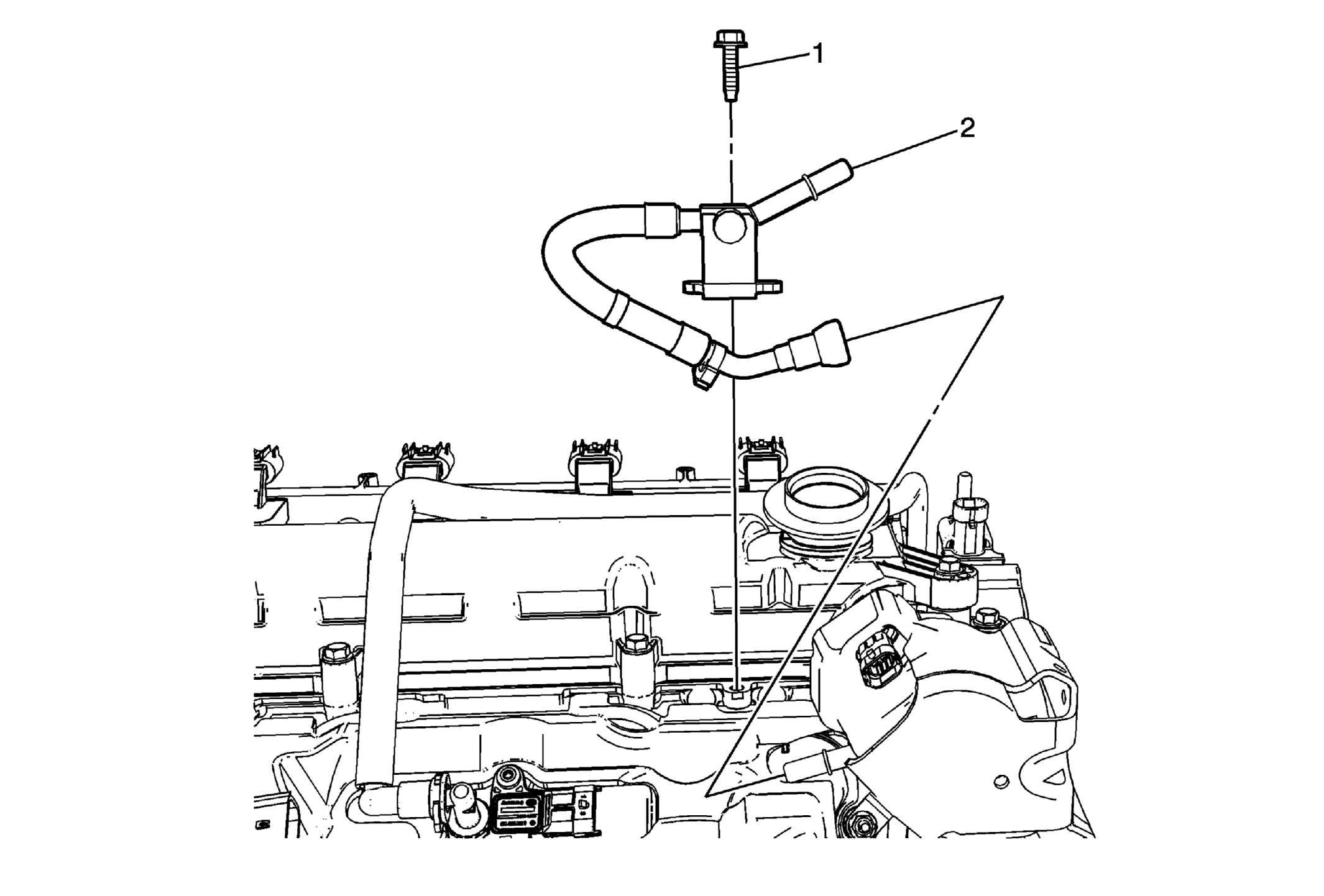

Fig 1: Fuel Feed Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Disconnect the fuel lines. Refer to Metal Collar Quick Connect Fitting Service .
1	Fuel Feed Pipe Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Fuel Feed Pipe

Callout

Component Name

Preliminary Procedures

Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
Disconnect the fuel lines. Refer to Metal Collar Quick Connect Fitting Service .

Fuel Feed Pipe Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Fuel Feed Pipe
