Installation Procedure
WARNING: This page is about a different variant/trim than selected.

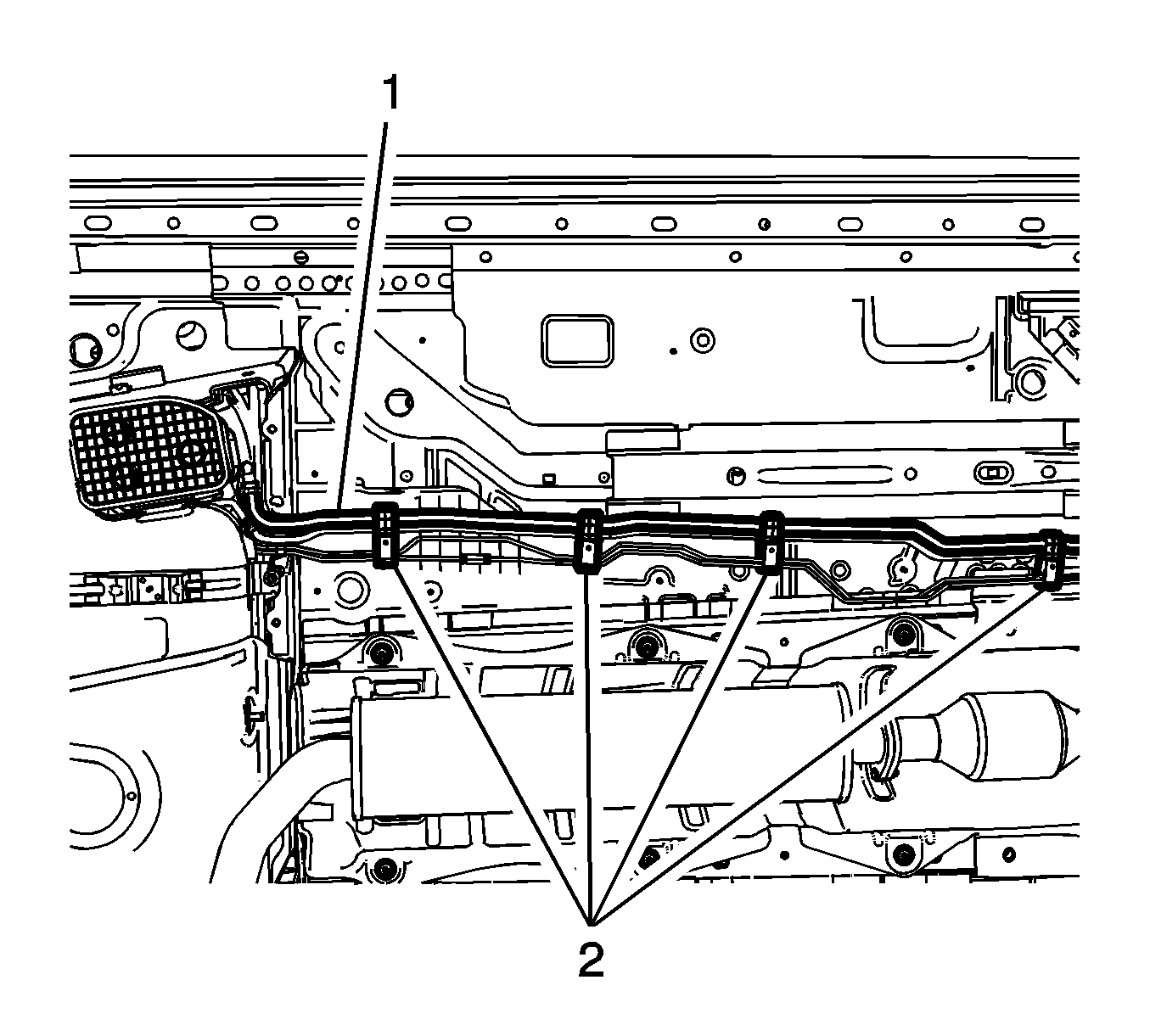

- Install the fuel feed pipe (1) to the brake bundle retainers (2).
- Connect the chassis fuel feed pipe (1) to the fuel tank fuel feed pipe . Refer to Plastic Collar Quick Connect Fitting Service .
- Connect the fuel pressure sensor connector.
- Lower the vehicle.

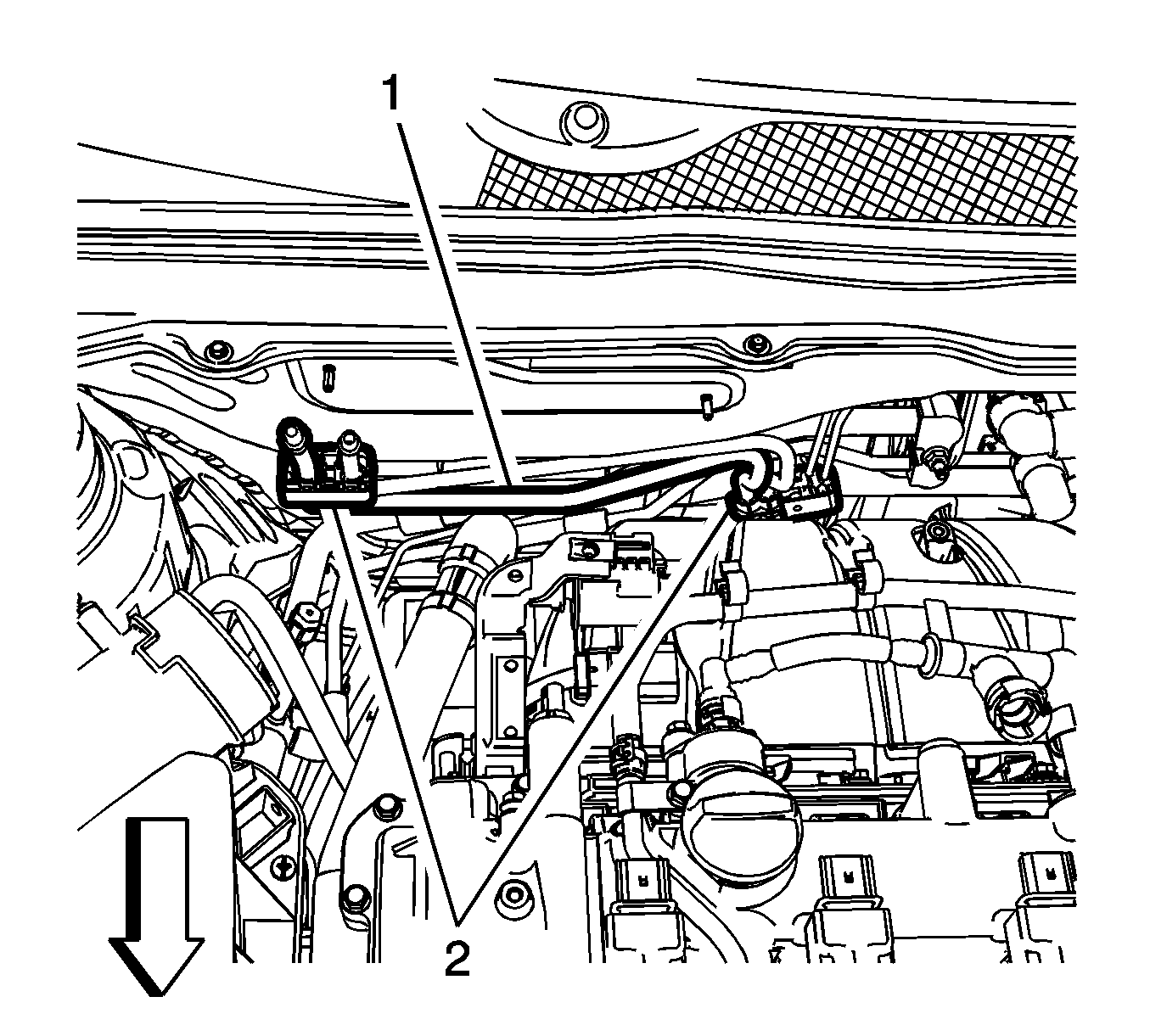

- Install the fuel feed pipe (1) to the retainers (2).
- Connect the engine fuel feed front pipe to the chassis fuel feed pipe. Refer to Plastic Collar Quick Connect Fitting Service .
- Turn the ignition to the on position and check for fuel leaks.
